Taurus V6-232 3.8L
>>
Repair and Diagnosis
>>
Cruise Control
>>
Locations
>>
Connector Locations

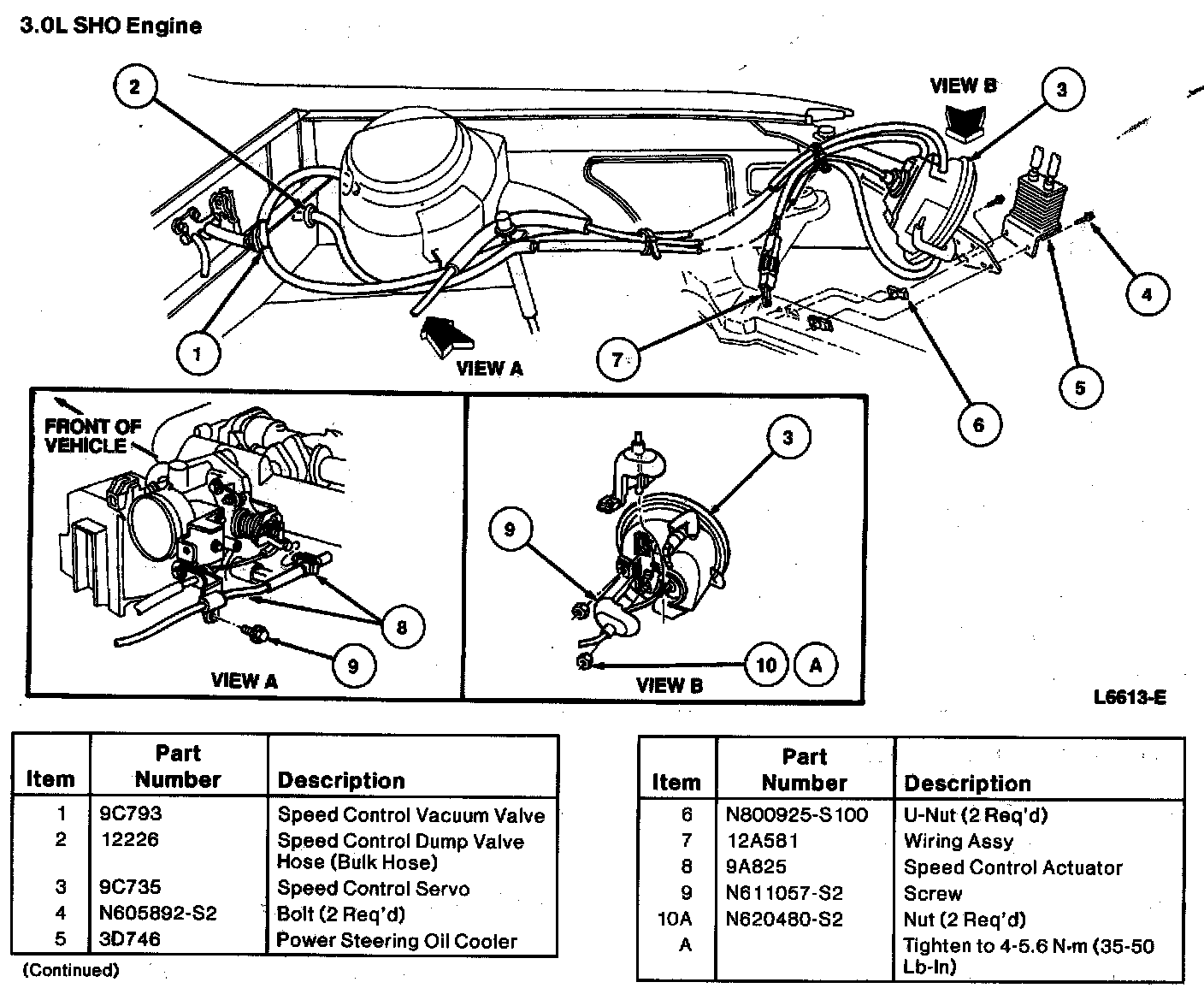

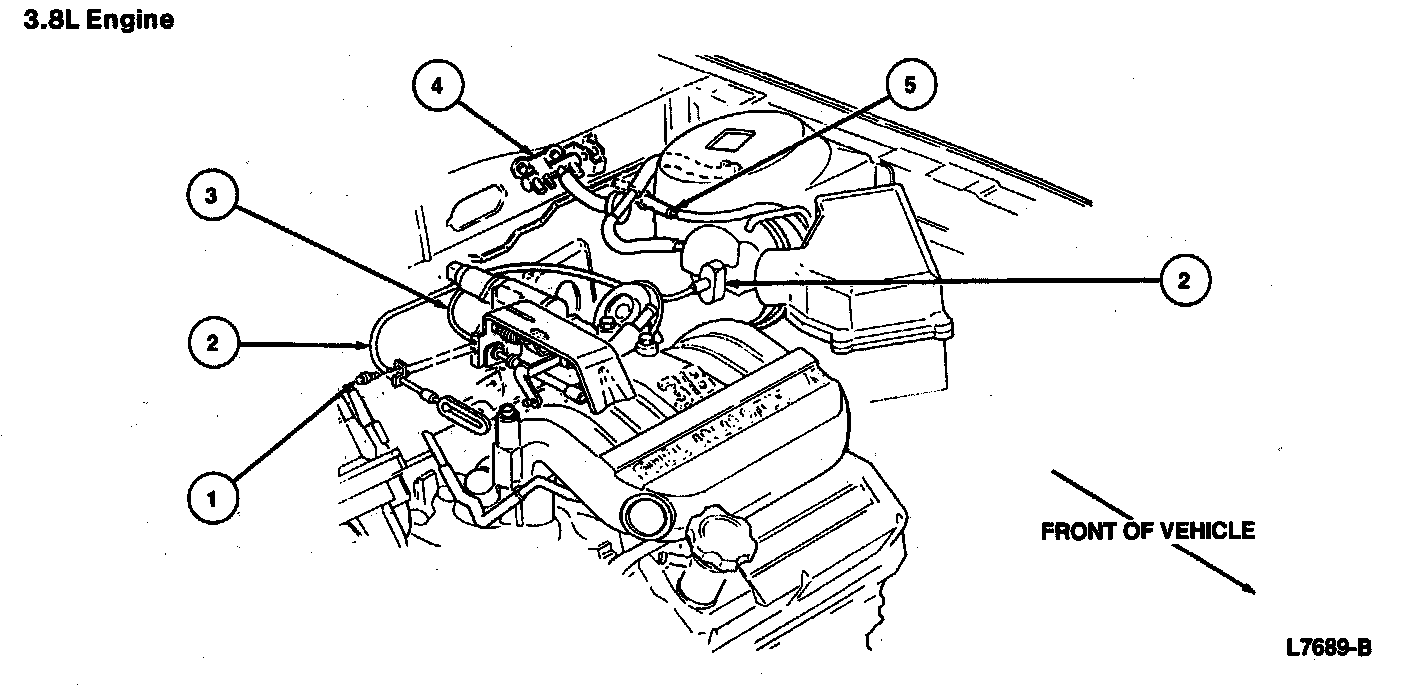

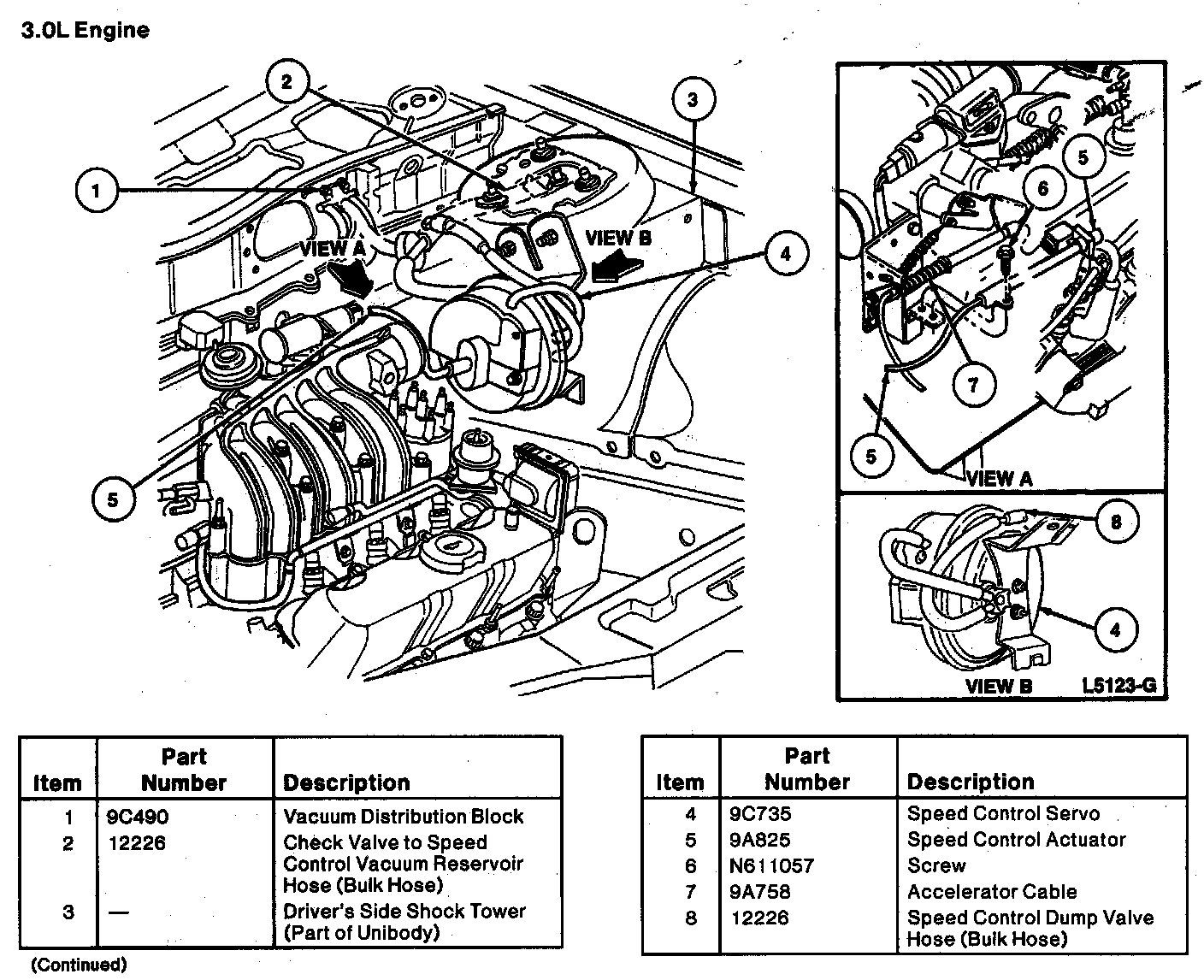

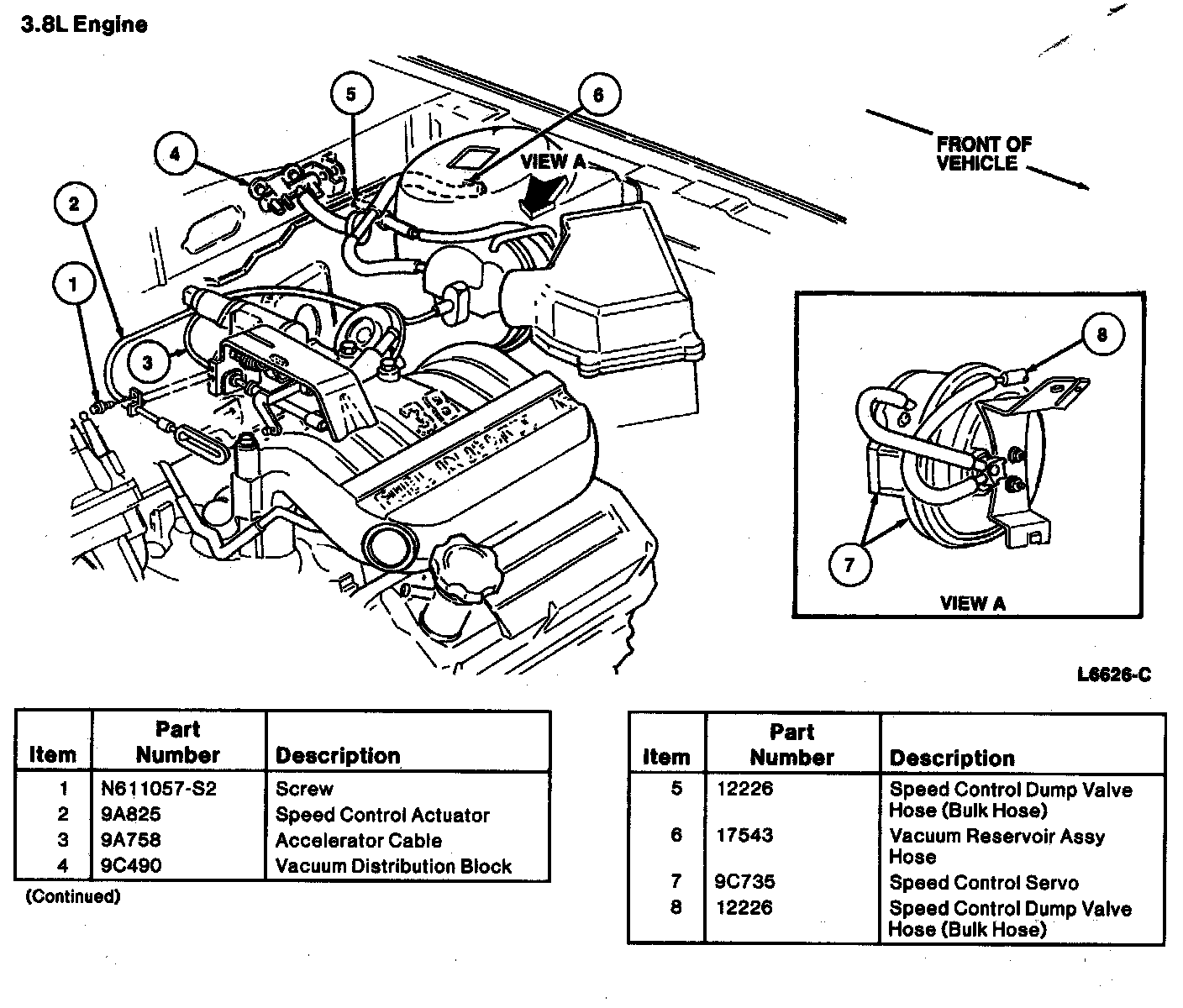

Connector Locations

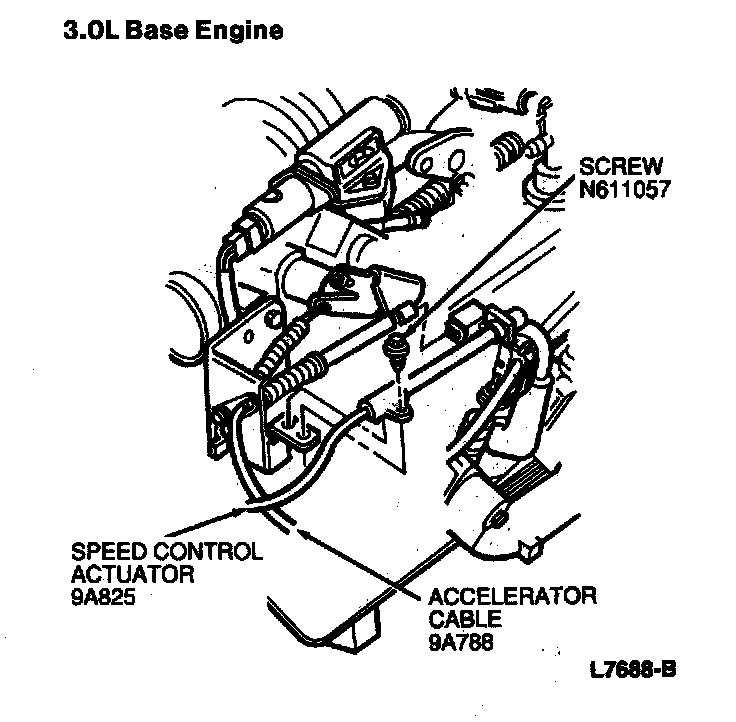

Actuator Cable

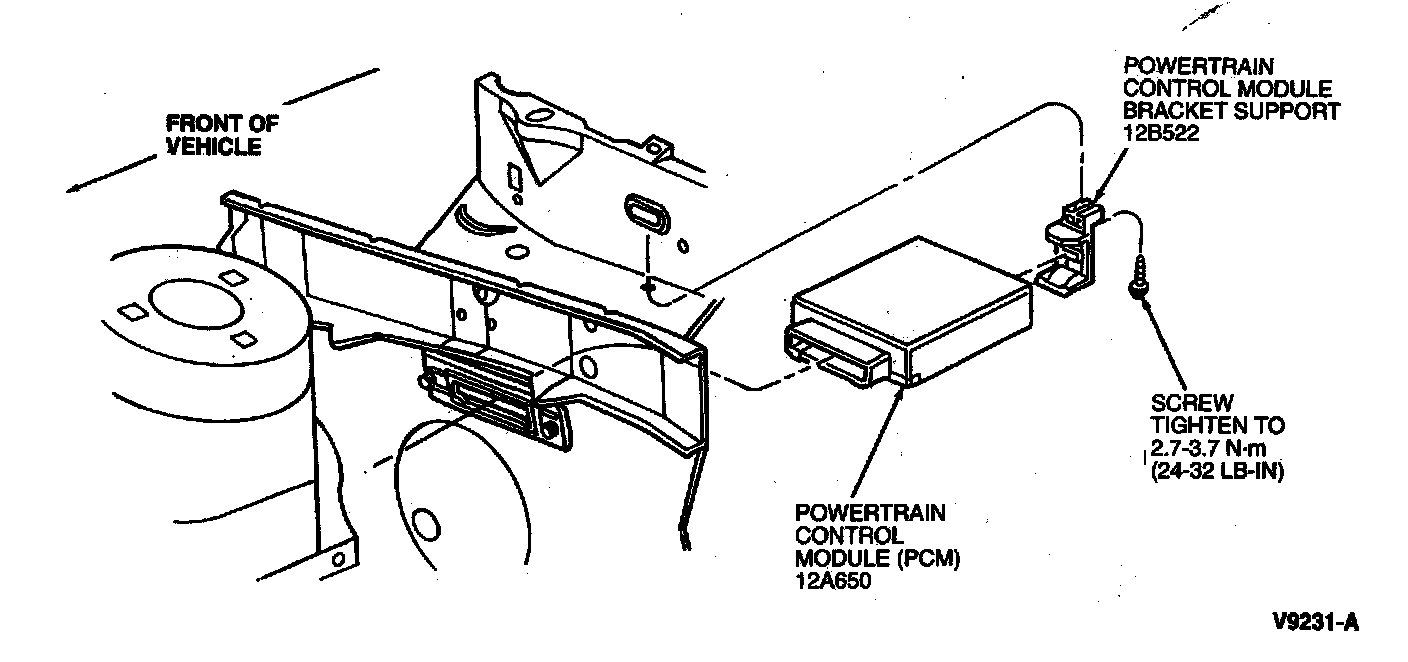

Powertrain control module:
Speed Control Dump Valve
Speed Control Amplifier:
