With Federal Emissions

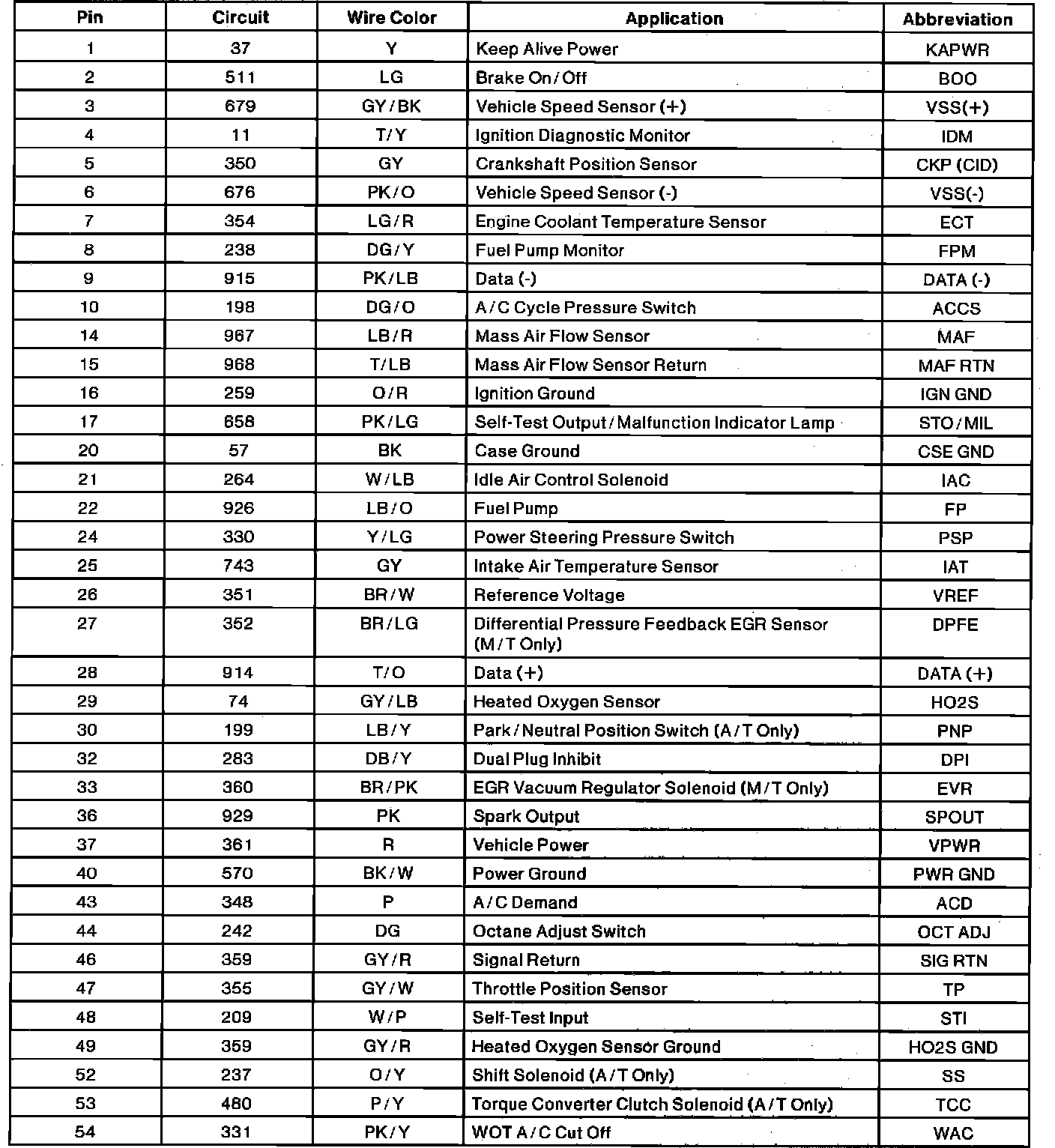

Powertrain Control Module Connector Pin Useage:



Powertrain Control Module Connector Pin Useage:
