Probe V6-153 2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>

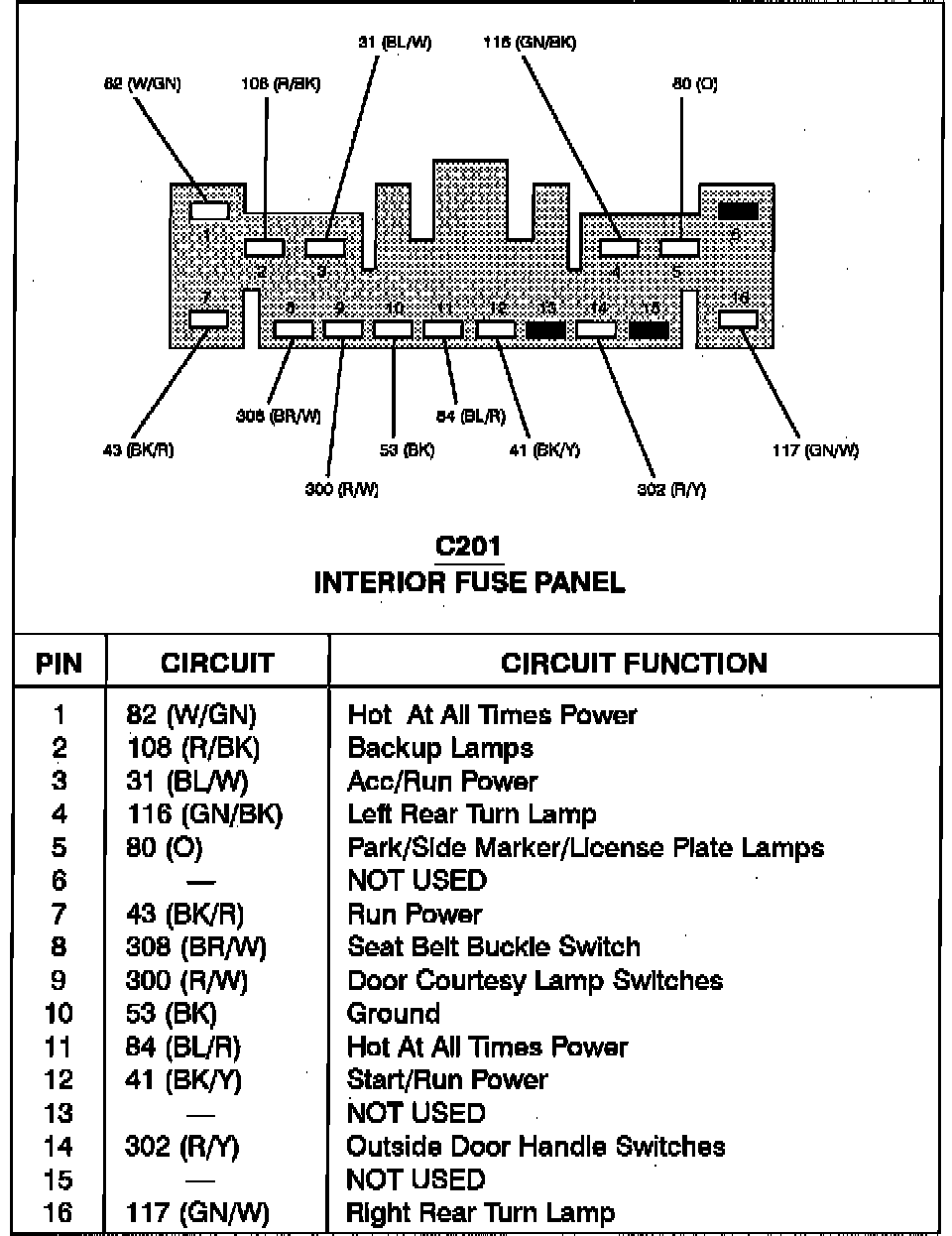

C201
C201
Interior Fuse Panel:
