Home >> Ford >> 1994 >> Mustang V8-302 5.0L HO >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Hall Effect Sensor >> Locations

Hall Effect Sensor: Locations

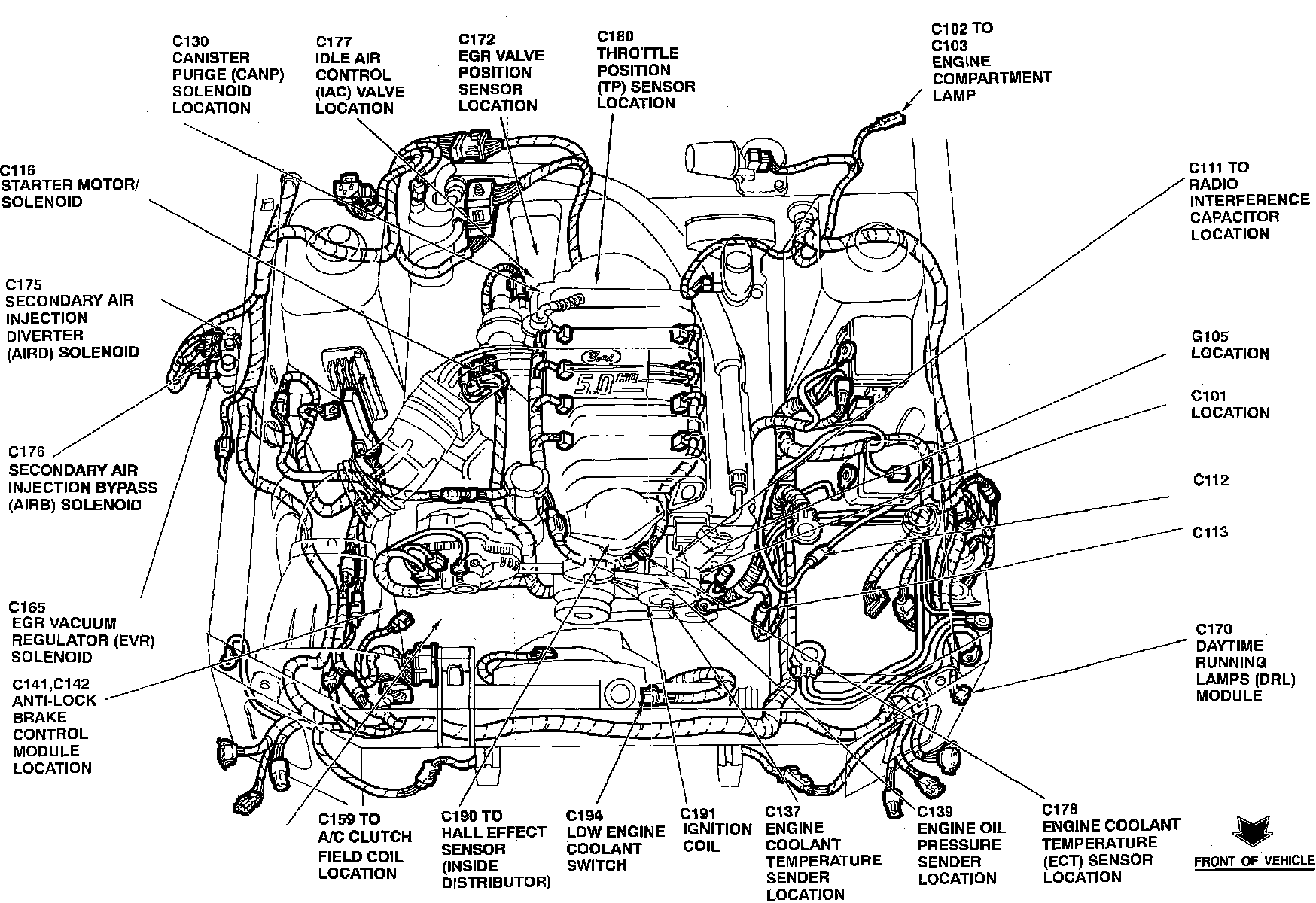

Component Locations:





The Hall Effect Sensor is located on the center front of the engine, inside the distributor.
