Data Link Connector: Locations

Component Locations:

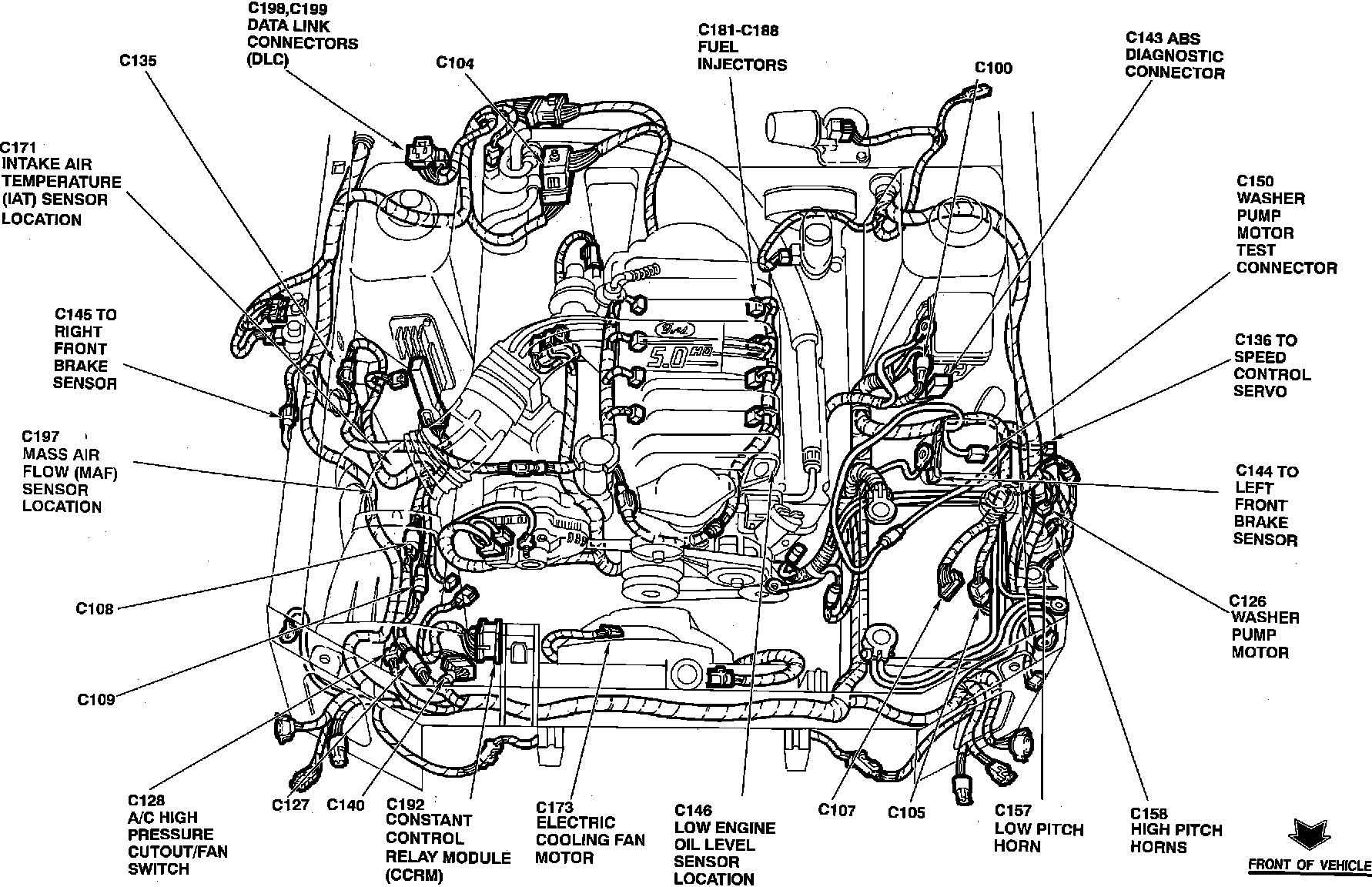

UNDERHOOD VIEW
Right rear of engine compartment, mounted on rear of strut tower.
