Engine Control Module
Engine Control Module

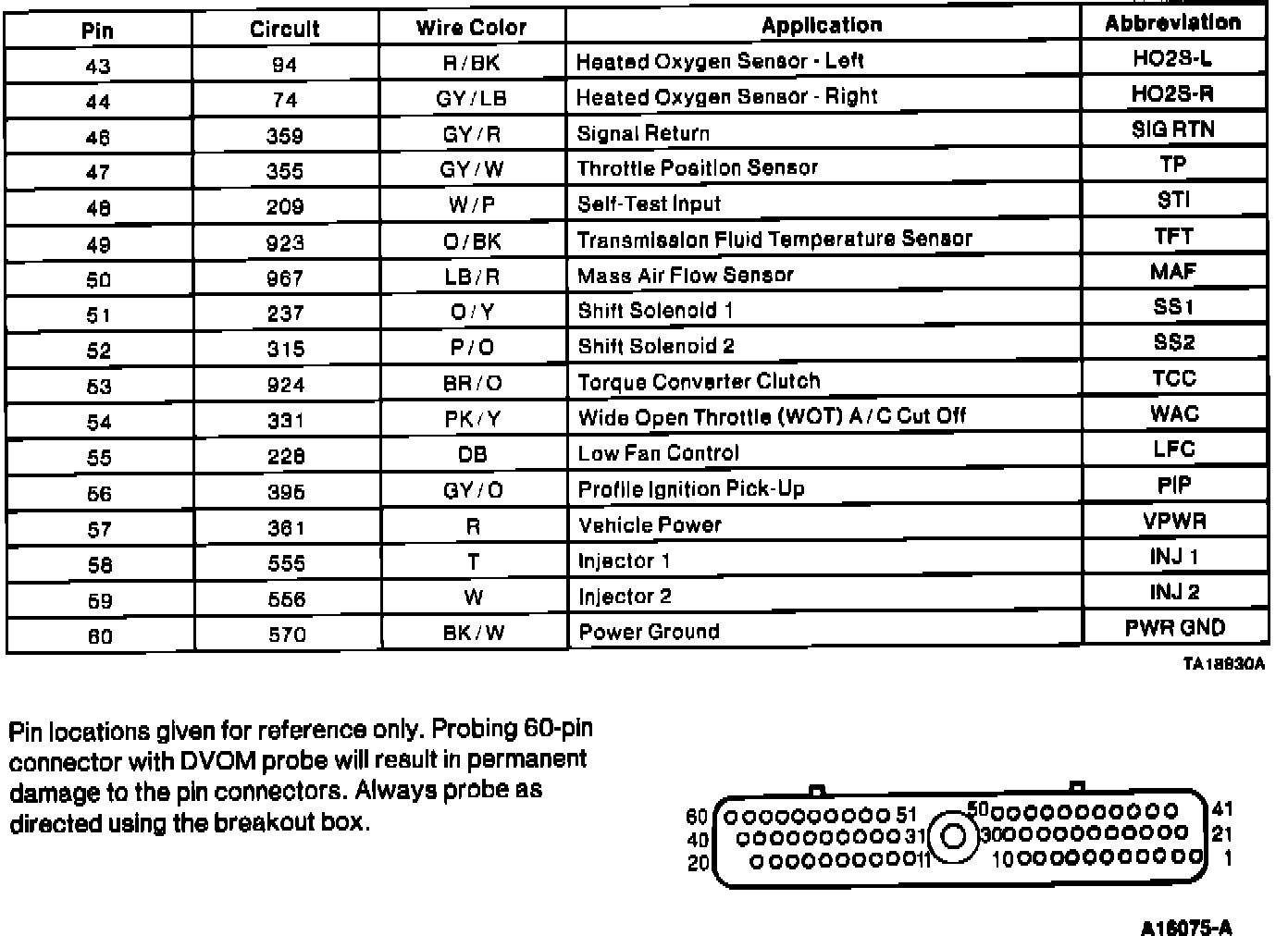

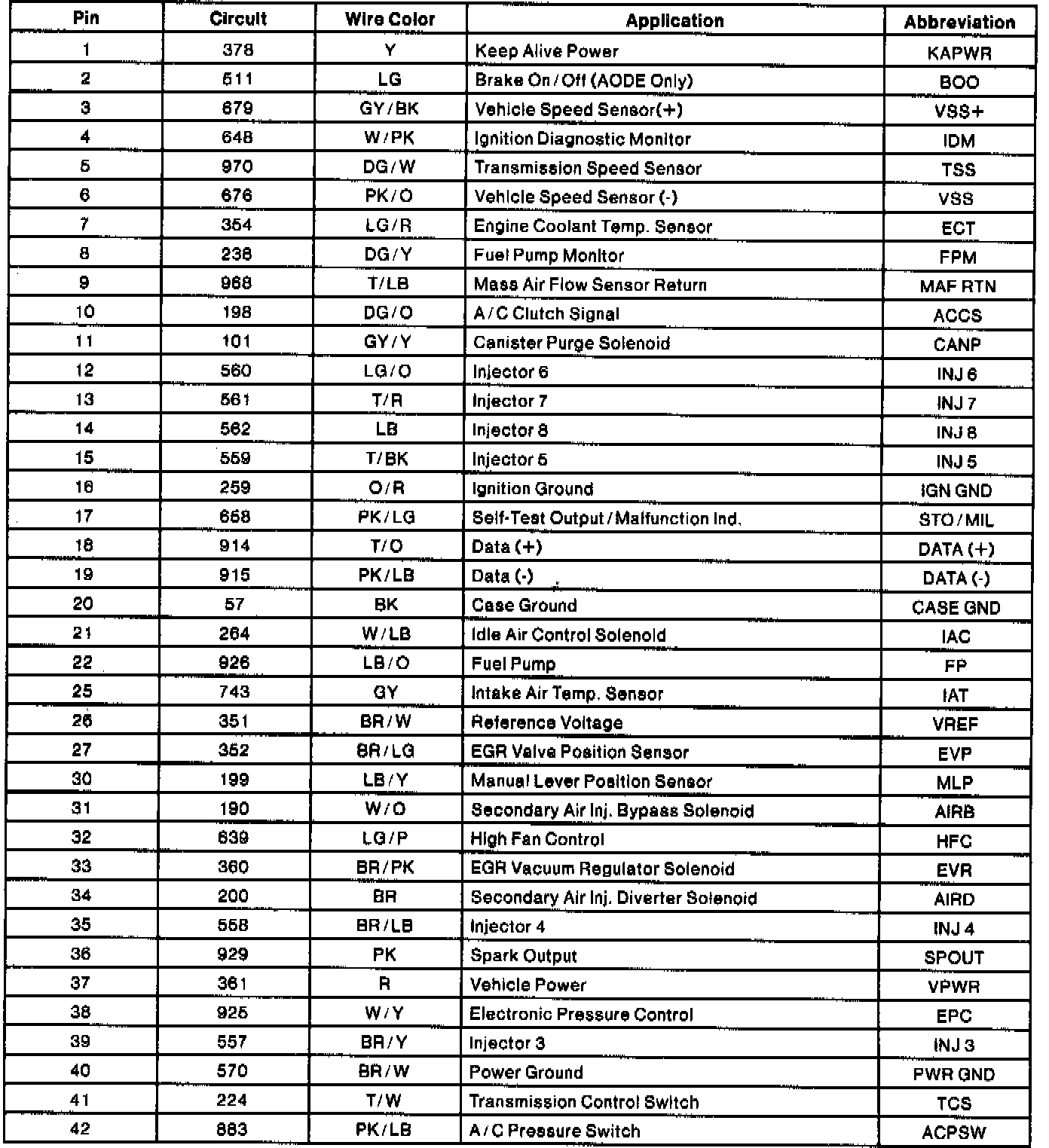

Powertrain Control Module (PCM) Connector Pin Usage:
PINOUT IDENTIFICATION
Powertrain Control Module (PCM) Connector Pin Usage:
CONNECTOR VIEW
