Home >> Ford >> 1994 >> Mustang V6-232 3.8L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Testing and Inspection >> Master Window/Door Lock Control Switch >> Convertible

Convertible

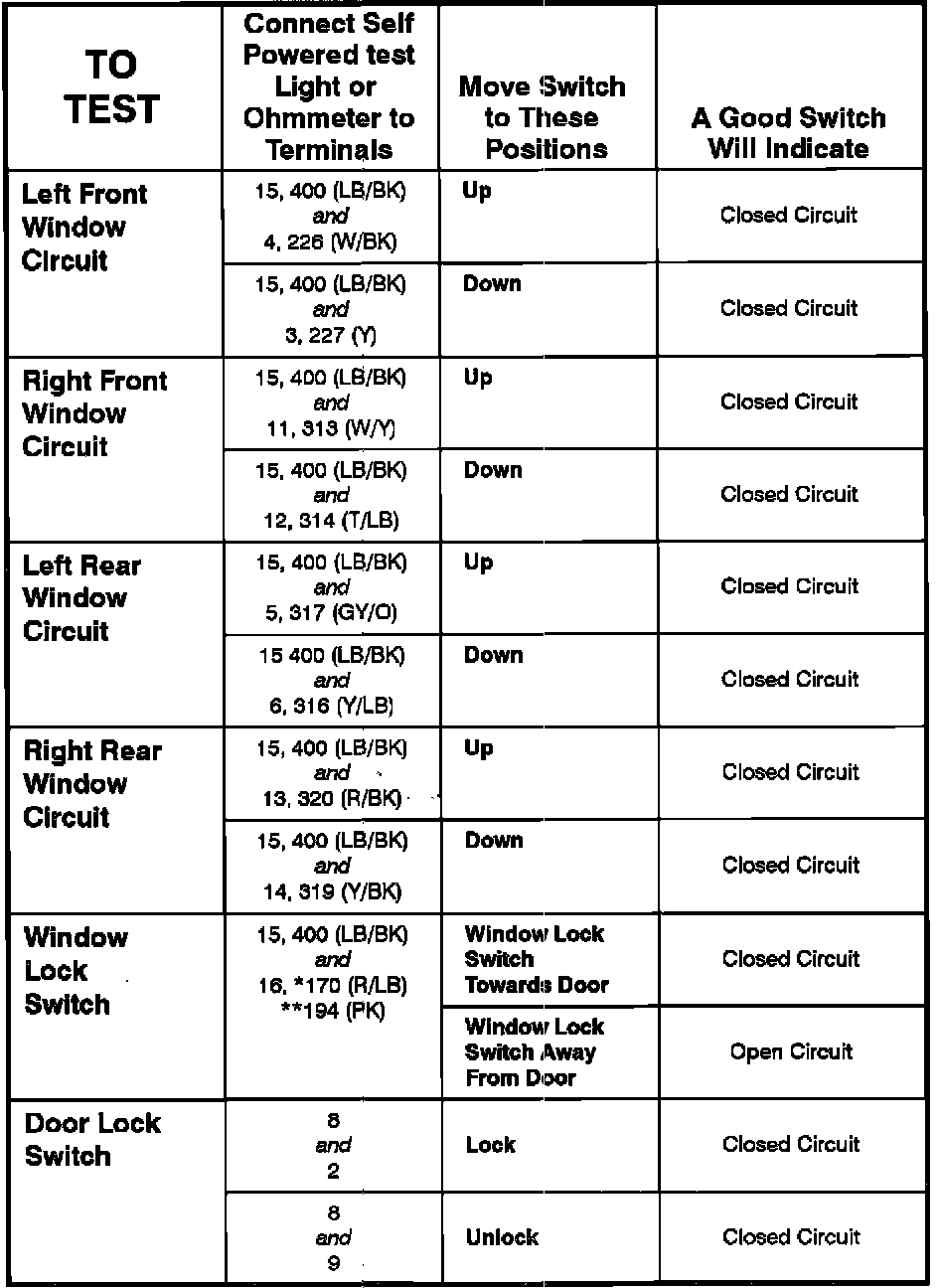

Component Testing Procedure:




Component Testing Procedure:




Terminal ID:

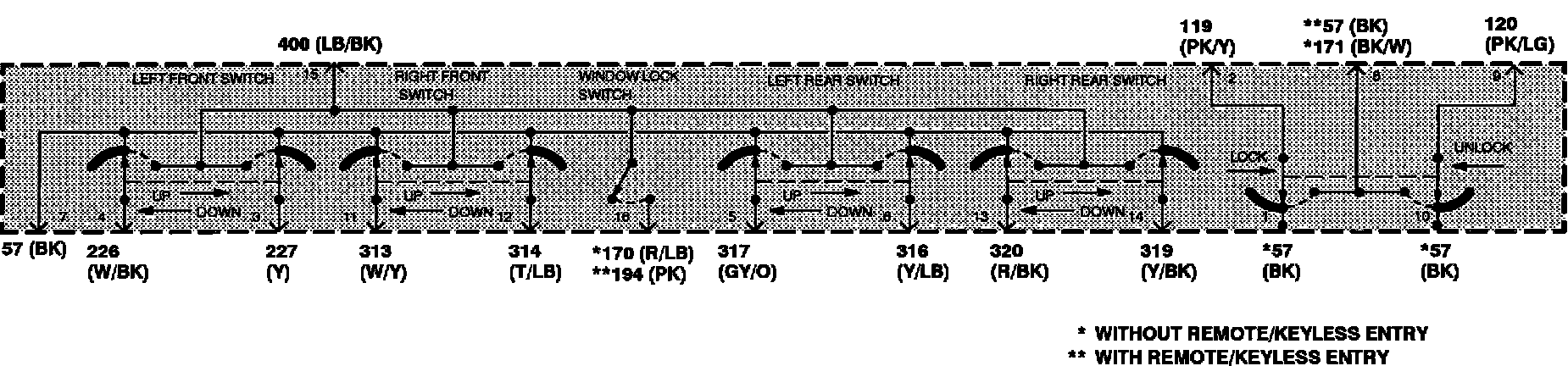

Schematic:
