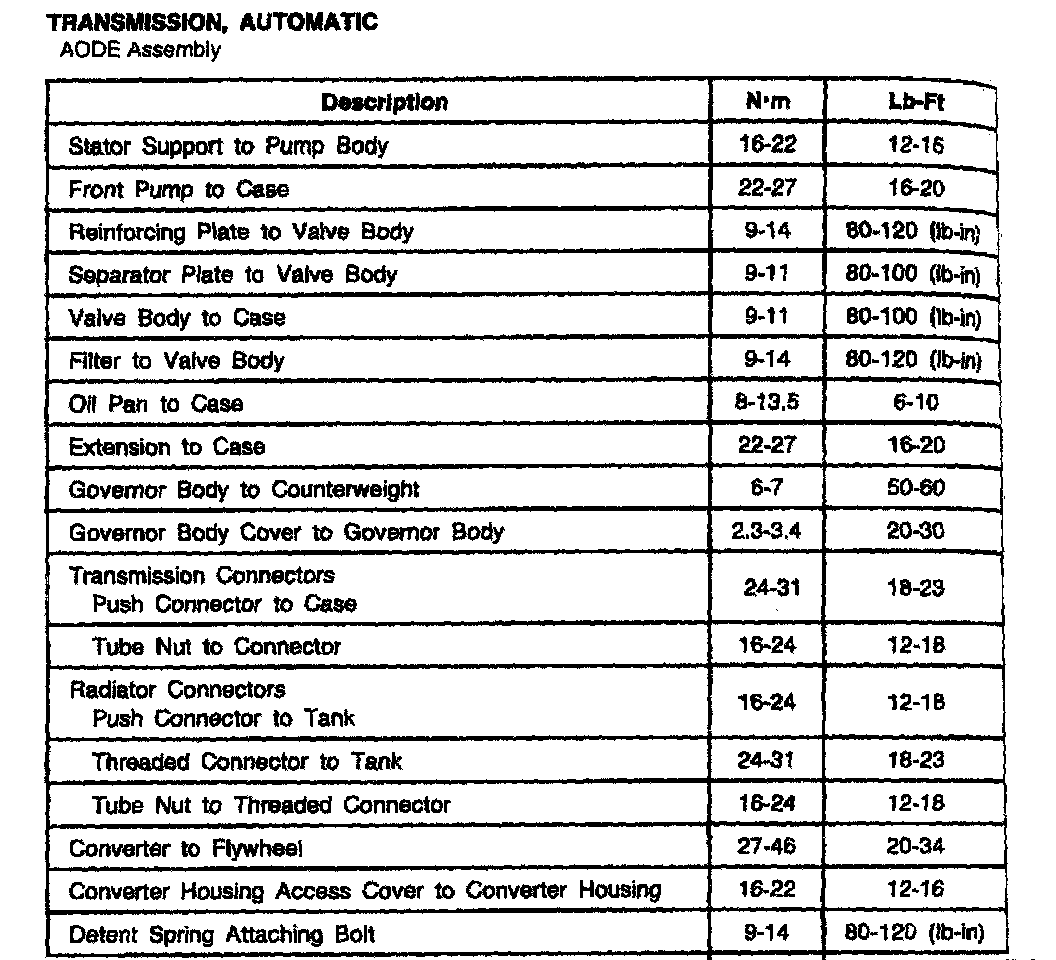

A/T Torque Data

AODE 4-spd A/T, Cooler Line Fittings:

AODE 4-spd A/T, Transmission Connectors:

AODE 4-spd A/T, Transmission Assembly:
