Home >> Ford >> 1994 >> Mustang V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> Master Window/Door Lock Switch >> Convertible

Convertible

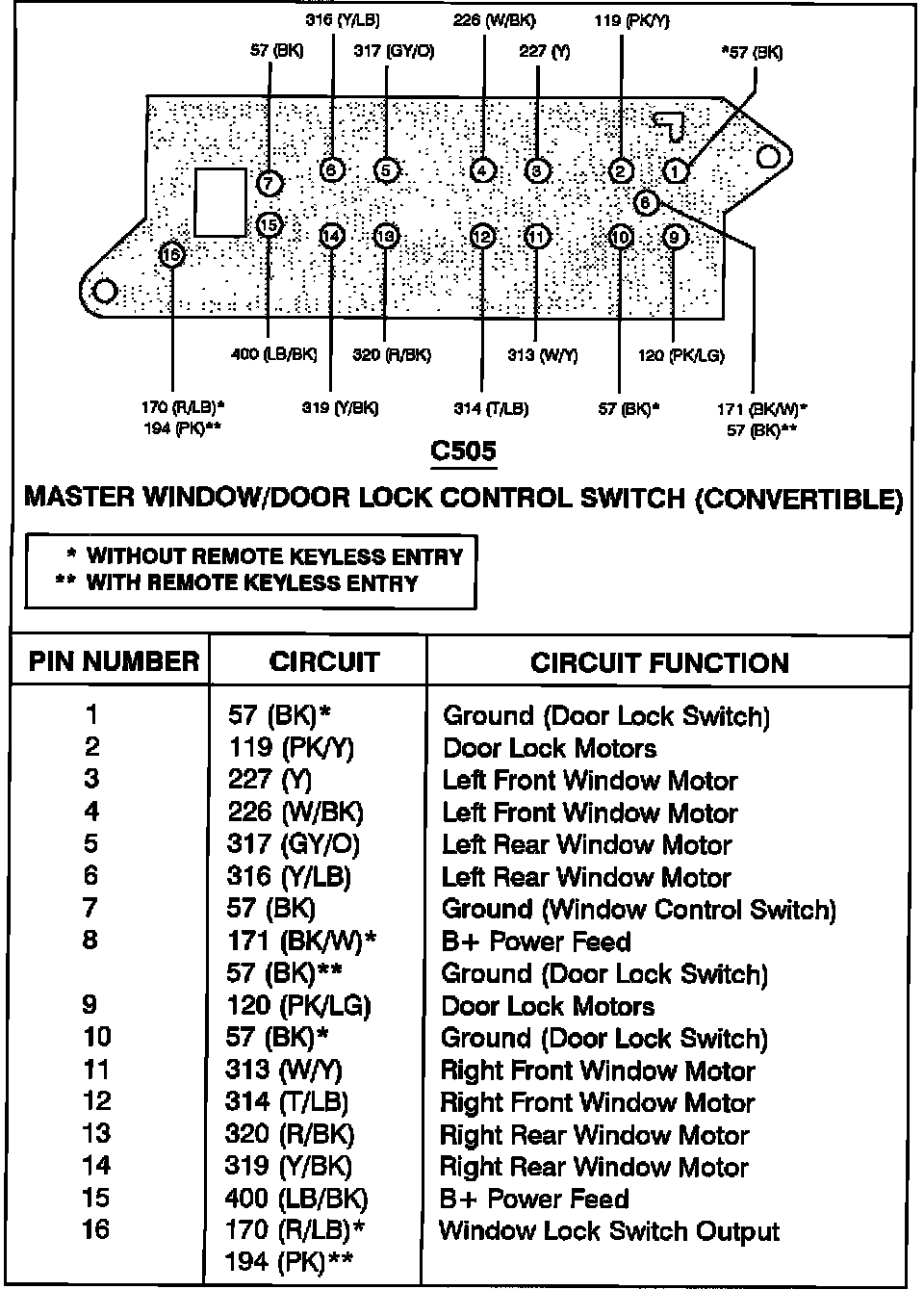

Master Window/Door Lock Control Switch (Convertible):
