Home >> Ford >> 1994 >> F 250 4WD Pickup V8-7.3L DSL >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

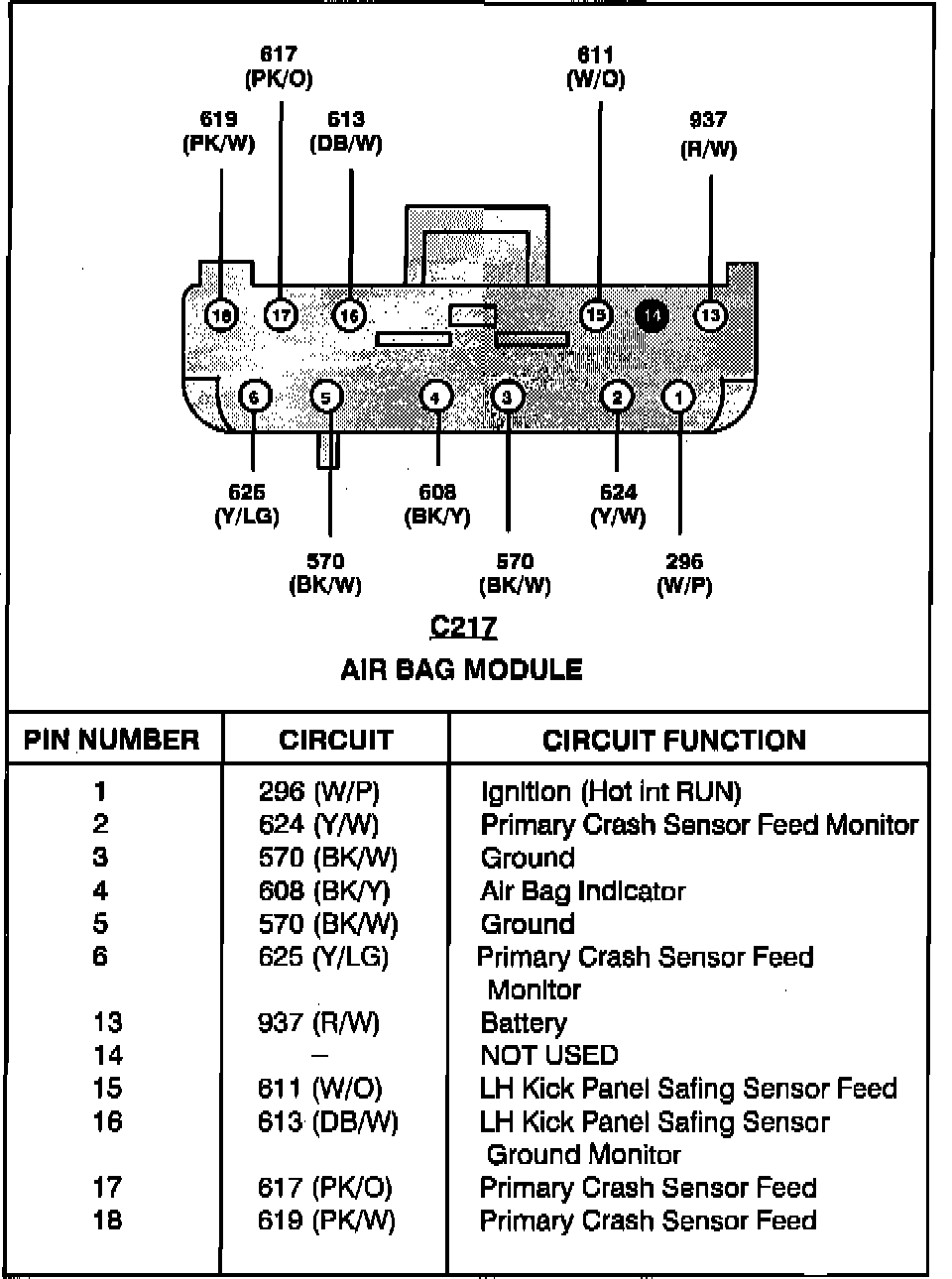

Air Bag Control Module

Air Bag Module:




Air Bag Module:
