Ford
>>
1994
>>
Escort L4-116 1.9L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
Engine Control Module

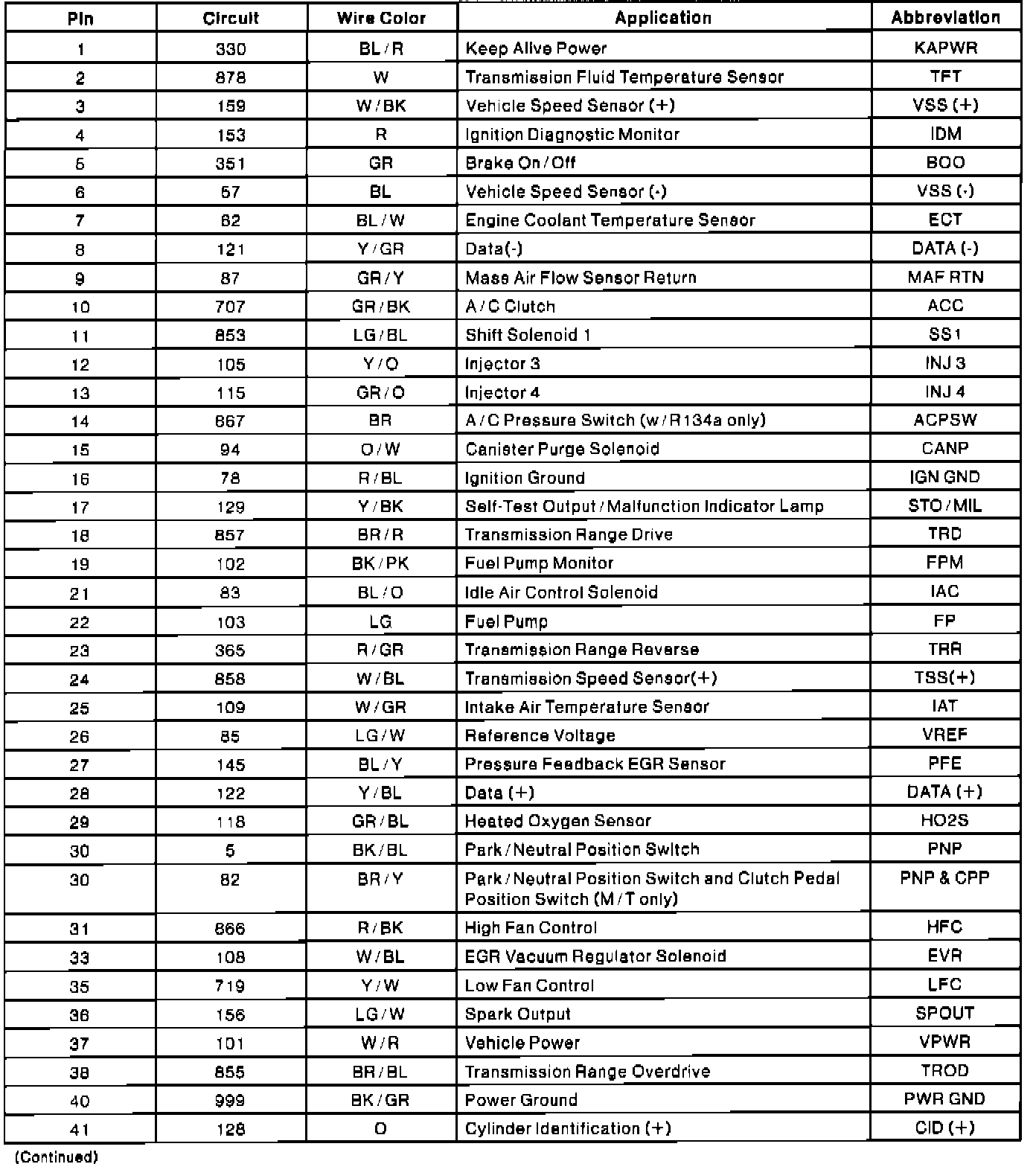

Powertrain Control Module (PCM) Connector Pin Usage:
PINOUT IDENTIFICATION

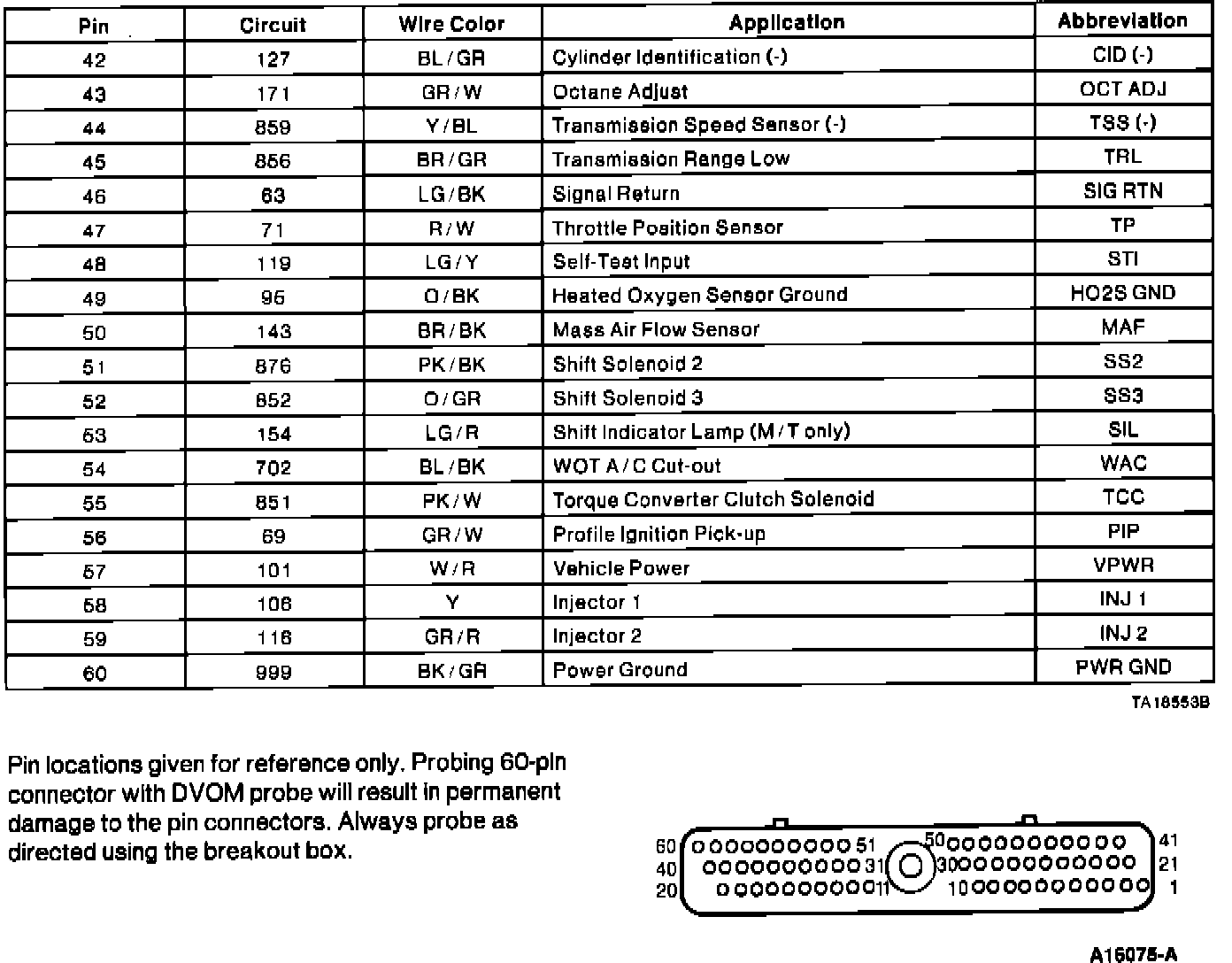

Powertrain Control Module (PCM) Connector Pin Usage:
CONNECTOR VIEW
