Connector Pin Usage

Schematic

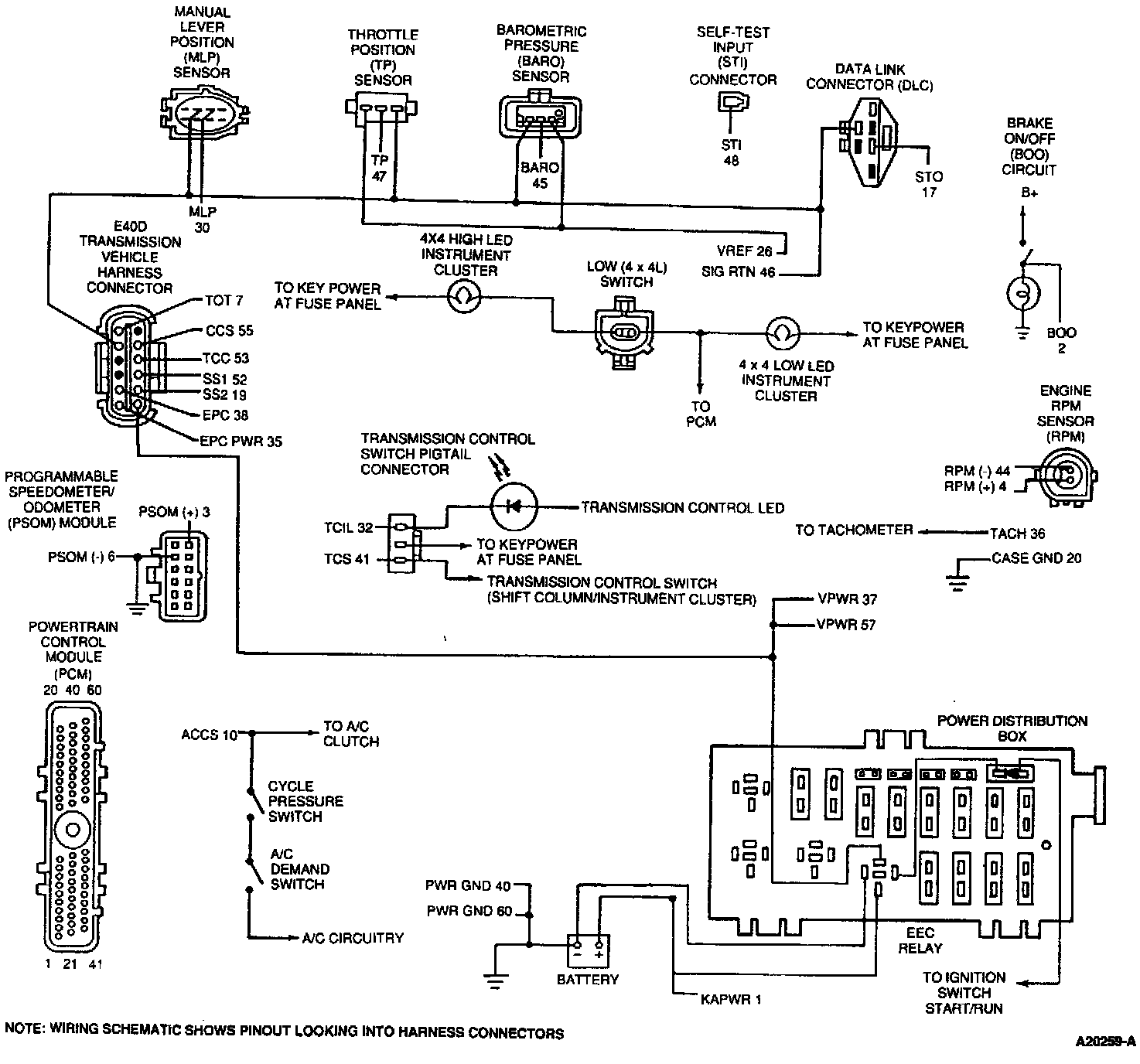

Powertrain Control Module (PCM) Connector Pin Usage (Part 1 Of 2):

Powertrain Control Module (PCM) Connector Pin Usage (Part 1 Of 2)

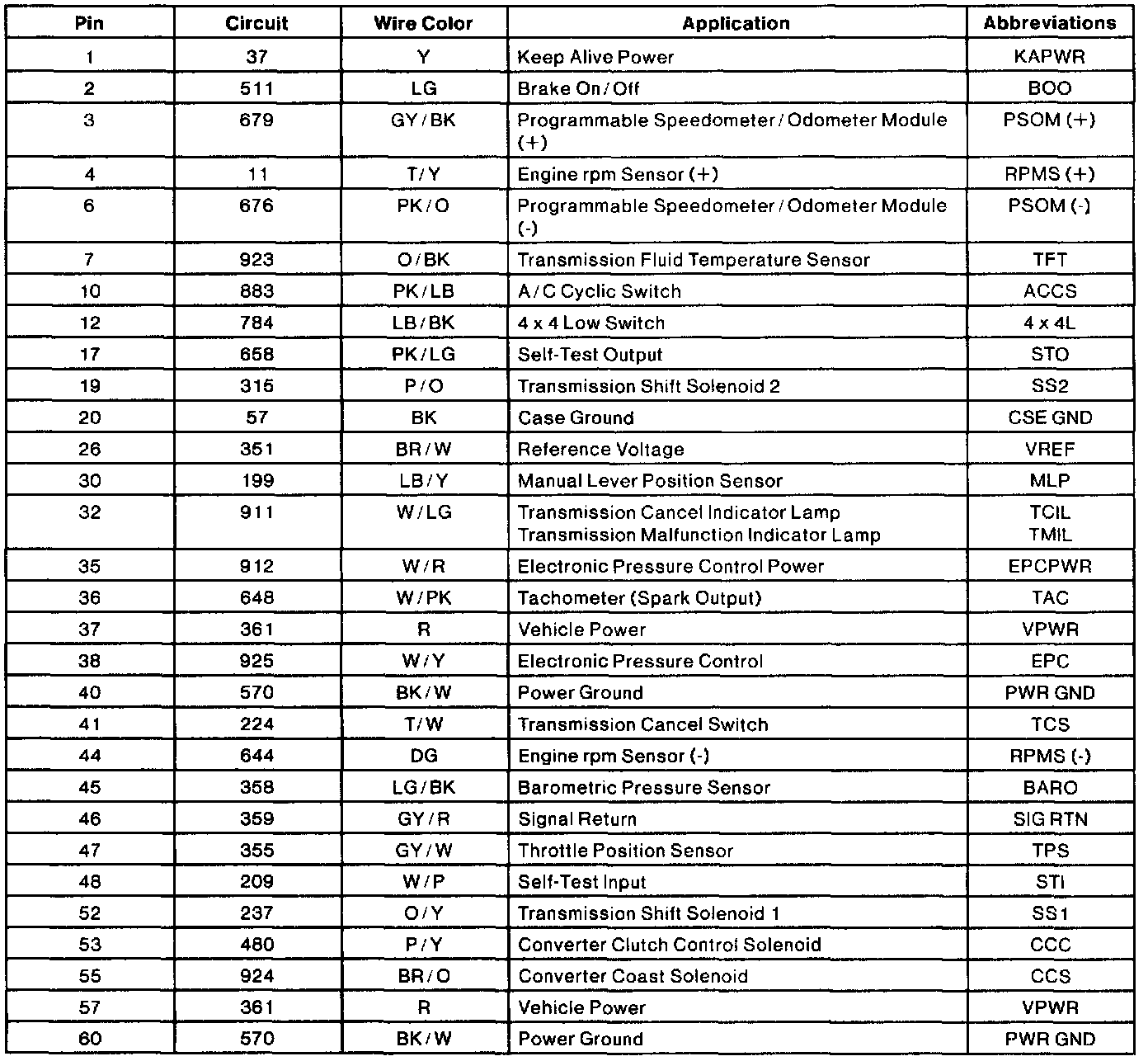

Powertrain Control Module (PCM) Connector Pin Usage (Part 2 Of 2):

Powertrain Control Module (PCM) Connector Pin Usage (Part 2 Of 2)


NOTE: Pin locations given for reference only. Probing 60 pin connector with DVOM probe will result in permanent damage to the pin connectors. Always probe as directed using the breakout box.
