Home >> Ford >> 1993 >> Thunderbird V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Suspension Control Module

Suspension Control Module

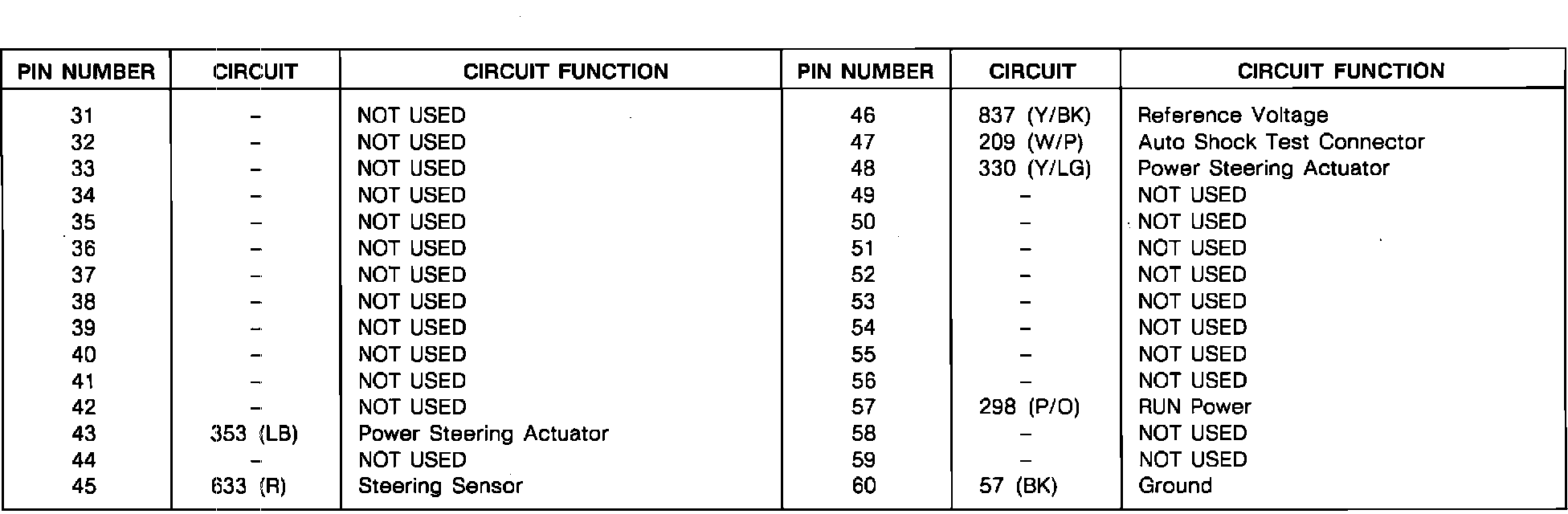

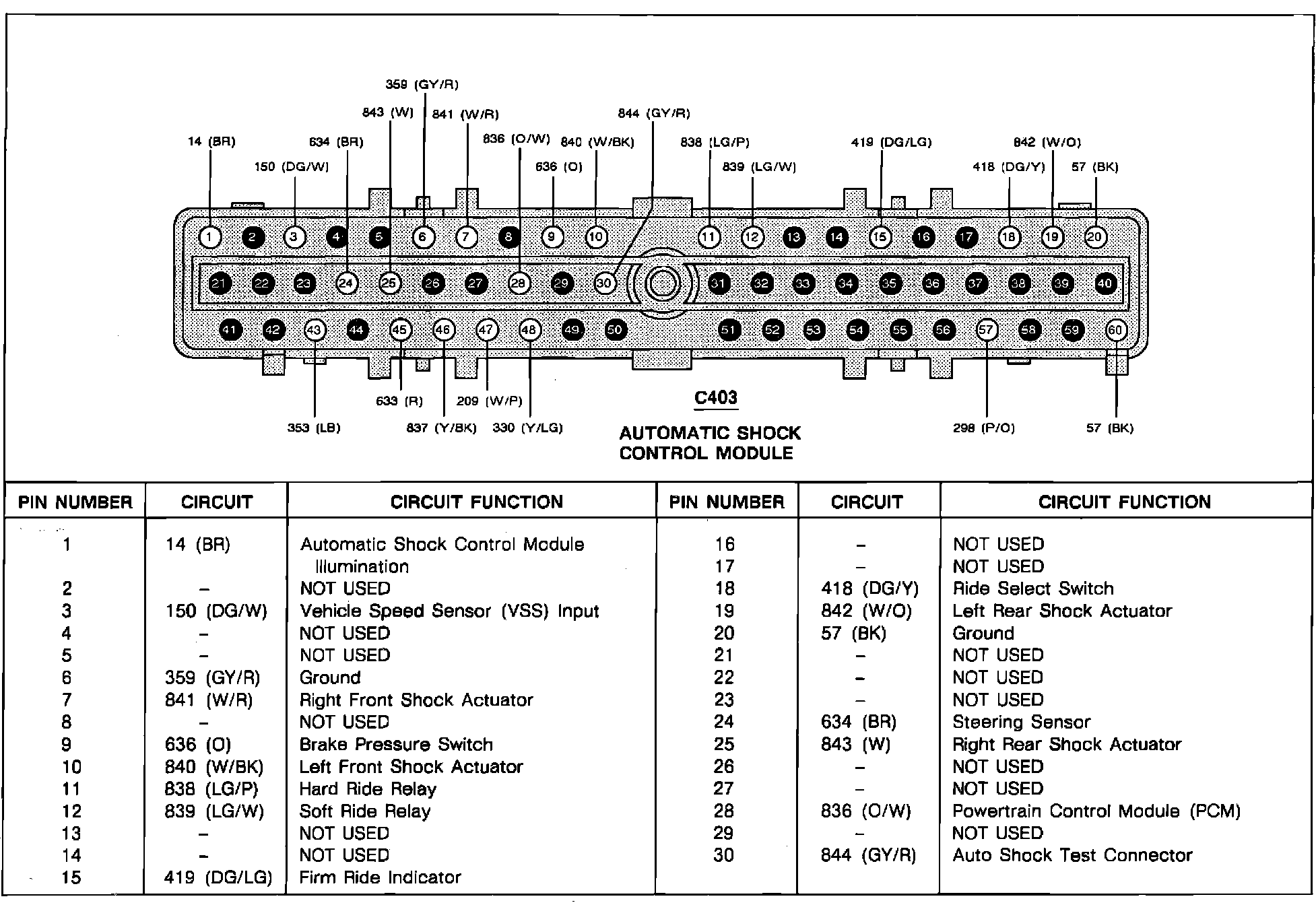

Automatic Shock Control Module:





Automatic Shock Control Module:
