Electronic Brake Control Module
Electronic Brake Control Module

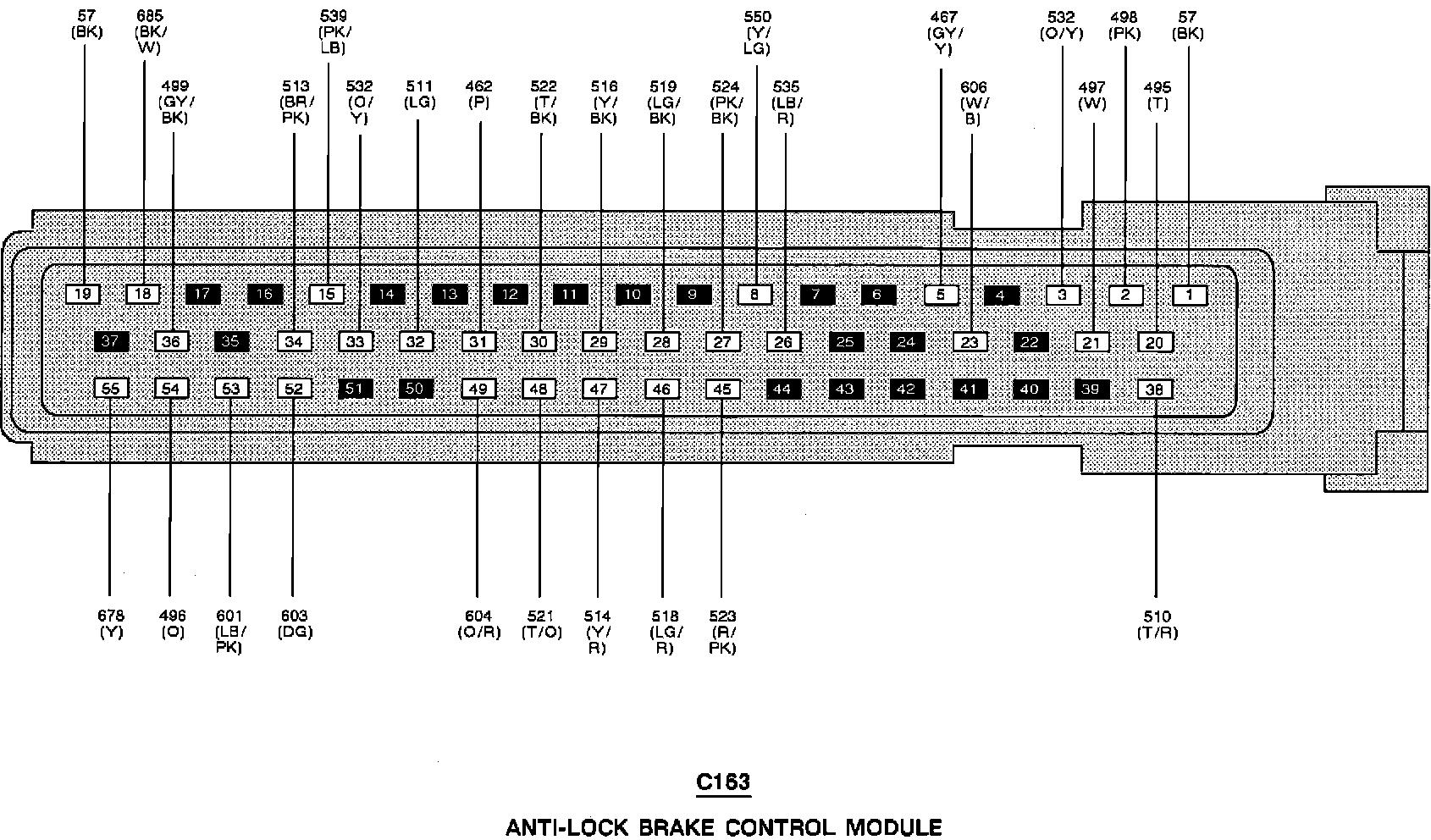

Anti-Lock Brake Control Module:
CONNECTOR VIEW

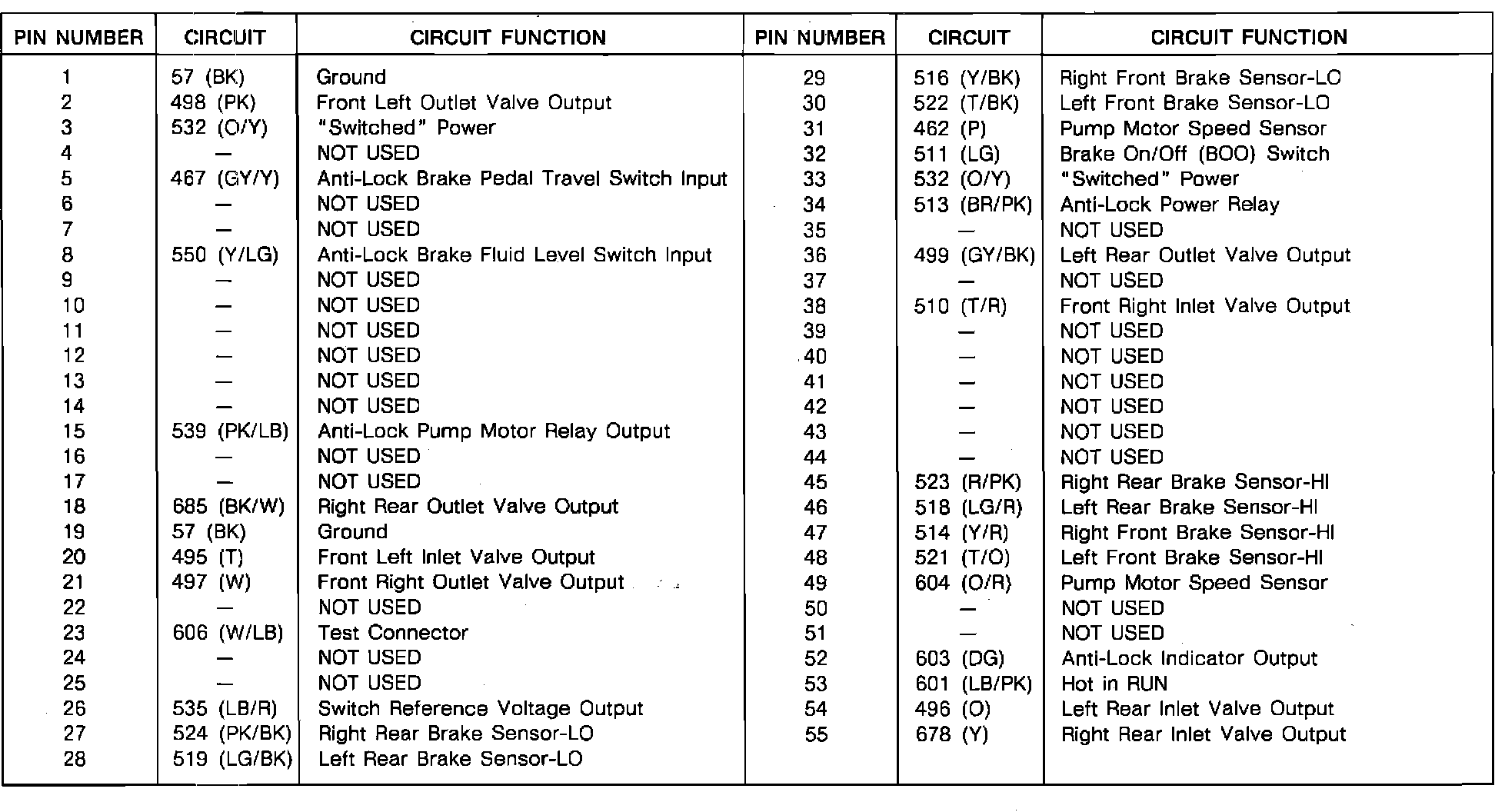

Anti-Lock Brake Control Module:
PIN-OUT IDENTIFICATION CHART
