Home
>>
Ford
>>
1993
>>
Thunderbird V6-232 3.8L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Integrated Control Relay Module
Integrated Control Relay Module

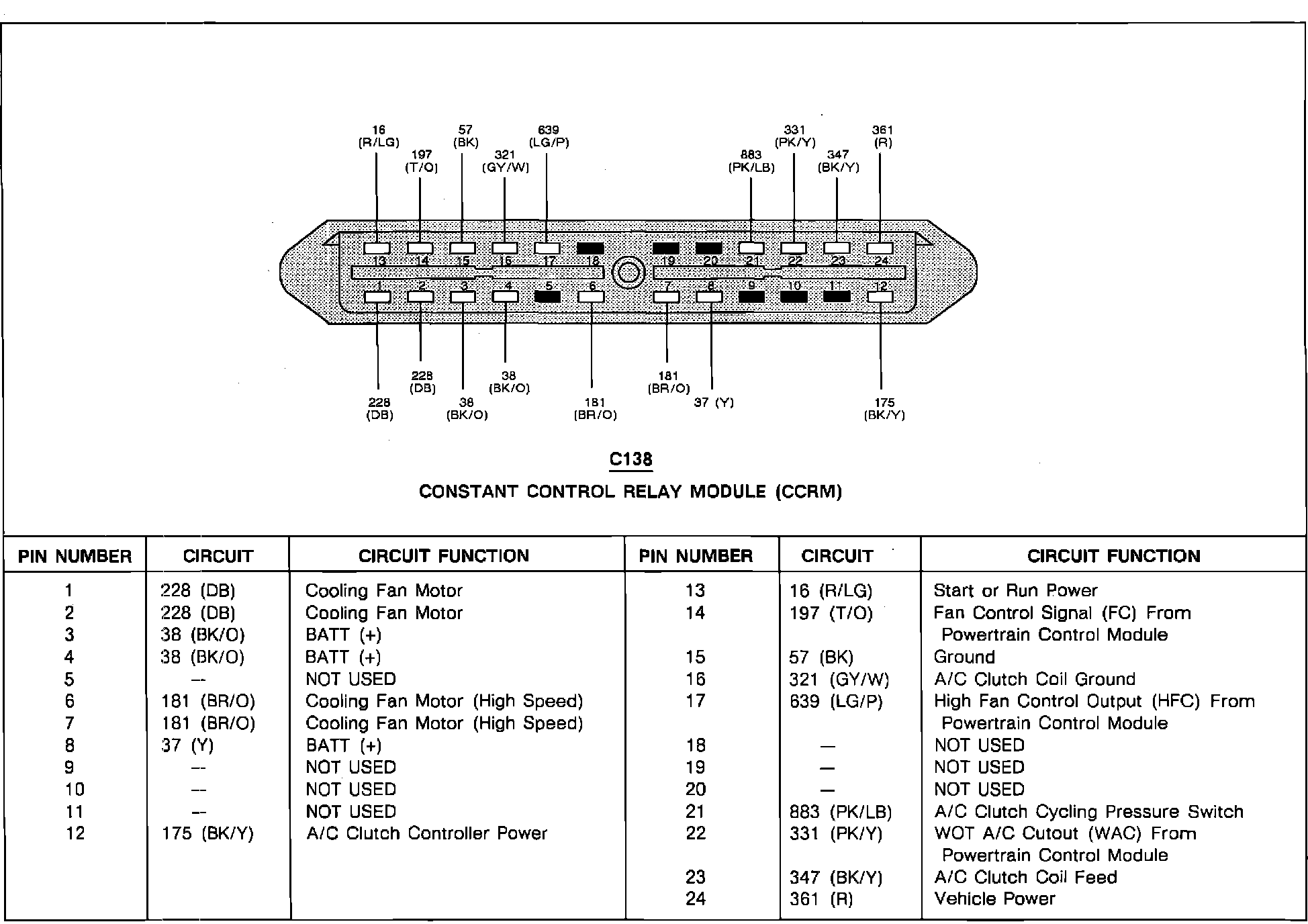

Constant Control Relay Module (CCRM):
