Home
>>
Ford
>>
1993
>>
Thunderbird V6-232 3.8L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Primary Junction Block
Primary Junction Block

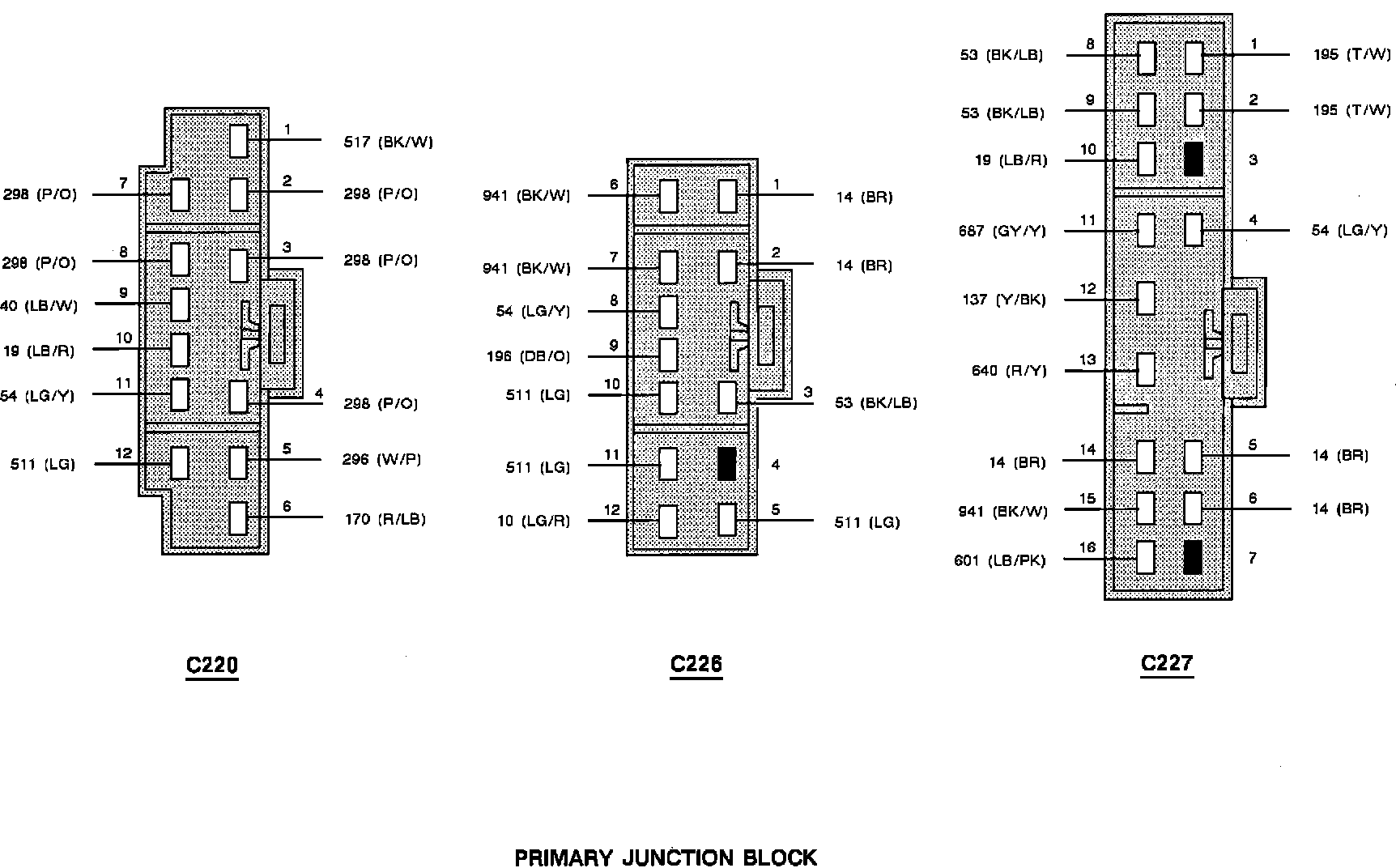

Primary Junction Block:

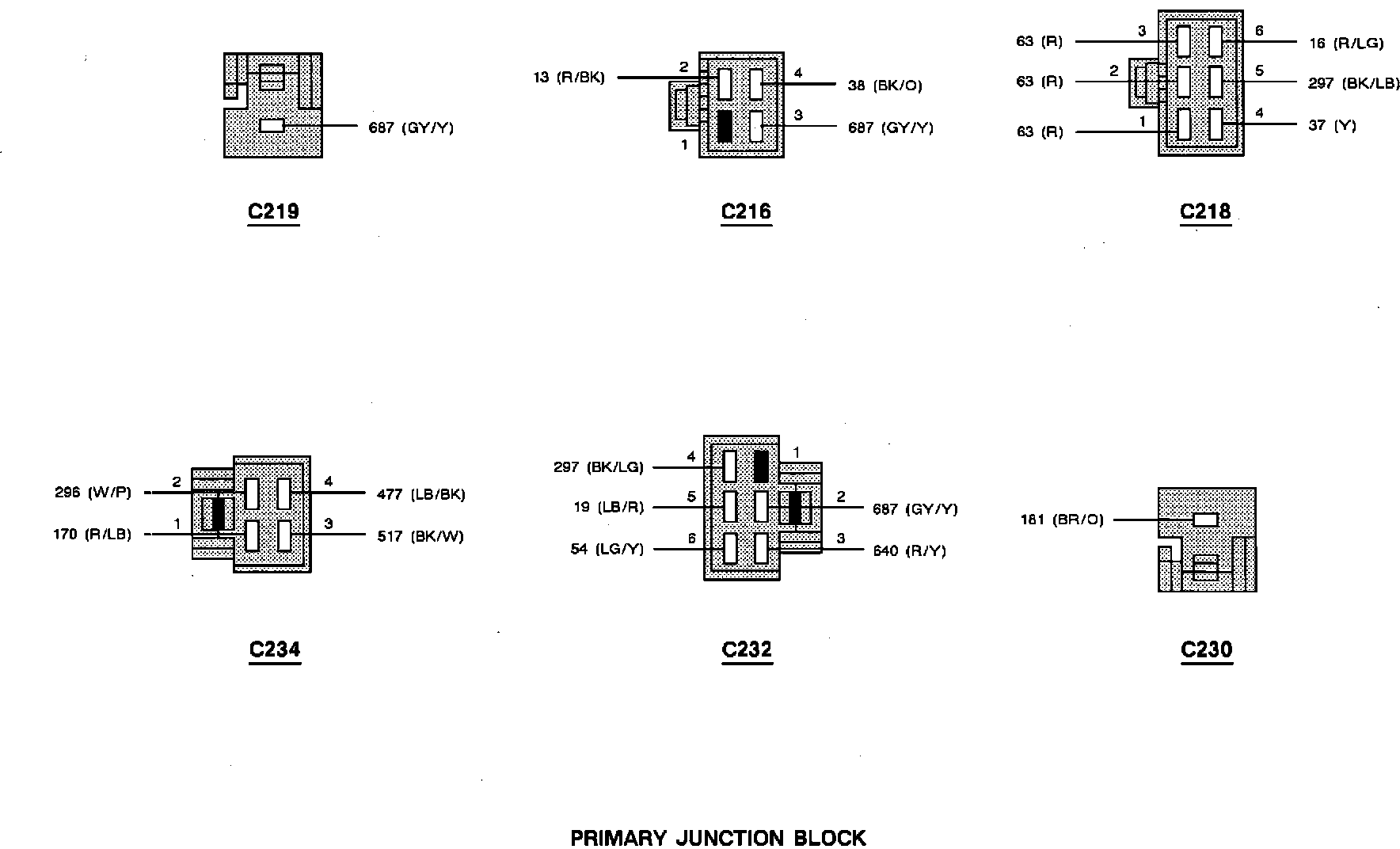

Primary Junction Block:
