Ford
>>
1993
>>
Tempo L4-140 2.3L HSC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Windshield Washer Switch
>>
Interval
Interval

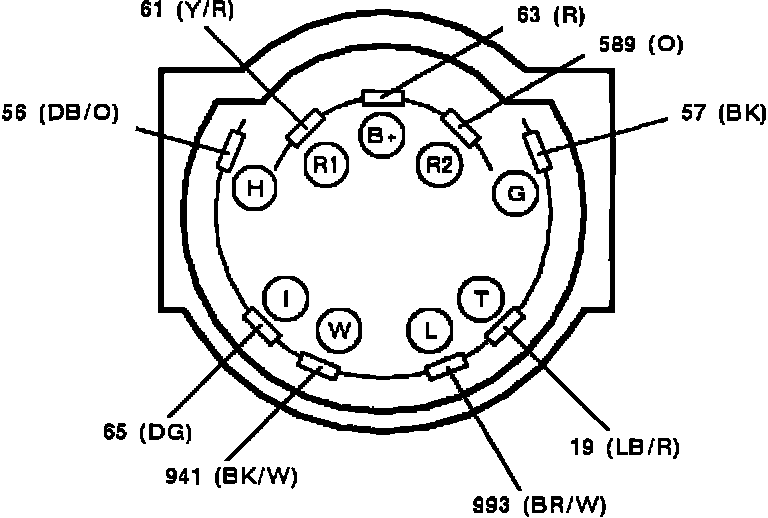

Terminal Locations:
