LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
1993
>>
Tempo L4-140 2.3L HSC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Belt Control Module
Seat Belt Control Module

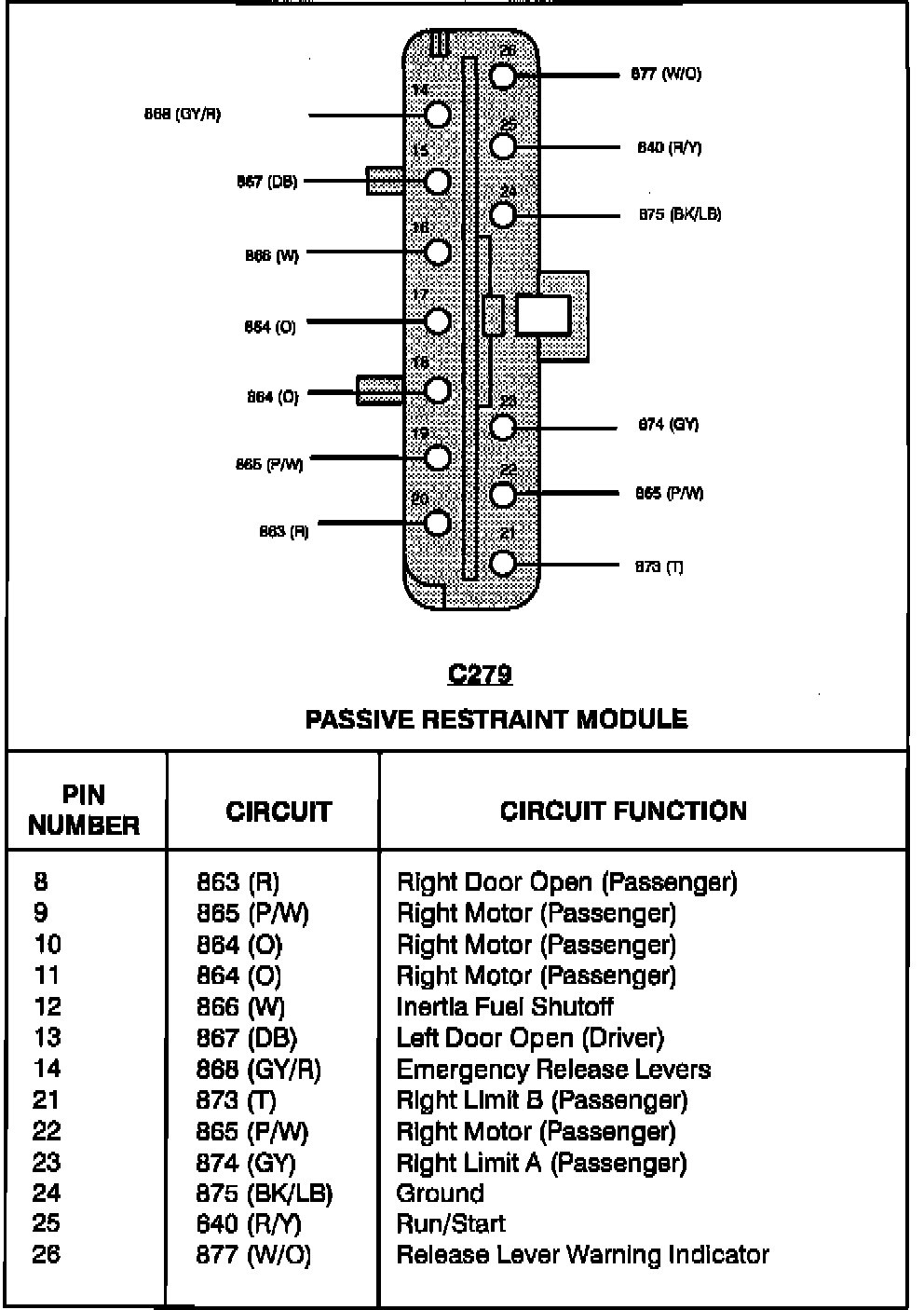

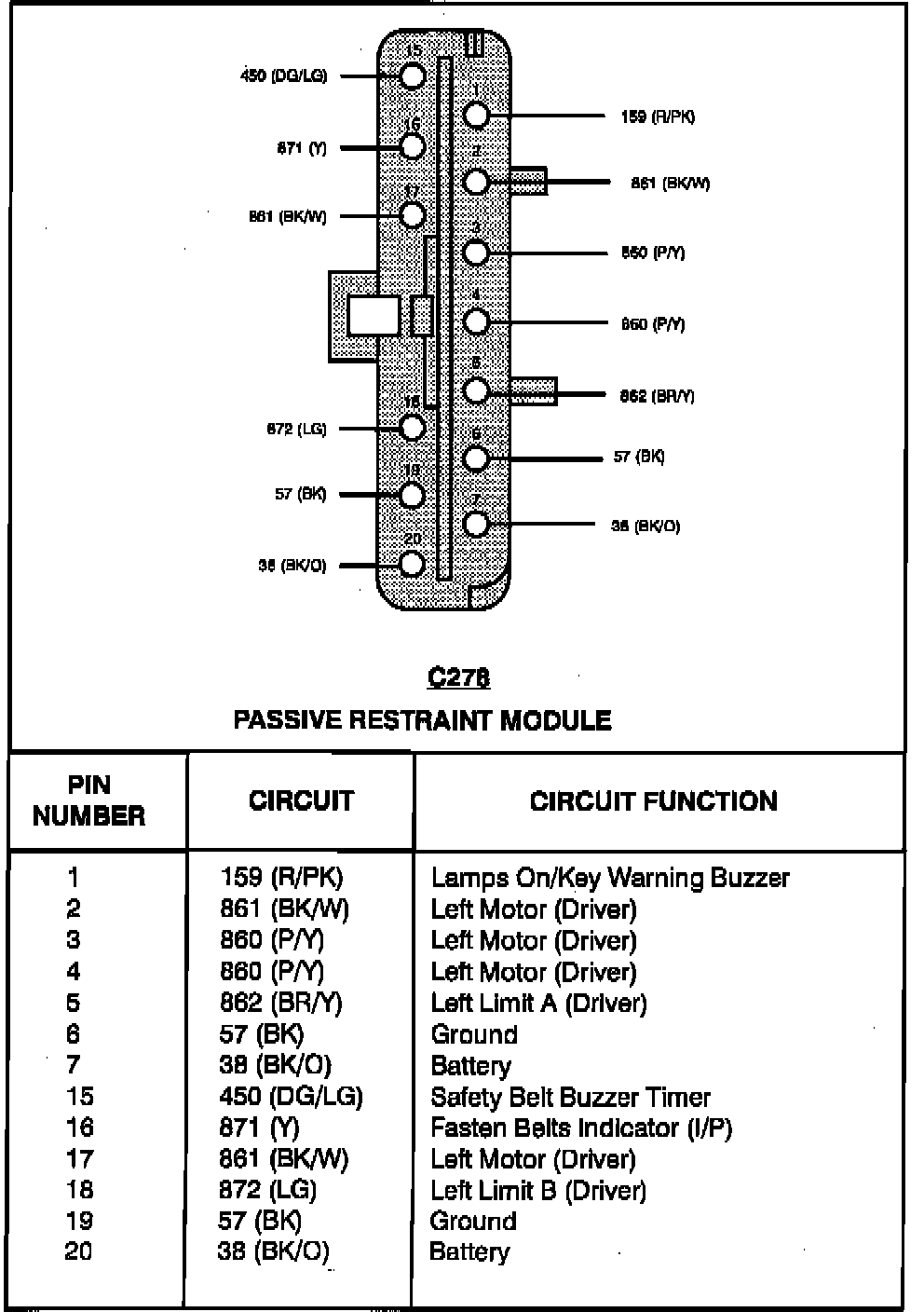

Passive Restraint Module:
Passive Restraint Module:
