Home
>>
Ford
>>
1993
>>
Ranger 4WD L4-140 2.3L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transfer Case
>>
Control Module, Transfer Case
Control Module, Transfer Case

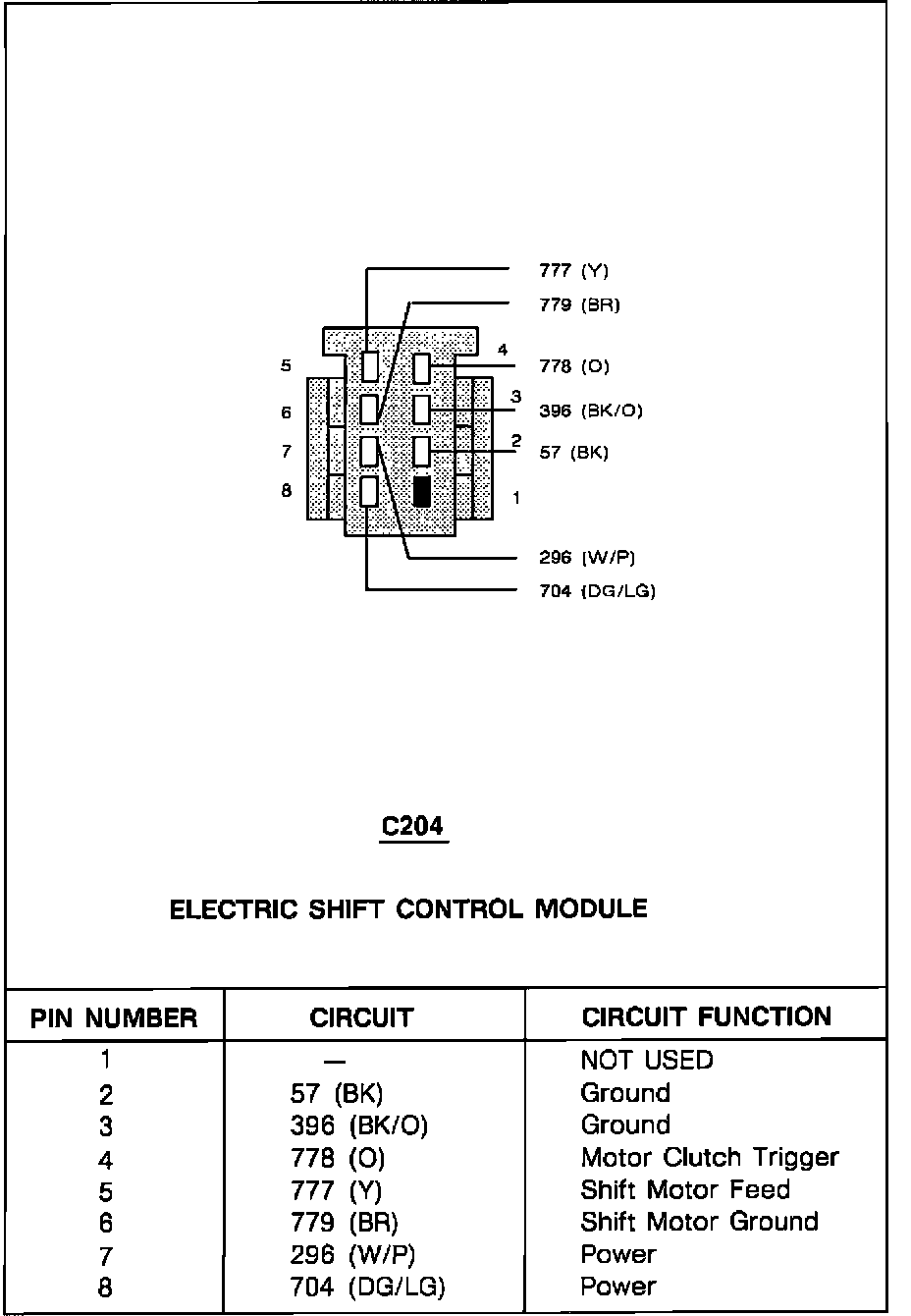

Electric Shift Control Module C204:

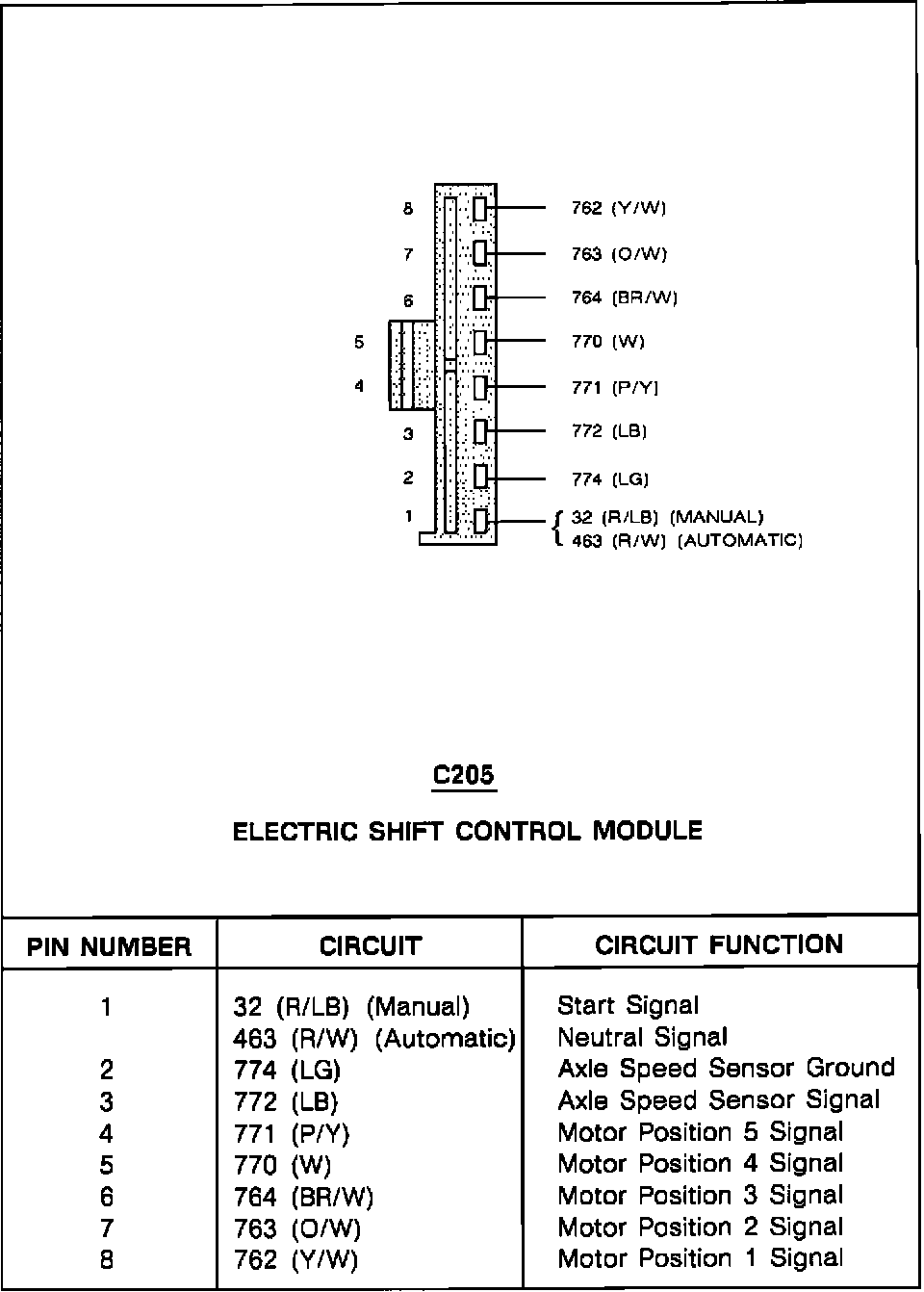

Electric Shift Control Module C205:

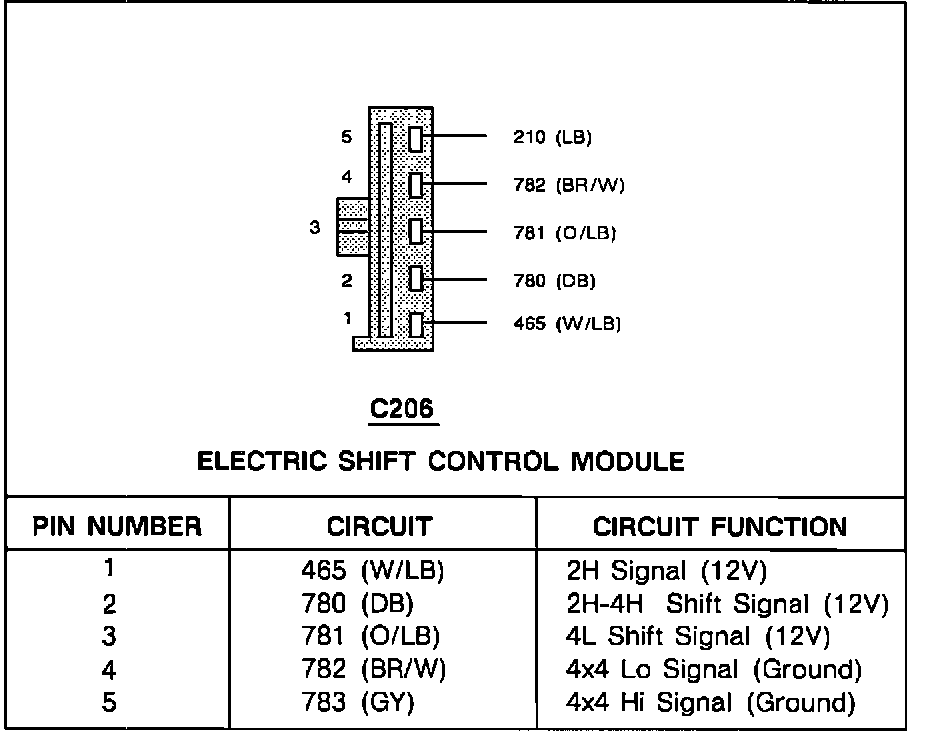

Electric Shift Control Module C206:
