Home >> Ford >> 1993 >> Probe V6-152 2.5L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Part 2 of 5

Part 2 of 5

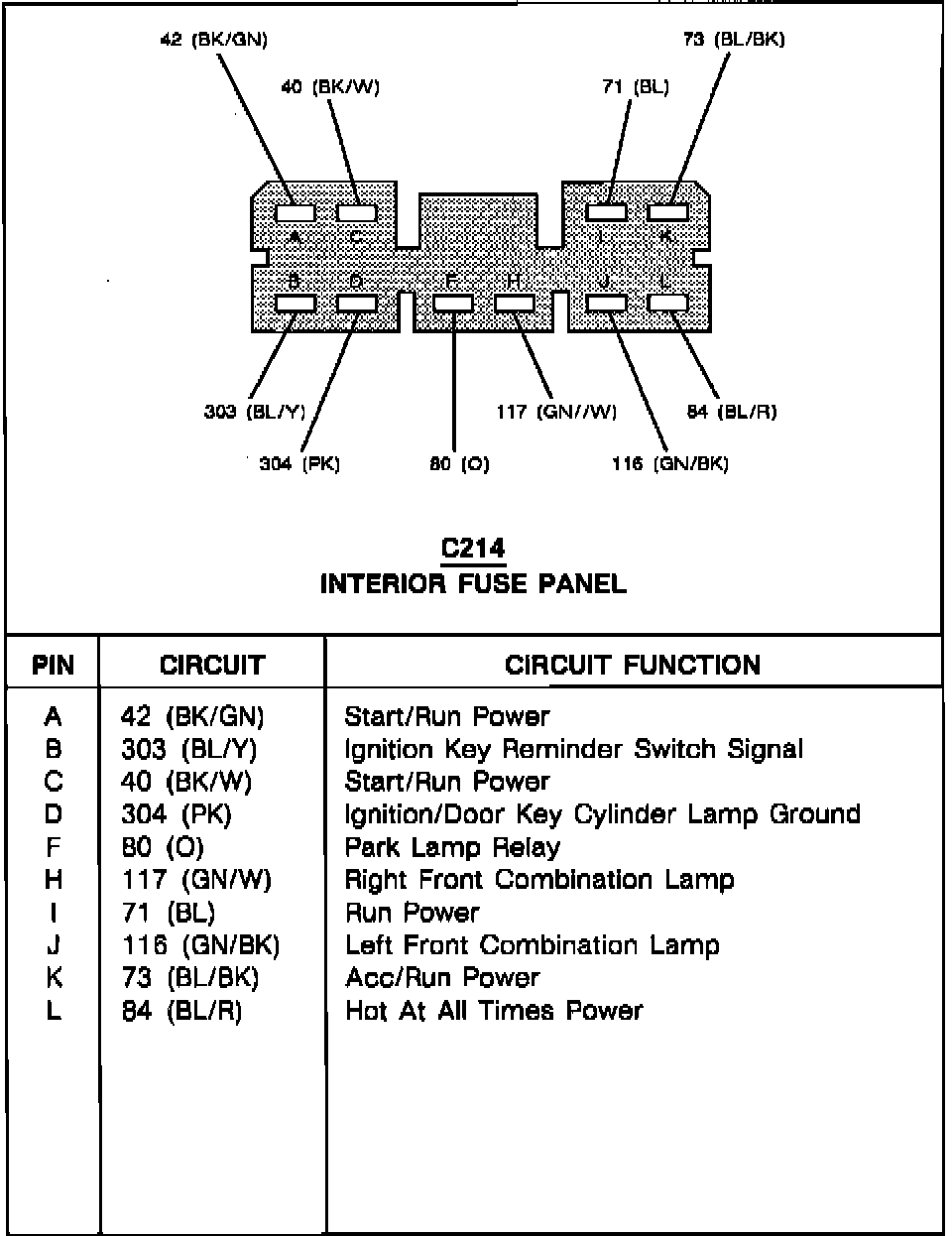

Interior Fuse Panel:
