Home
>>
Ford
>>
1993
>>
Probe V6-152 2.5L DOHC
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Pinpoint Tests
>>
SC10 - SC12
SC10 - SC12

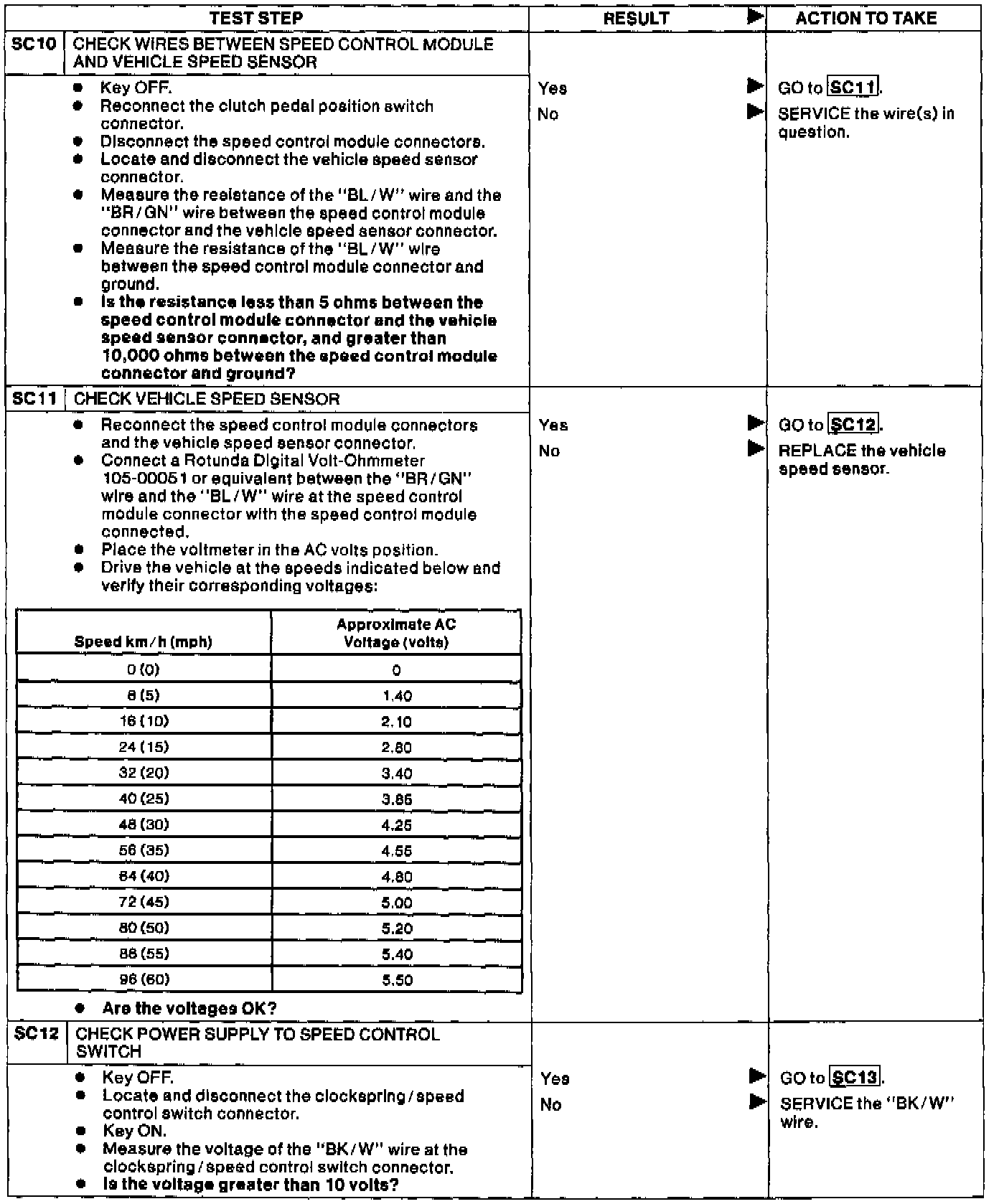

Fig. 105 Pinpoint Test SC10-SC12:
