Home >> Ford >> 1993 >> Mustang L4-140 2.3L SOHC >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Locations

Ignition System: Locations

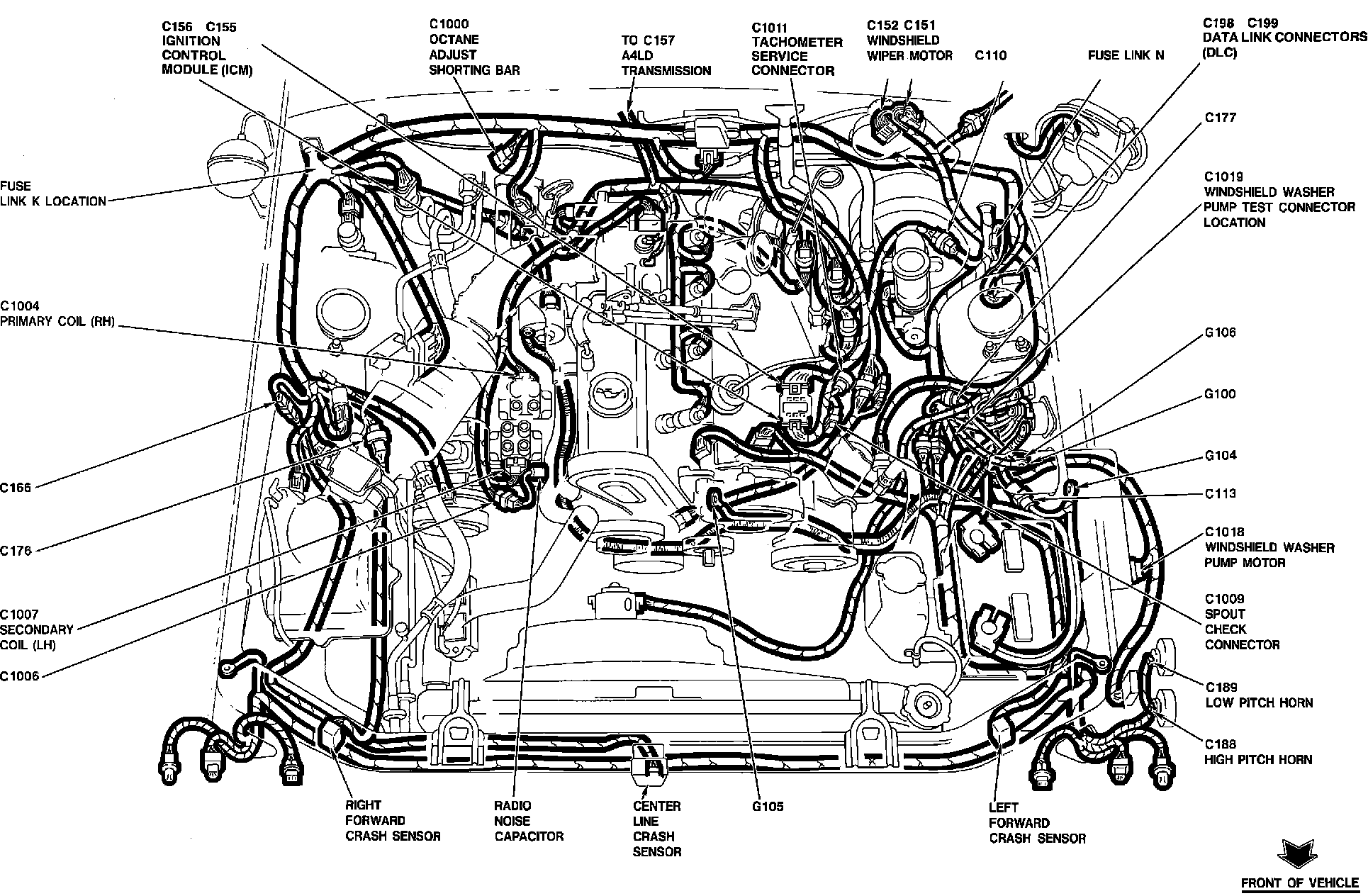

Component Locations:

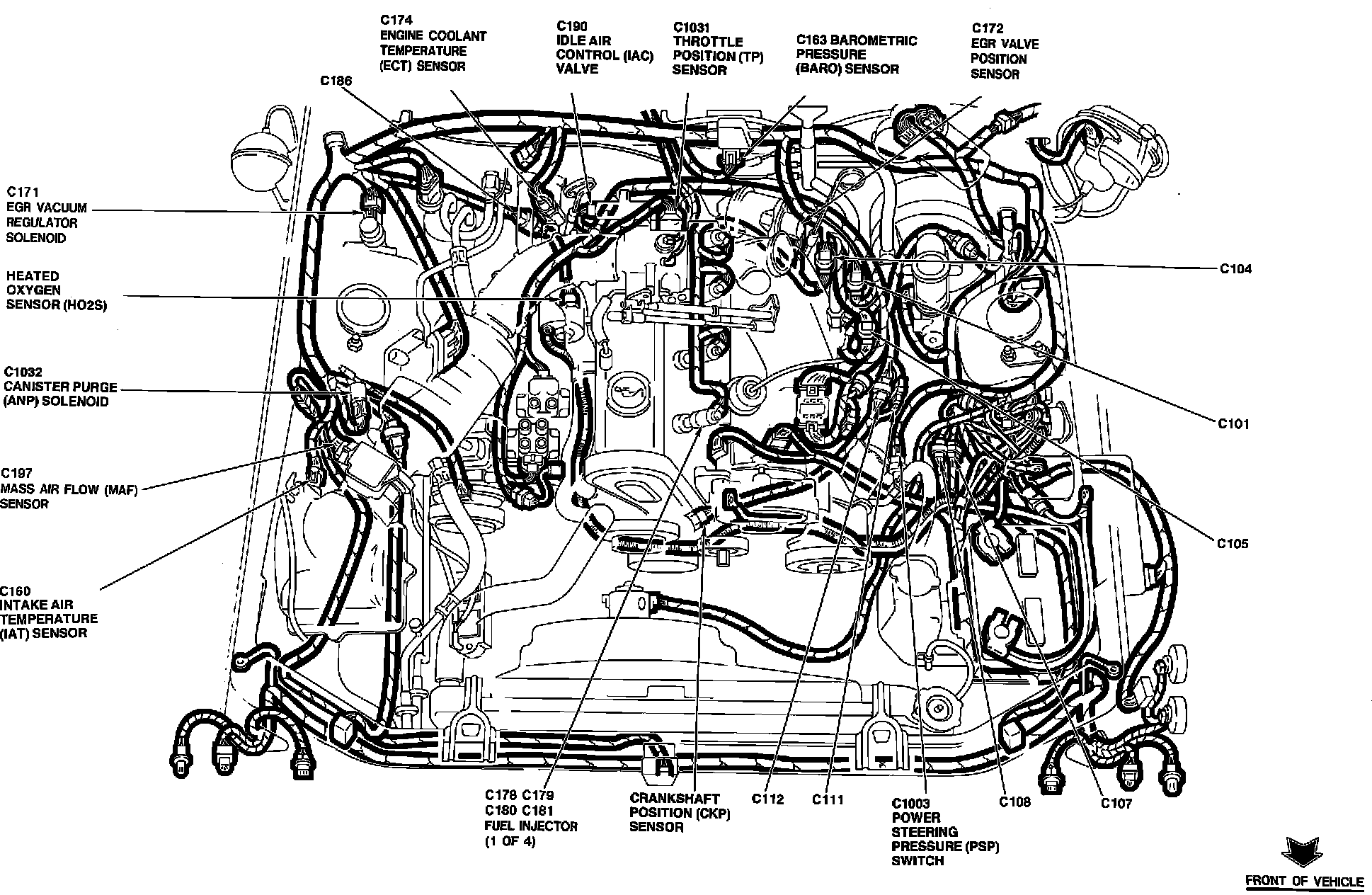

Component Locations:

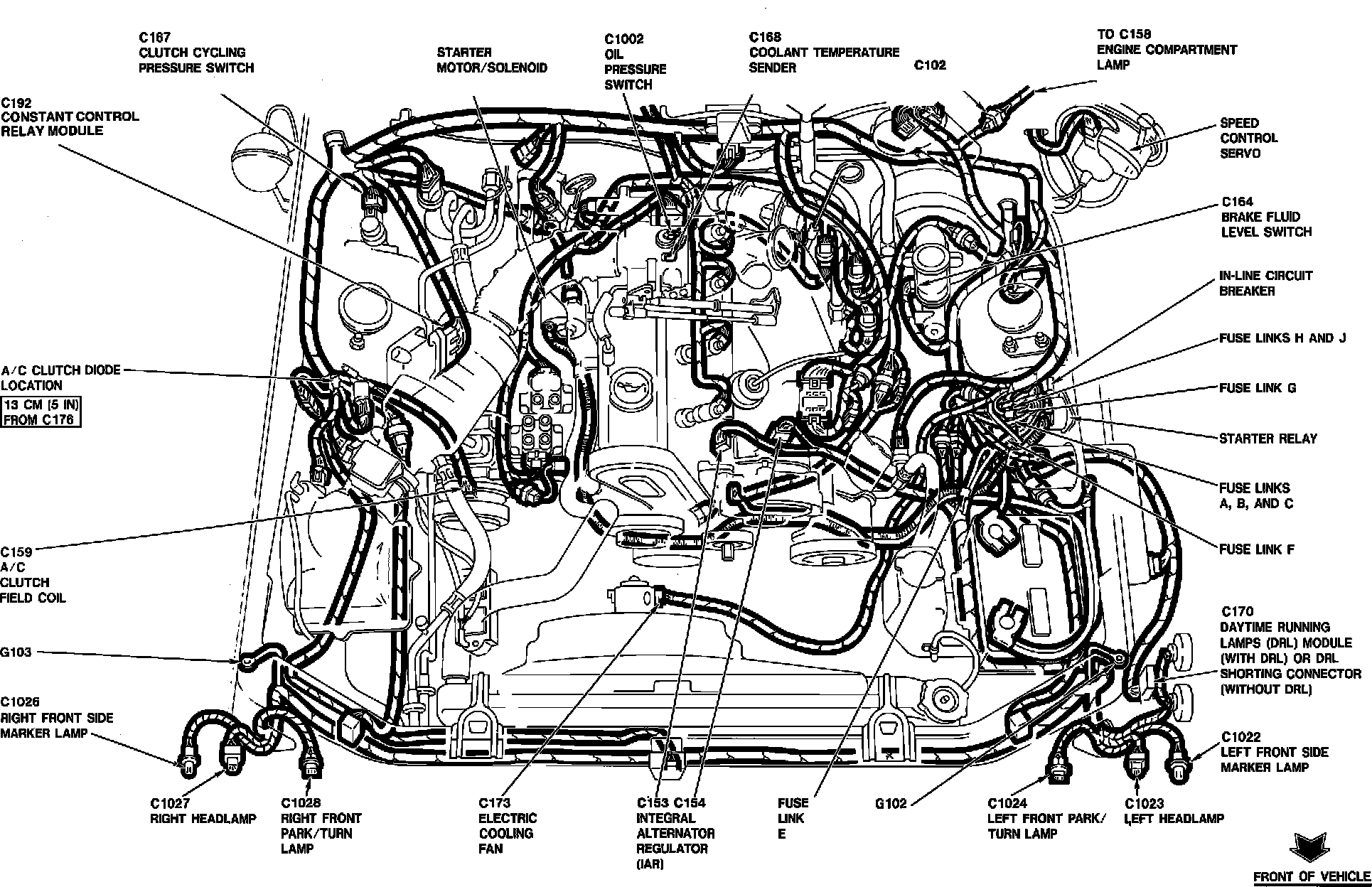

Component Locations:
