F 250 4WD Pickup V8-7.3L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module, Transfer Case
Control Module, Transfer Case

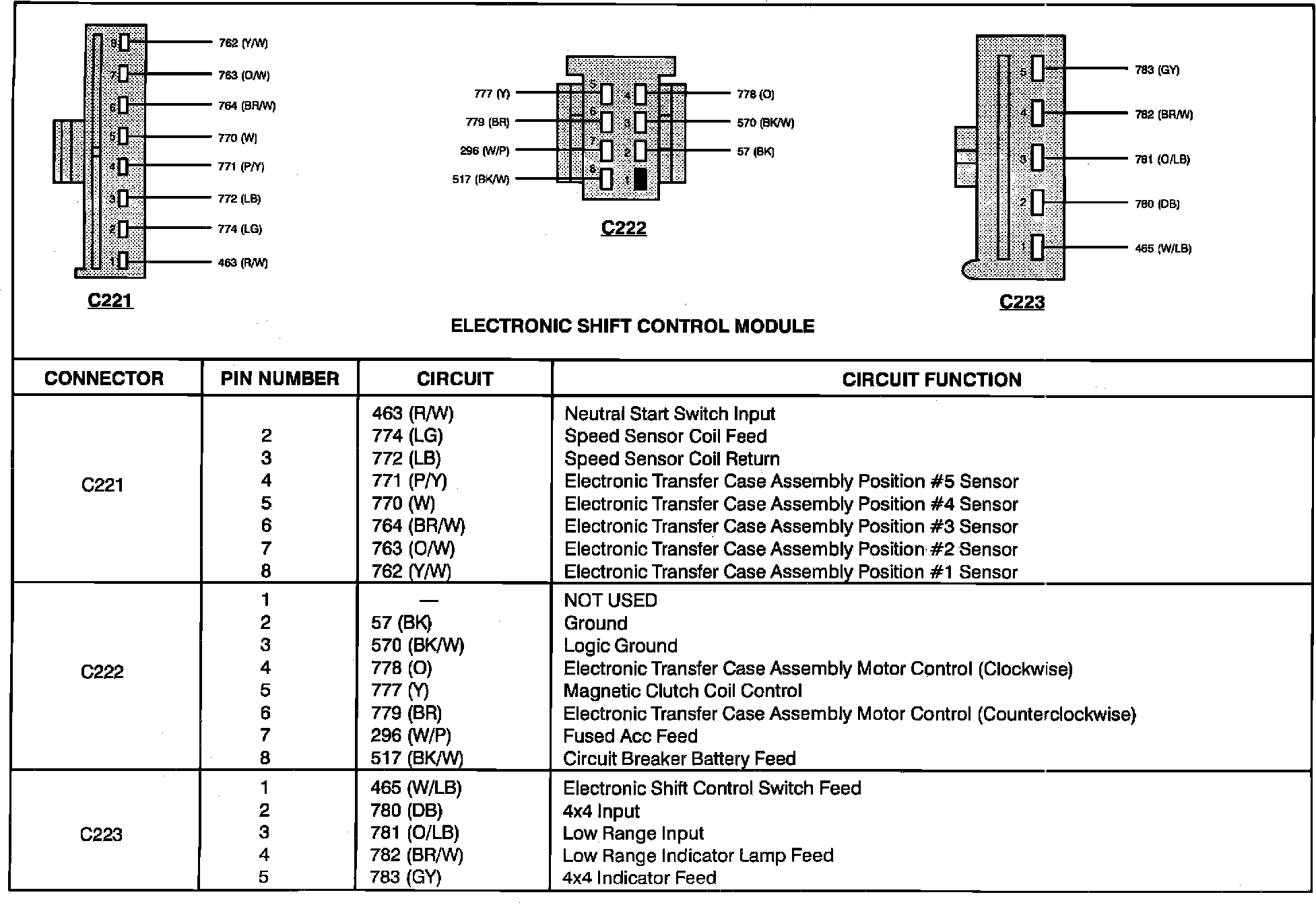

Electronic Shift Control Module:
