Engine Control Module

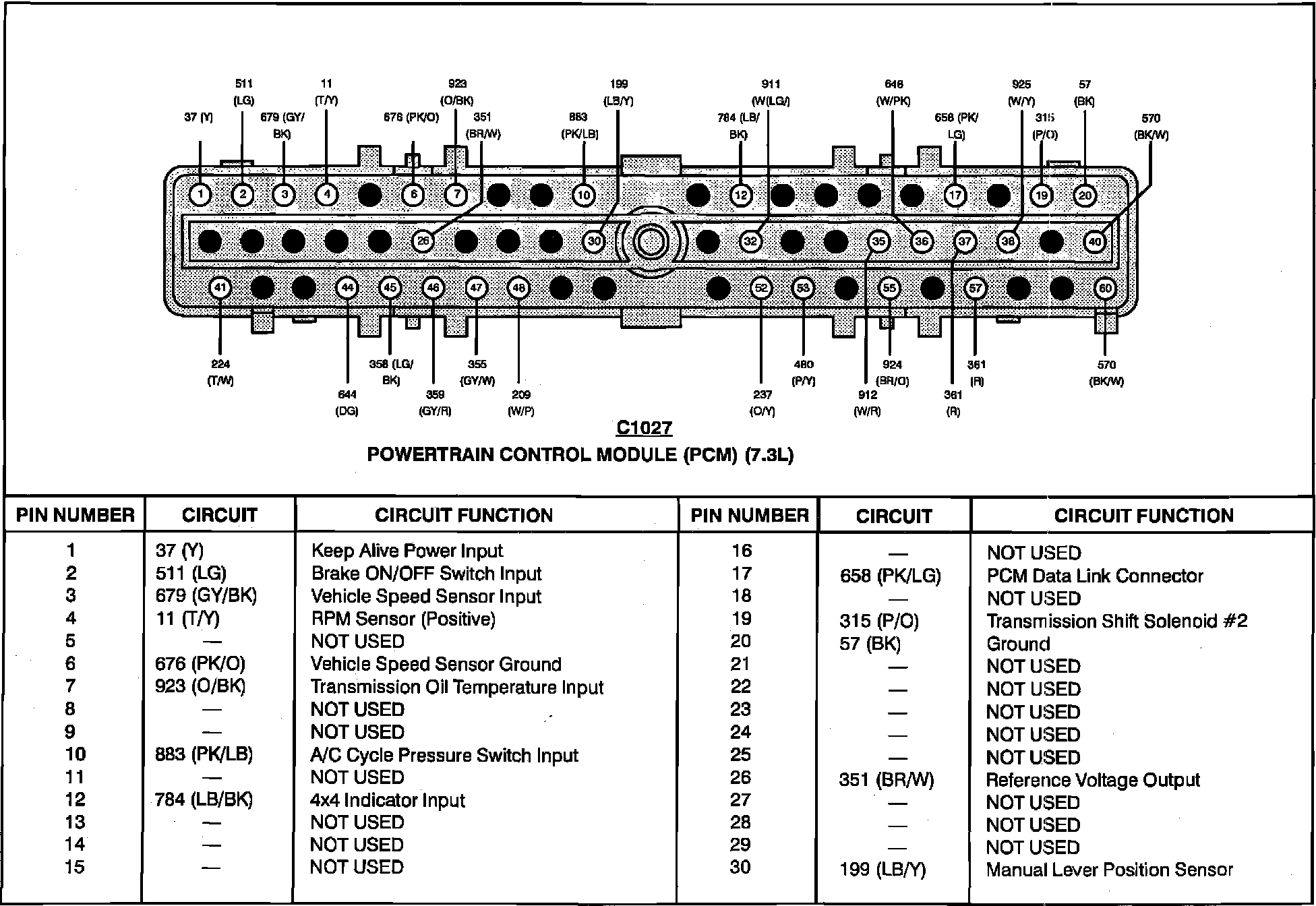

Powertrain Control Module (PCM):



Powertrain Control Module (PCM):

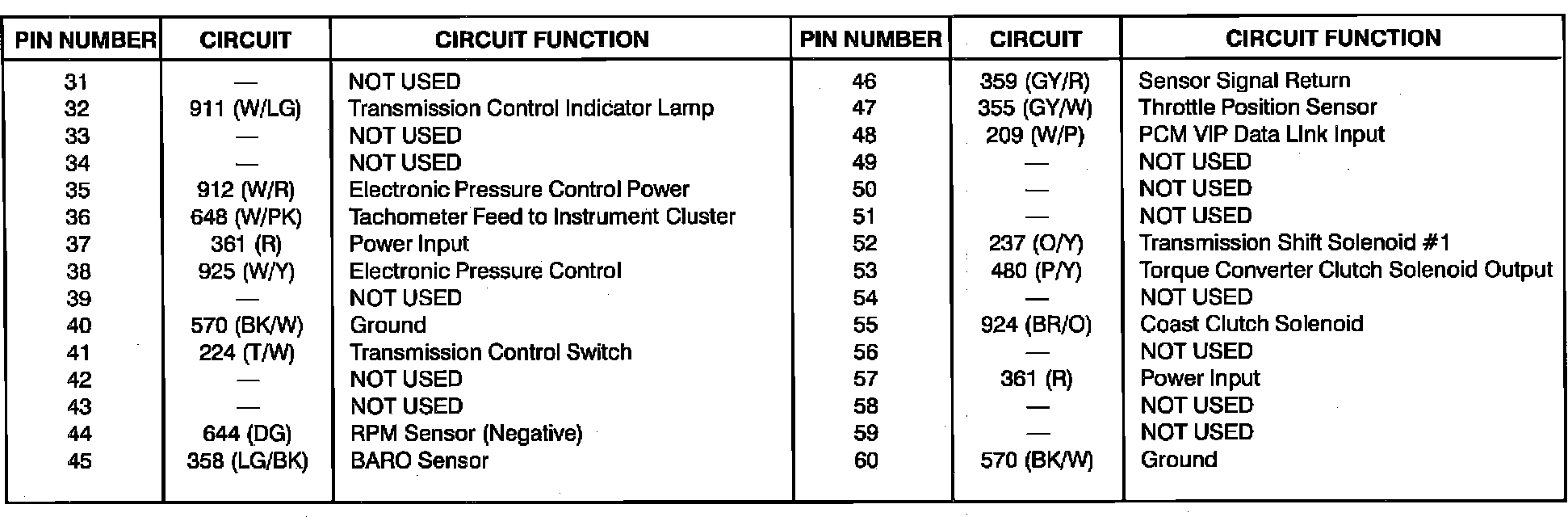

Powertrain Control Module (PCM) Connector Pin Useage:



Powertrain Control Module (PCM) Connector Pin Useage:
