Transmission Oil Temperature (TOT) Sensor
Transmission Oil Temperature (TOT) Sensor

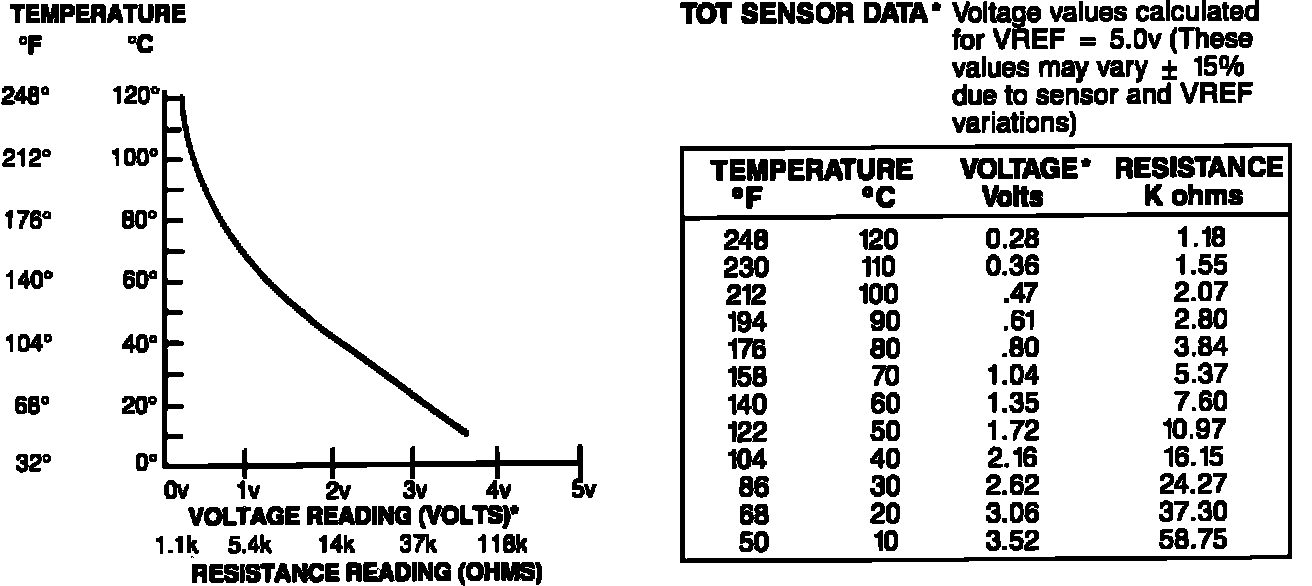

Transmission Oil Temperature Sensor Graph:
