Home >> Ford >> 1993 >> Explorer 2WD V6-245 4.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> With Remote Keyless Entry >> Drivers Door

Drivers Door

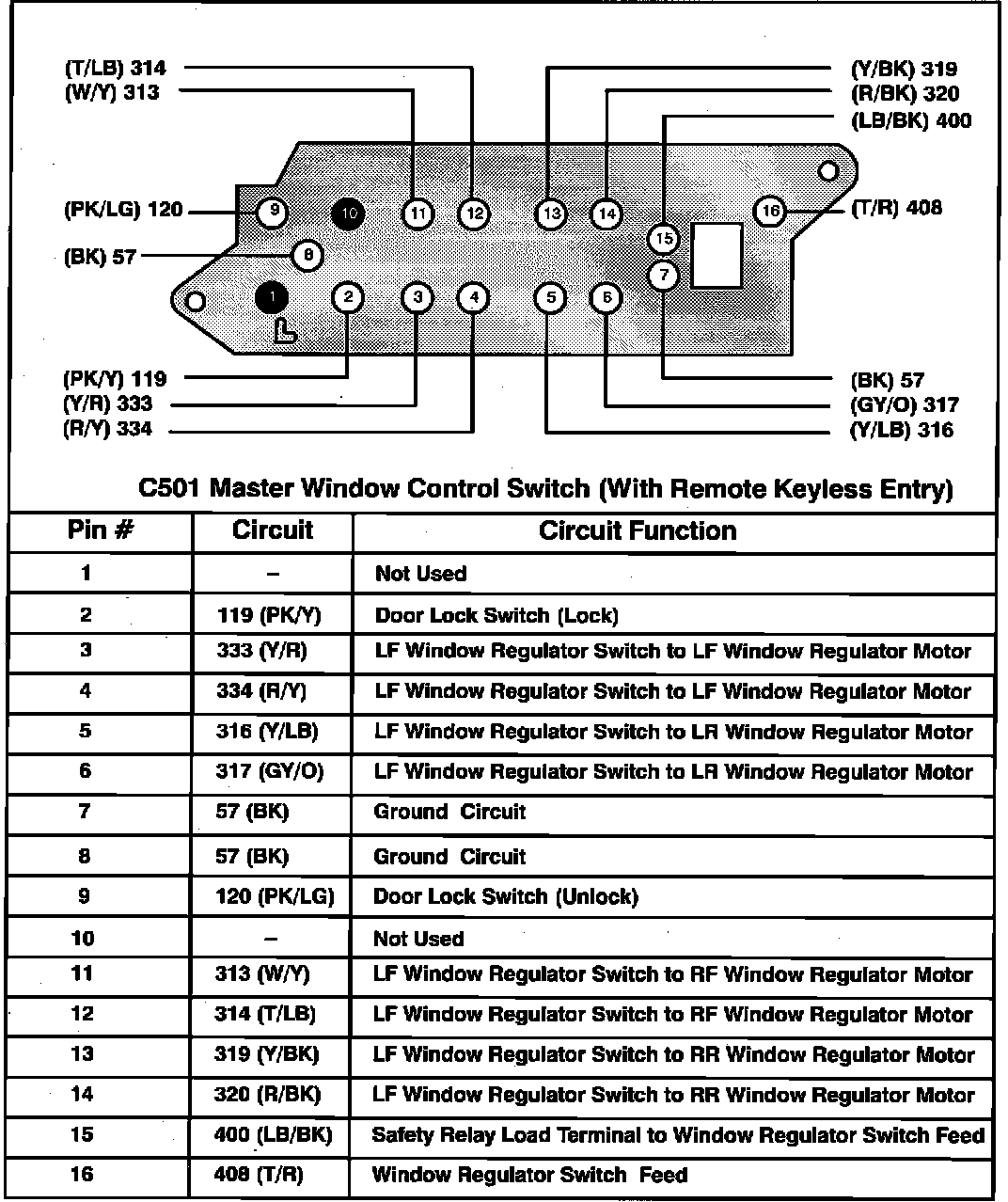

Master Window Control Switch (With Remote Keyless Entry):
