Home >> Ford >> 1993 >> E 250 Van V8-7.3L DSL >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Diagrams >> Connector Views >> AOD Transmission

AOD Transmission

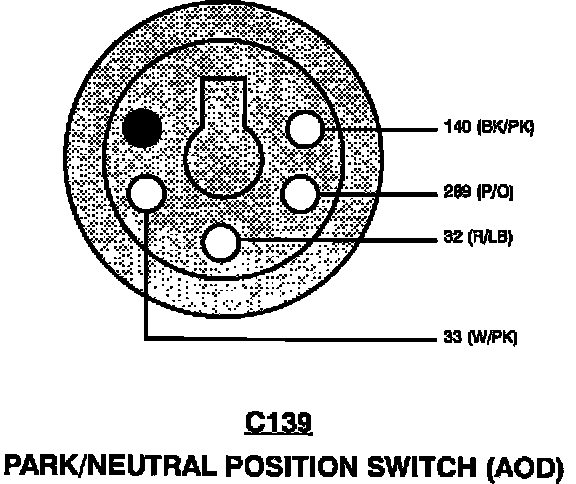

Park/Neutral Position Switch (AOD):
