Engine Control Module

Powertrain Control Module (PCM),7.3L Diesel:

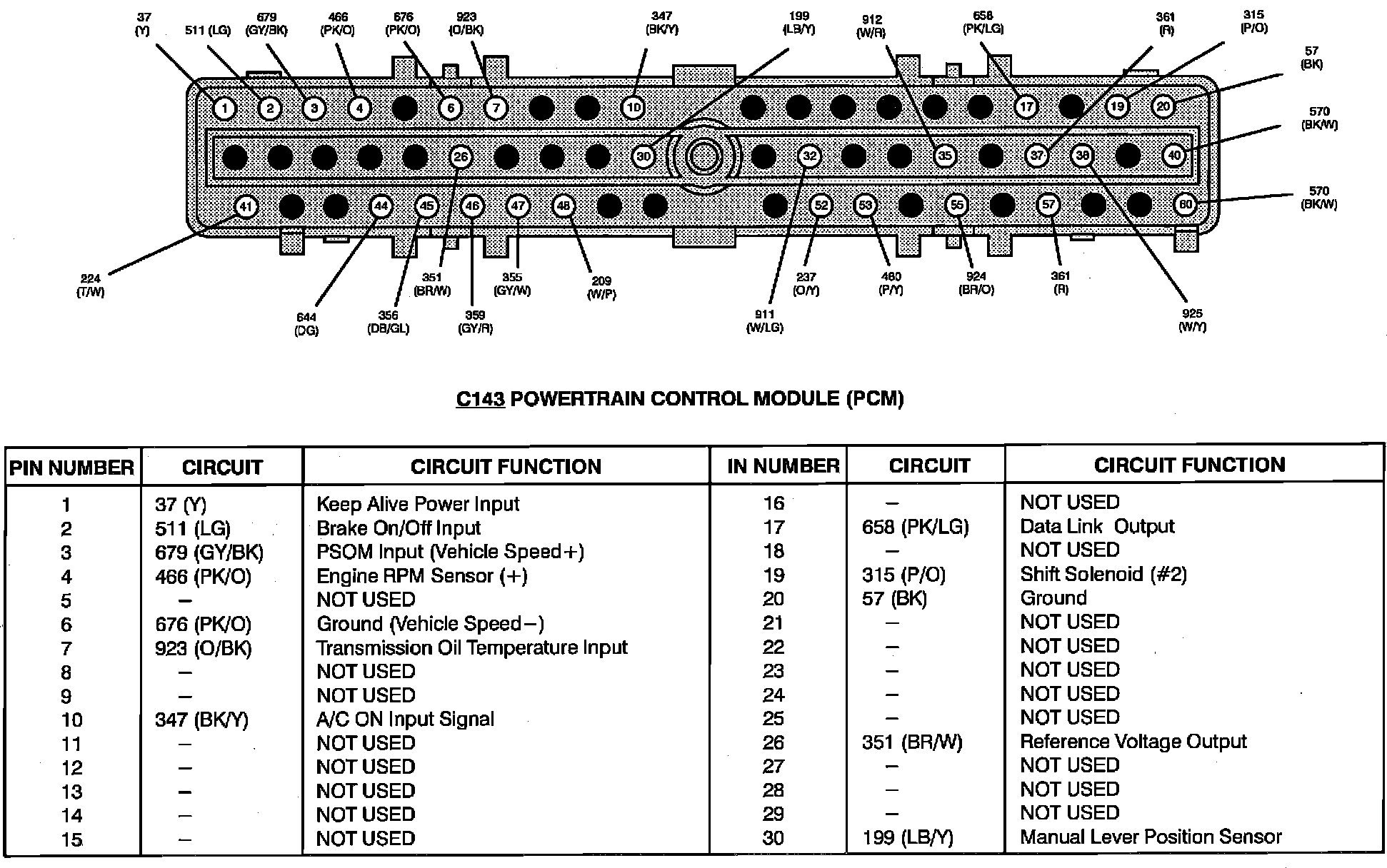

Powertrain Control Module (PCM) Circuit Function7.3L Diesel:

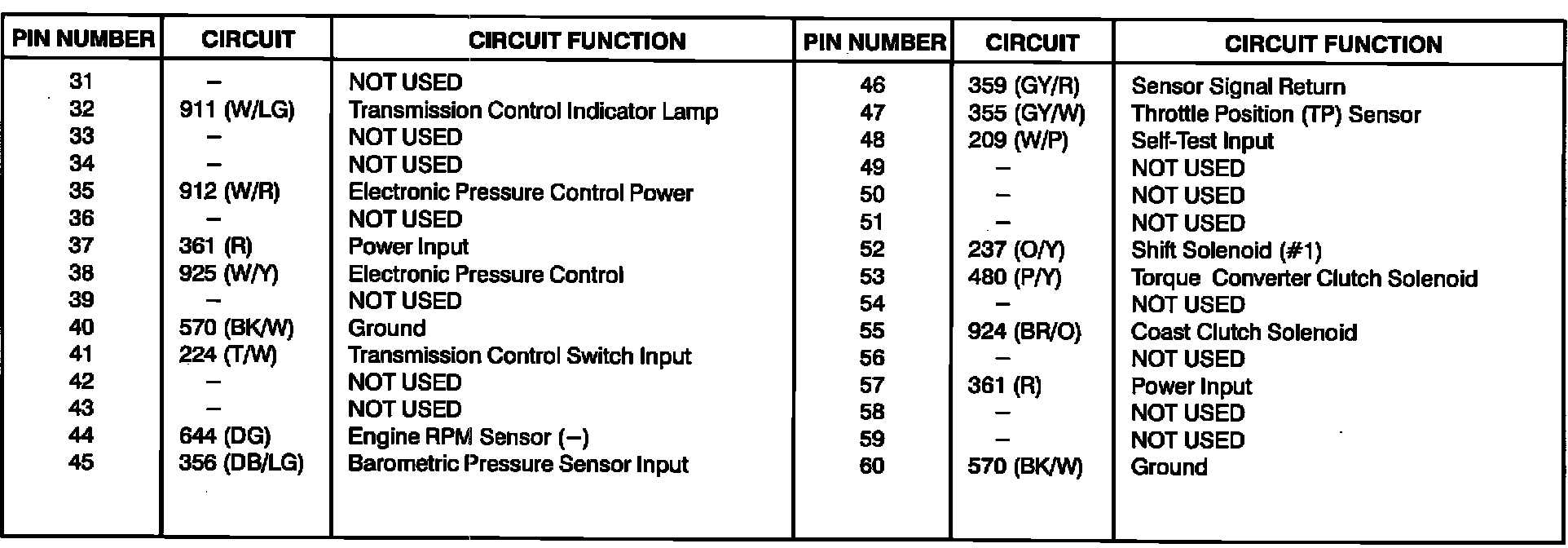

Powertrain Control Module (PCM) Connector Pin Useage:

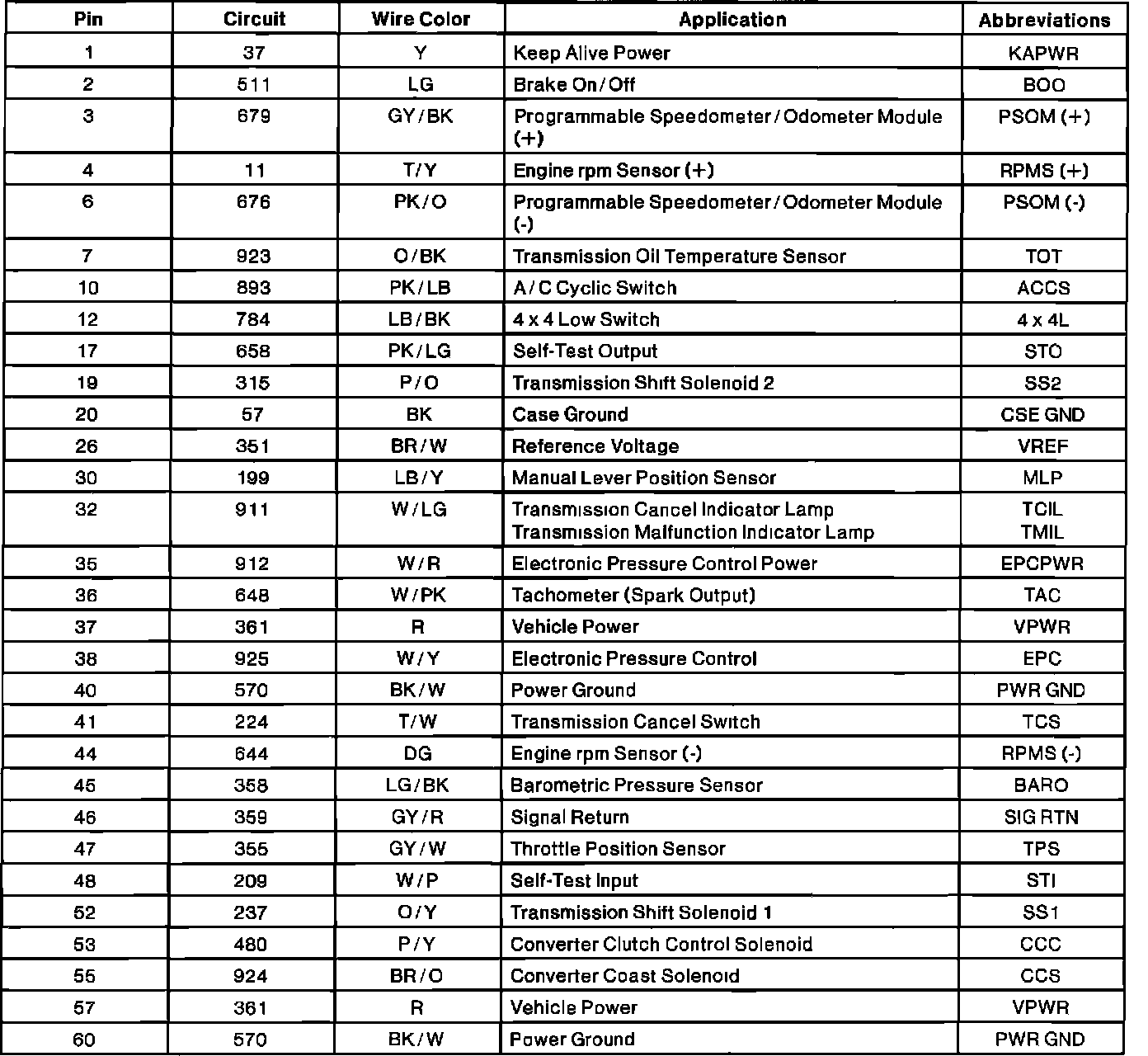

Powertrain Control Module (PCM) Connector Pin Useage:
