Home >> Ford >> 1992 >> Thunderbird V6-232 3.8L SC >> Repair and Diagnosis >> Powertrain Management >> Relays and Modules - Powertrain Management >> Relays and Modules - Ignition System >> Ignition Control Module >> Locations

Ignition Control Module: Locations

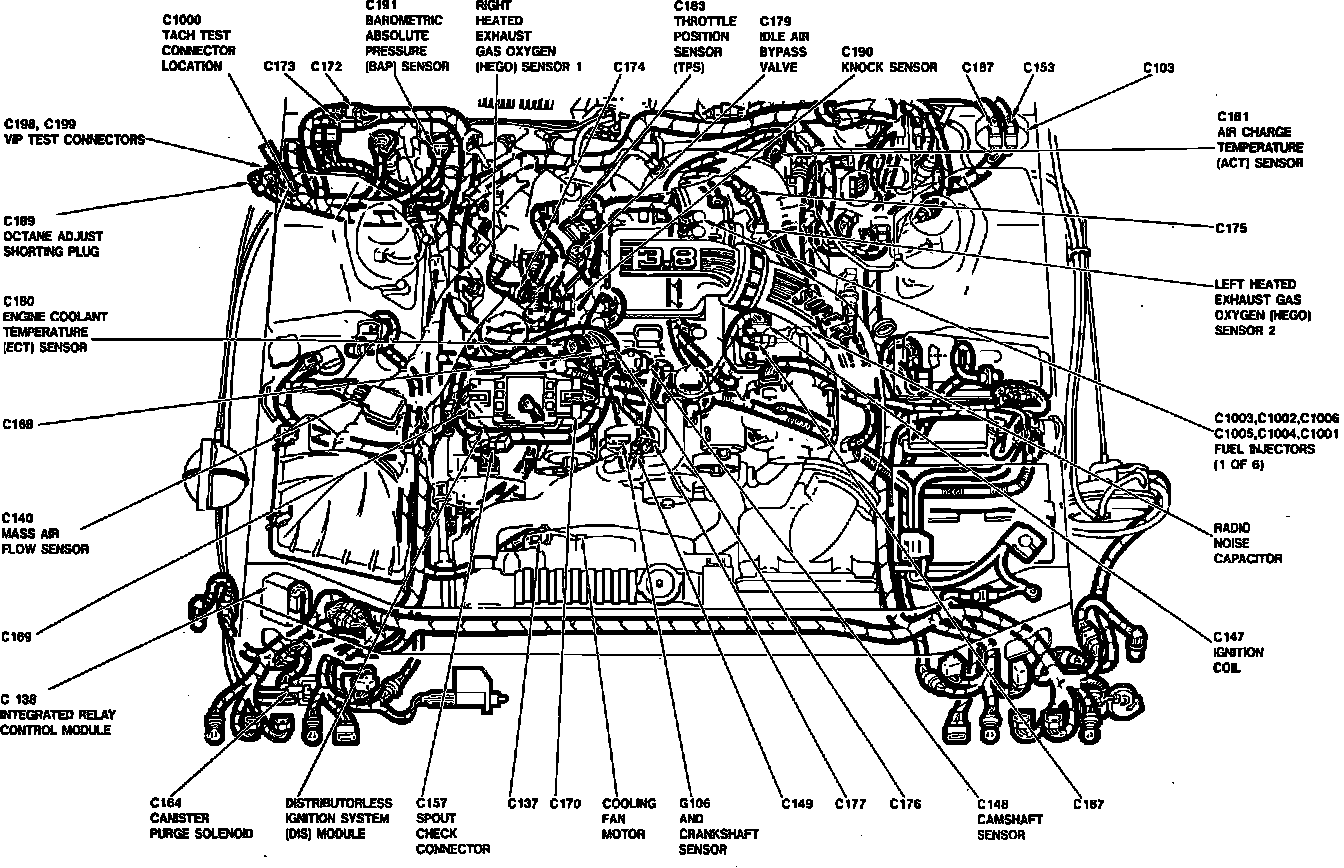

Engine Compartment Components.:




Top RH Side Of Engine

Applicable to: 3.8L/V6-232 Supercharged
