Electrical Diagrams

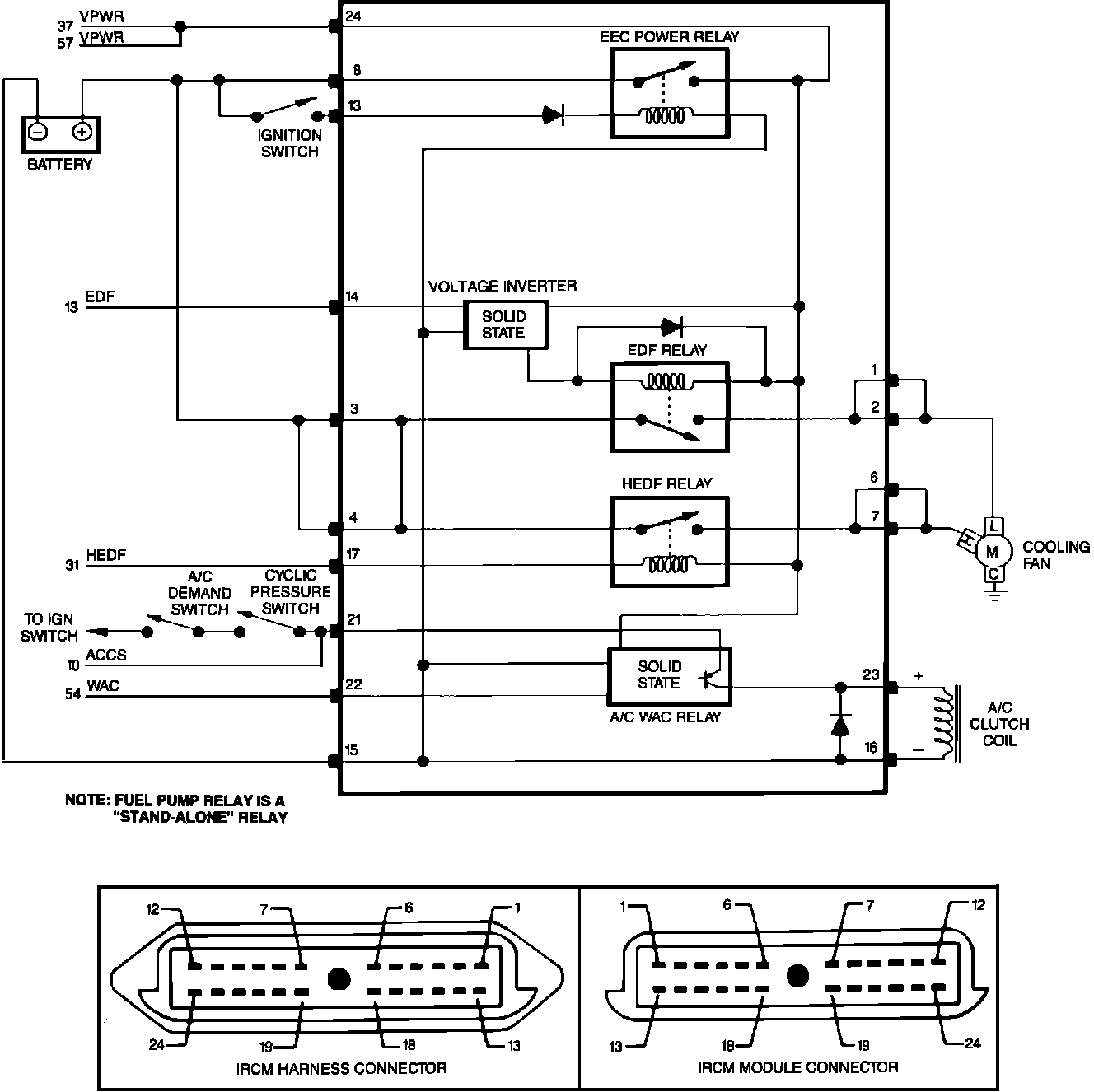

Intergrated Relay Control Module (IRCM) Schematic:



Intergrated Relay Control Module (IRCM) Pinout:
