LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
1992
>>
Thunderbird V6-232 3.8L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ignition Control Module
Ignition Control Module

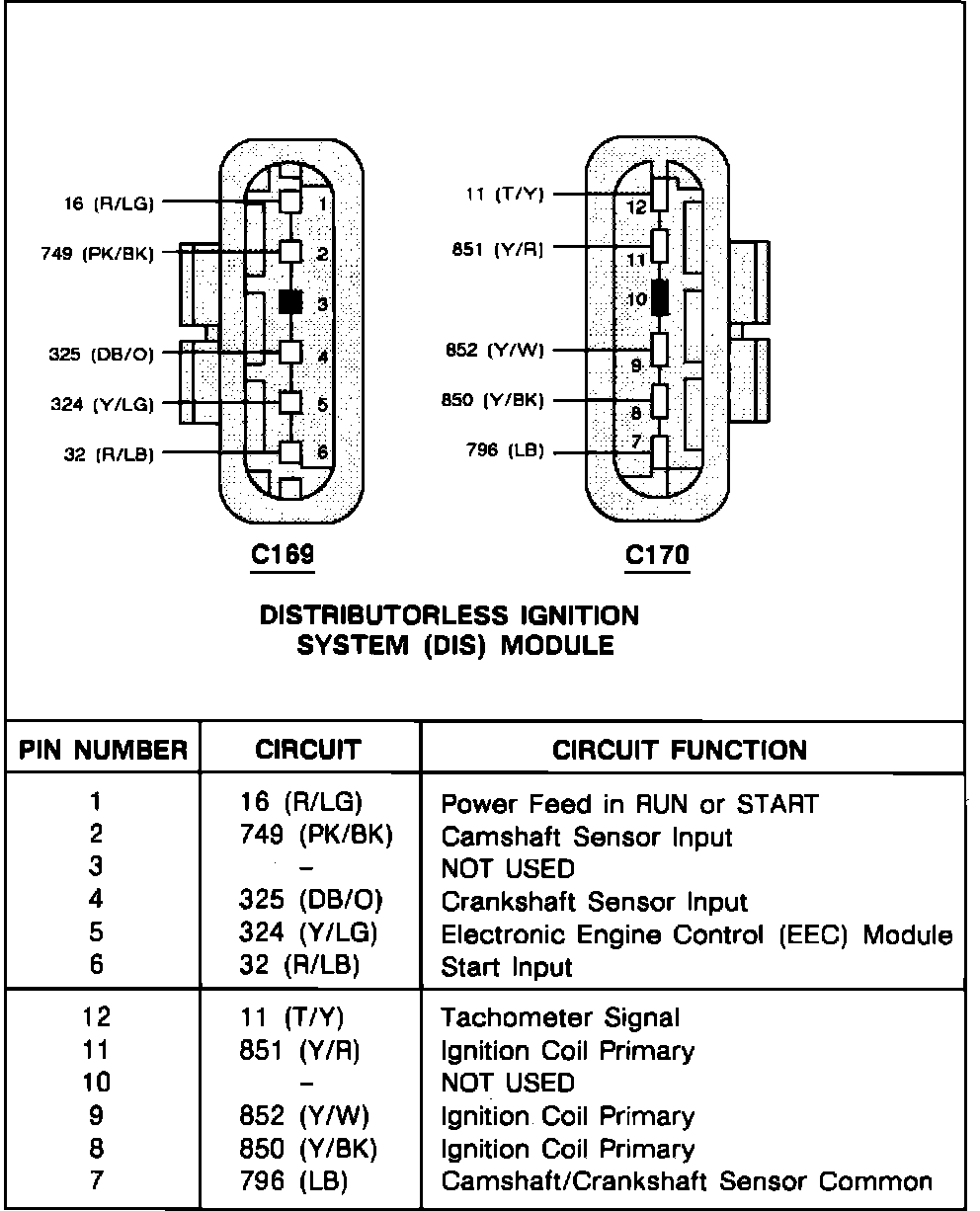

DIS Ignition Module And Pinout:
Distributerless Ignition Module Connector Pinout:
