Seat Belt Control Module
Seat Belt Control Module

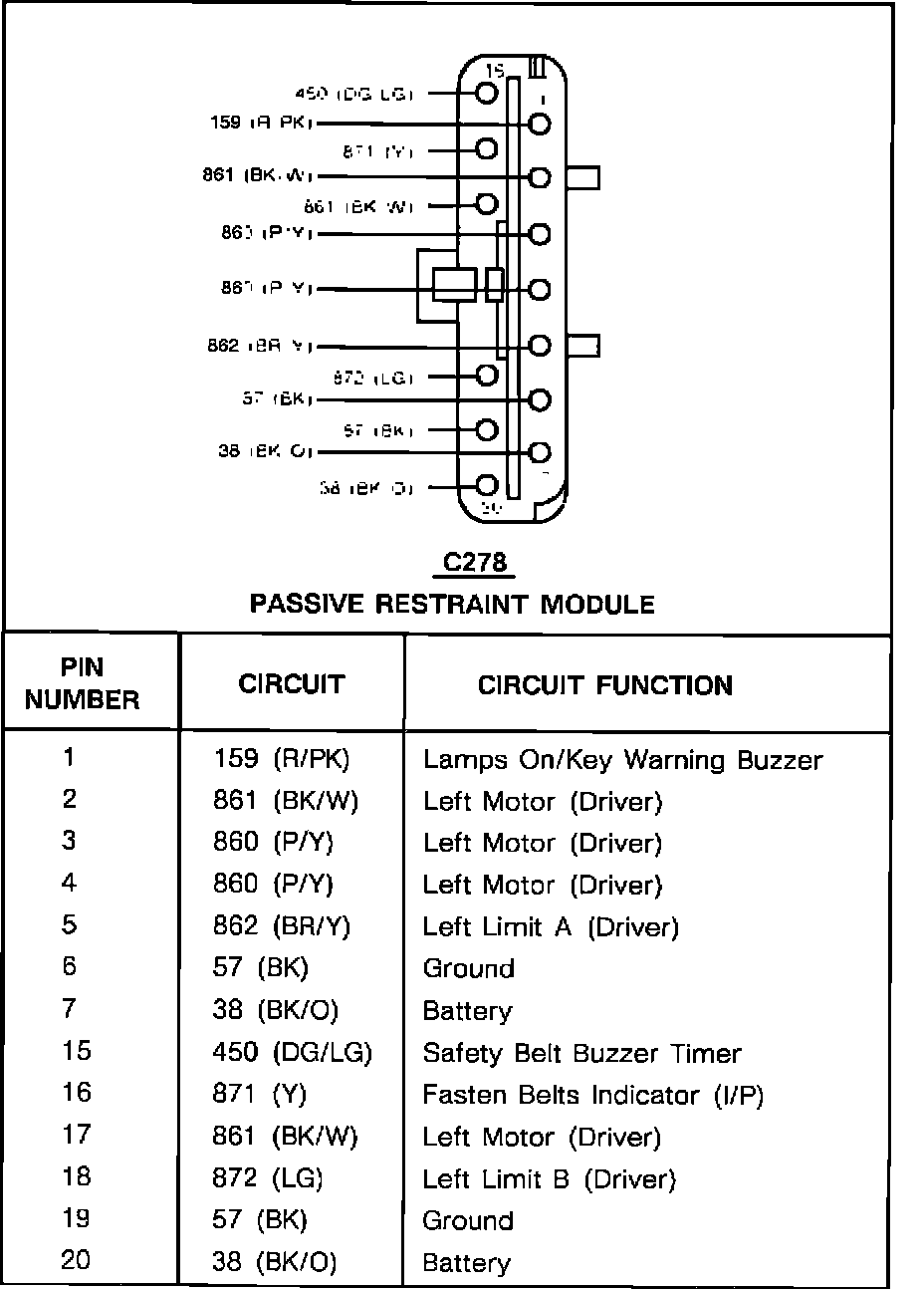

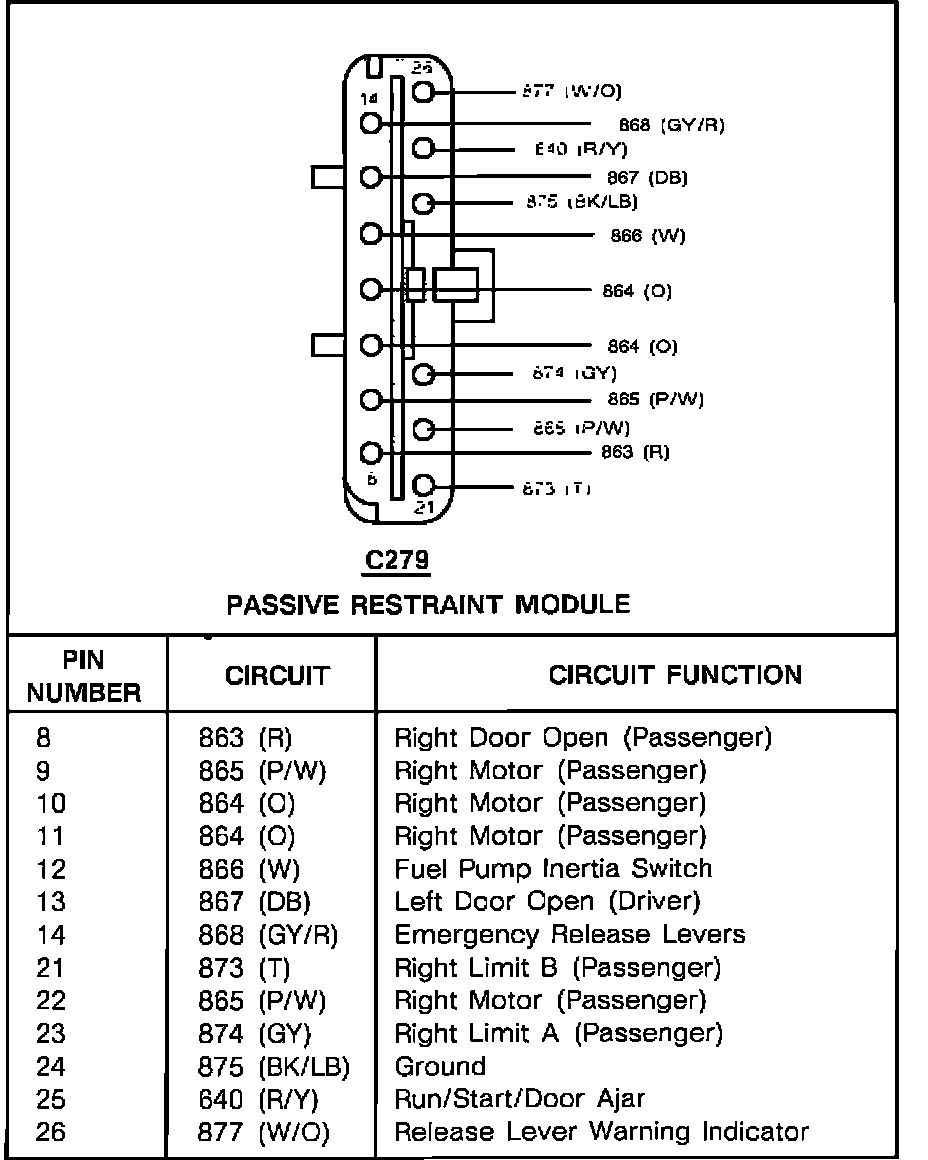

Connector Faces/Pinout Charts:
Connector Faces/Pinout Charts:
