Ignition Switch: Testing and Inspection

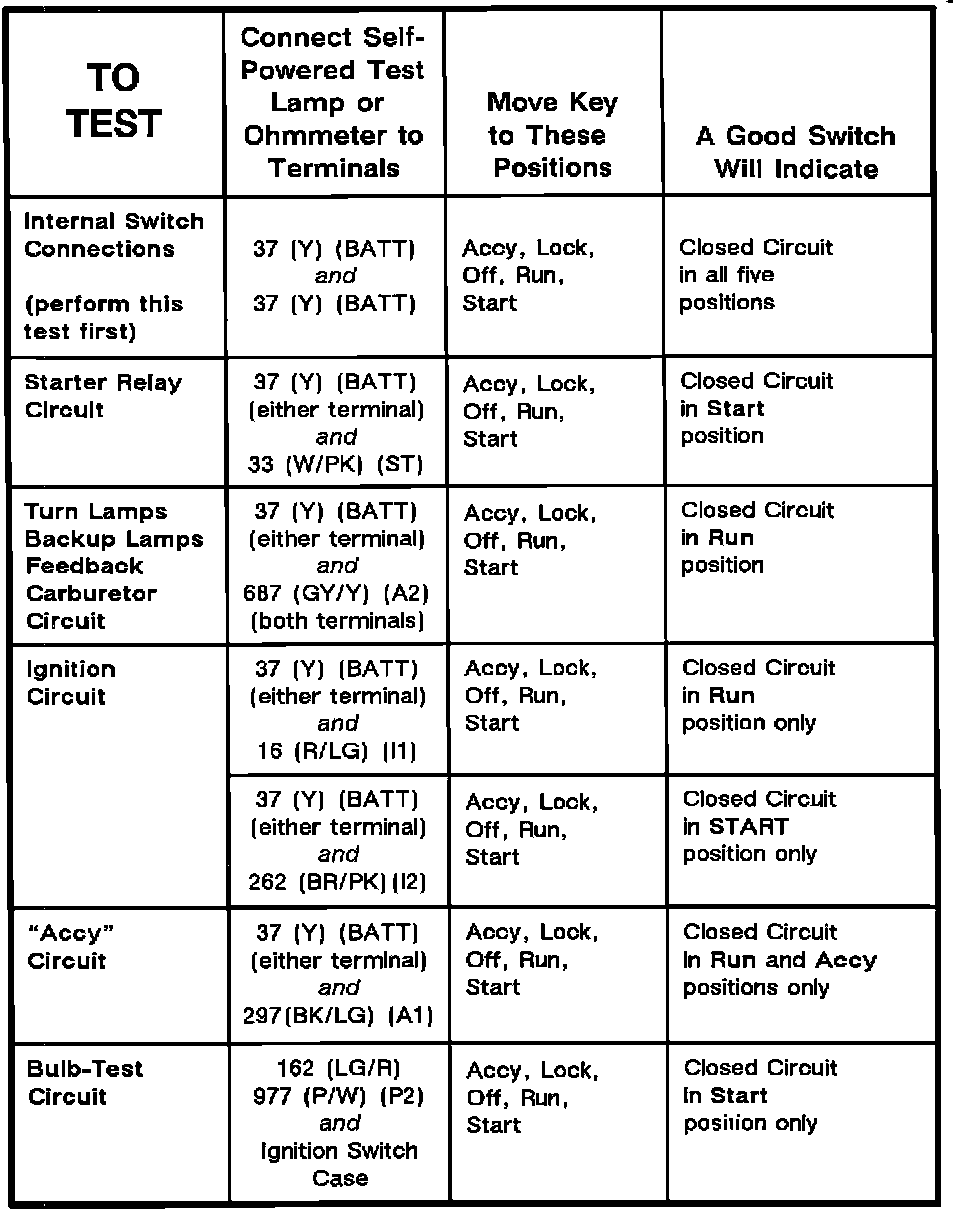

COMPONENT TESTING PROCEDURE


Component Testing Procedure:






TERMINAL IDENTIFICATION


Terminal Locations:






SCHEMATIC


Schematic:
