Home
>>
Ford
>>
1992
>>
Tempo L4-140 2.3L HSC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
Connector Locations
>>

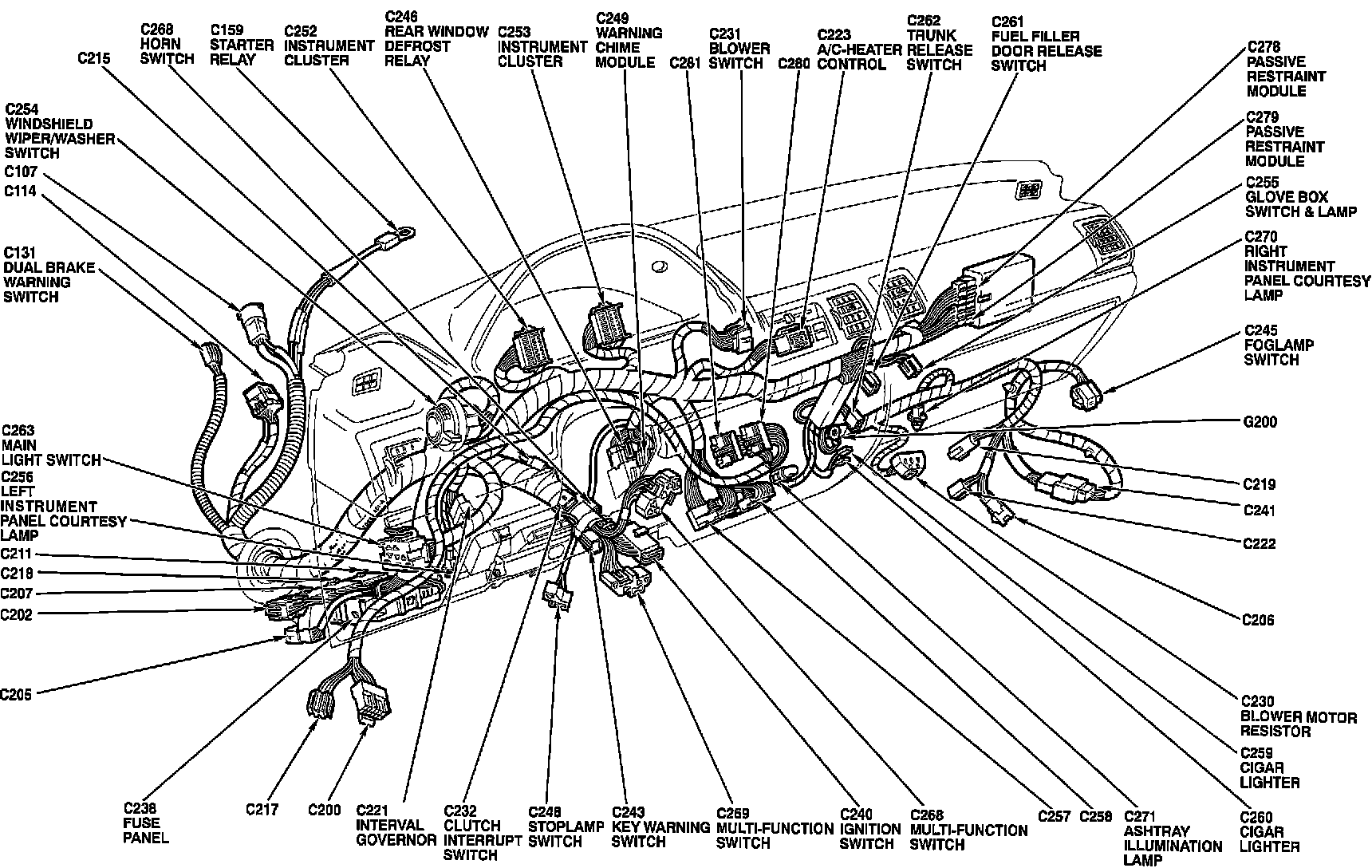

Instrument Panel View
Instrument Panel View

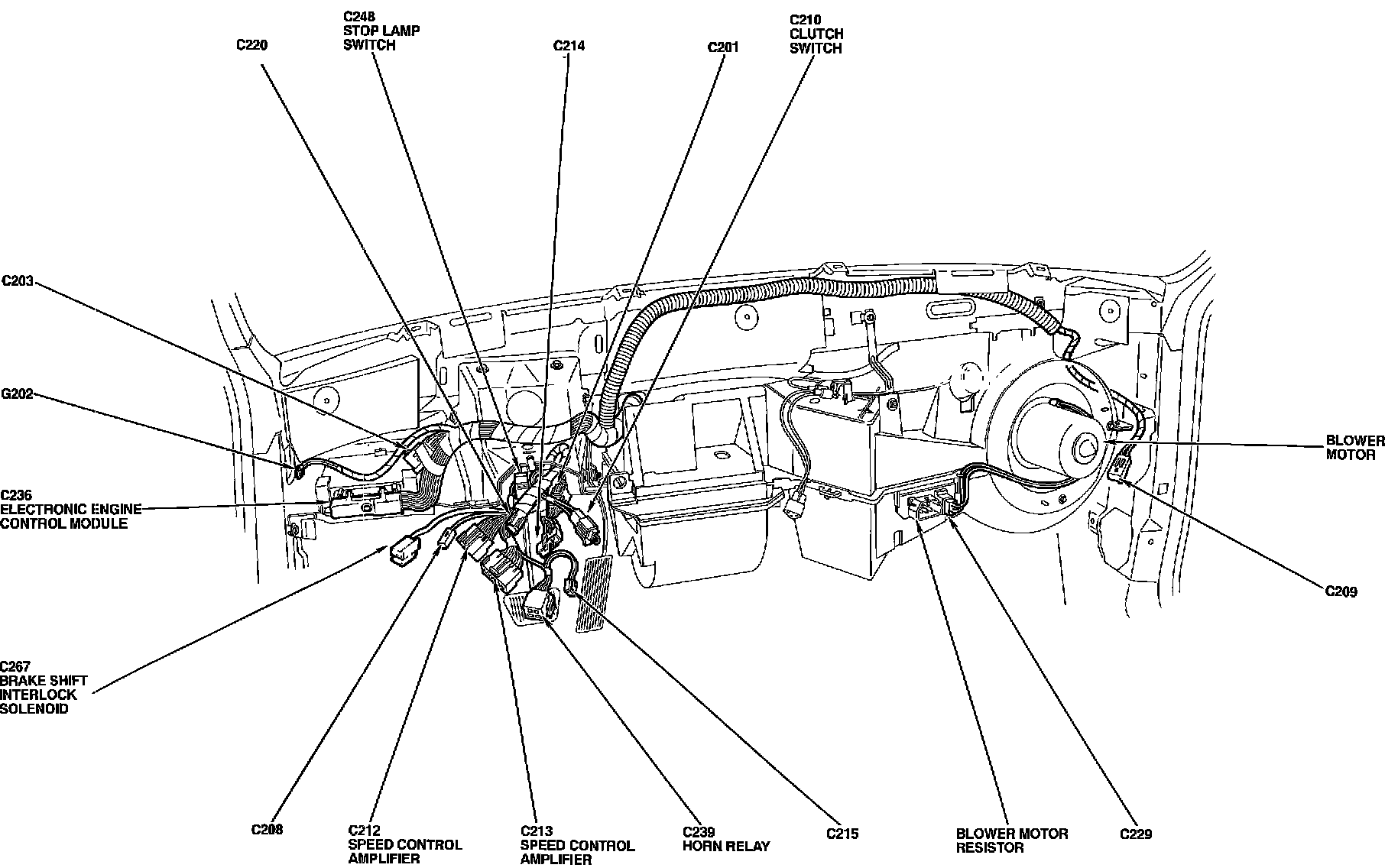

Component Location:
Component Location:
