Tempo L4-140 2.3L HSC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

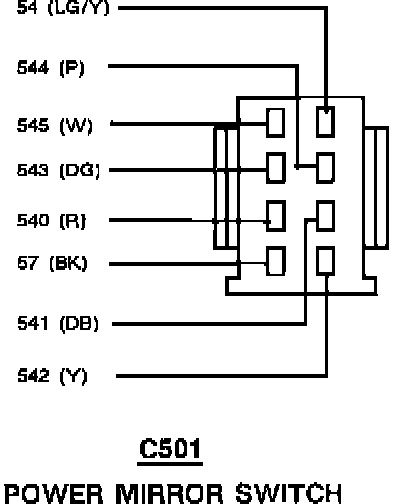

Power Mirror Switch
Power Mirror Switch
Connector Faces/Pinout Charts:
