Power Window Switch: Testing and Inspection

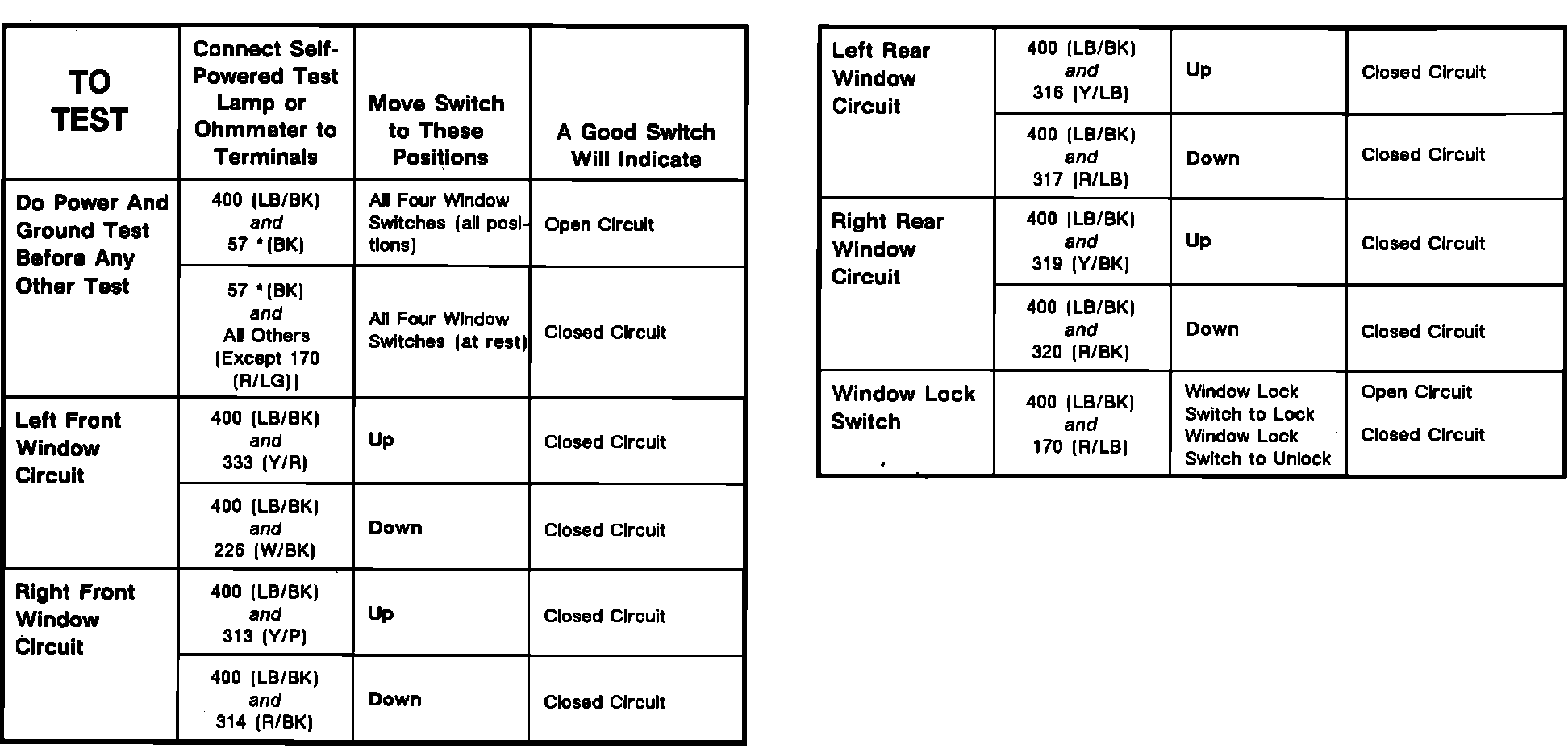

COMPONENT TESTING PROCEDURE

Component Testing Procedures:






TERMINAL IDENTIFICATION

Terminal Locations:

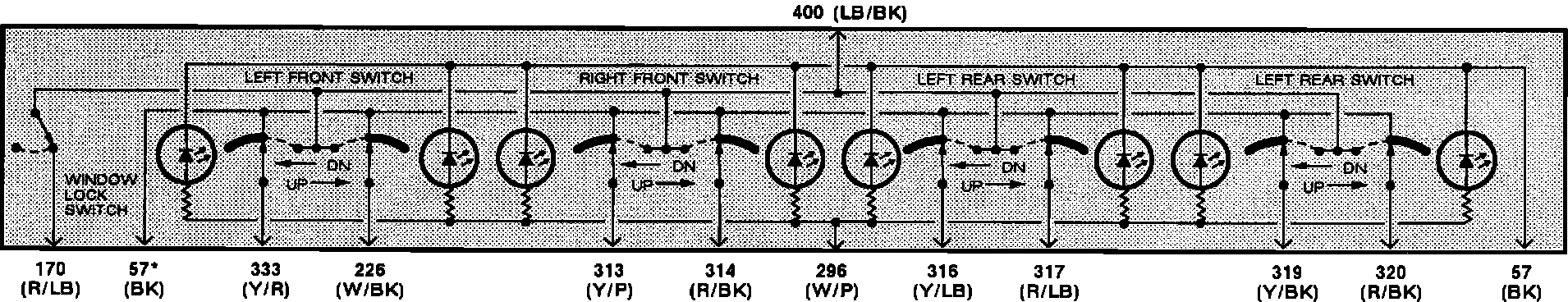

SCHEMATIC

Schematic:
