Ignition Switch: Testing and Inspection

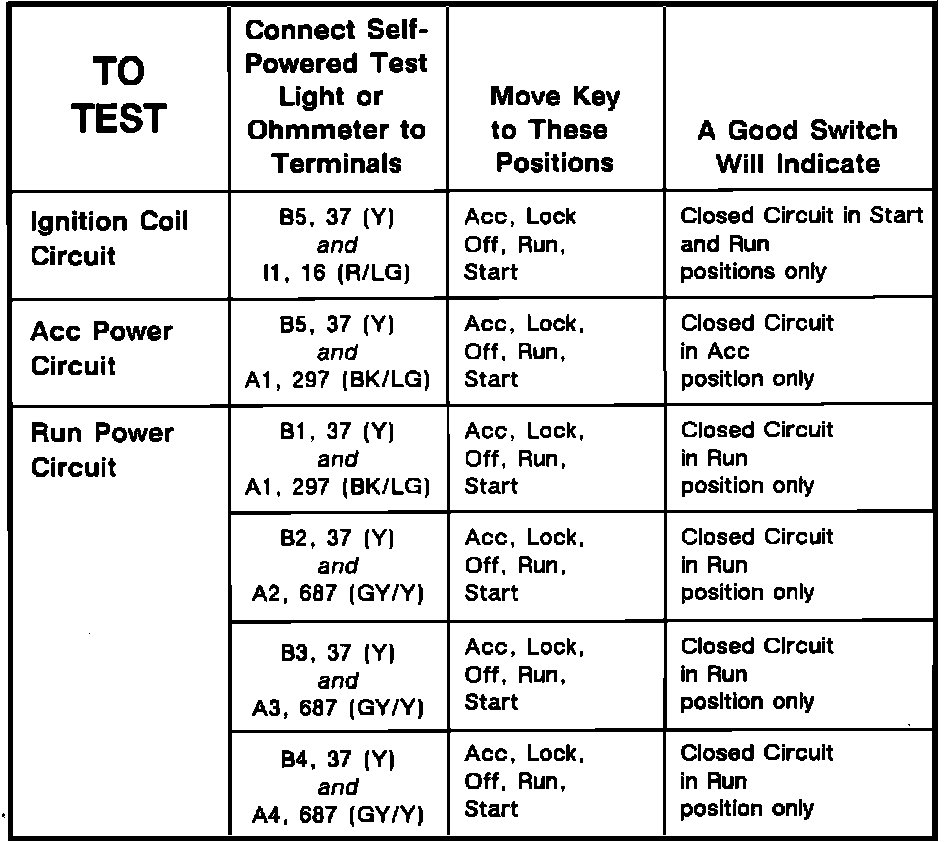

COMPONENT TESTING PROCEDURE

Component Testing Procedure:




Component Testing Procedure:






TERMINAL IDENTIFICATION

Terminal Location:

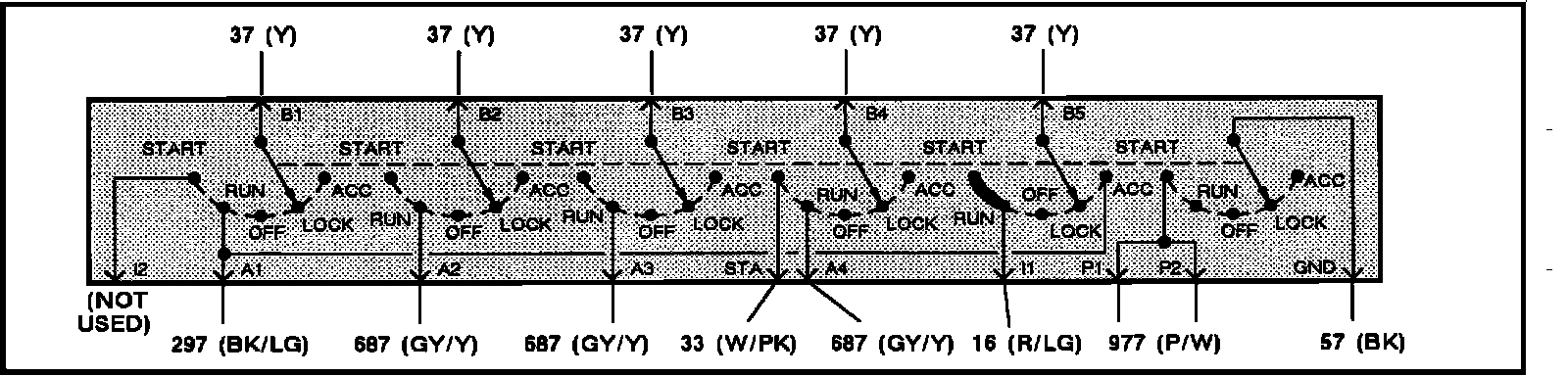

SCHEMATIC

Schematic:
