Home >> Ford >> 1992 >> Taurus V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lighting and Horns >> Combination Switch >> Multi-Function Switch Component Side

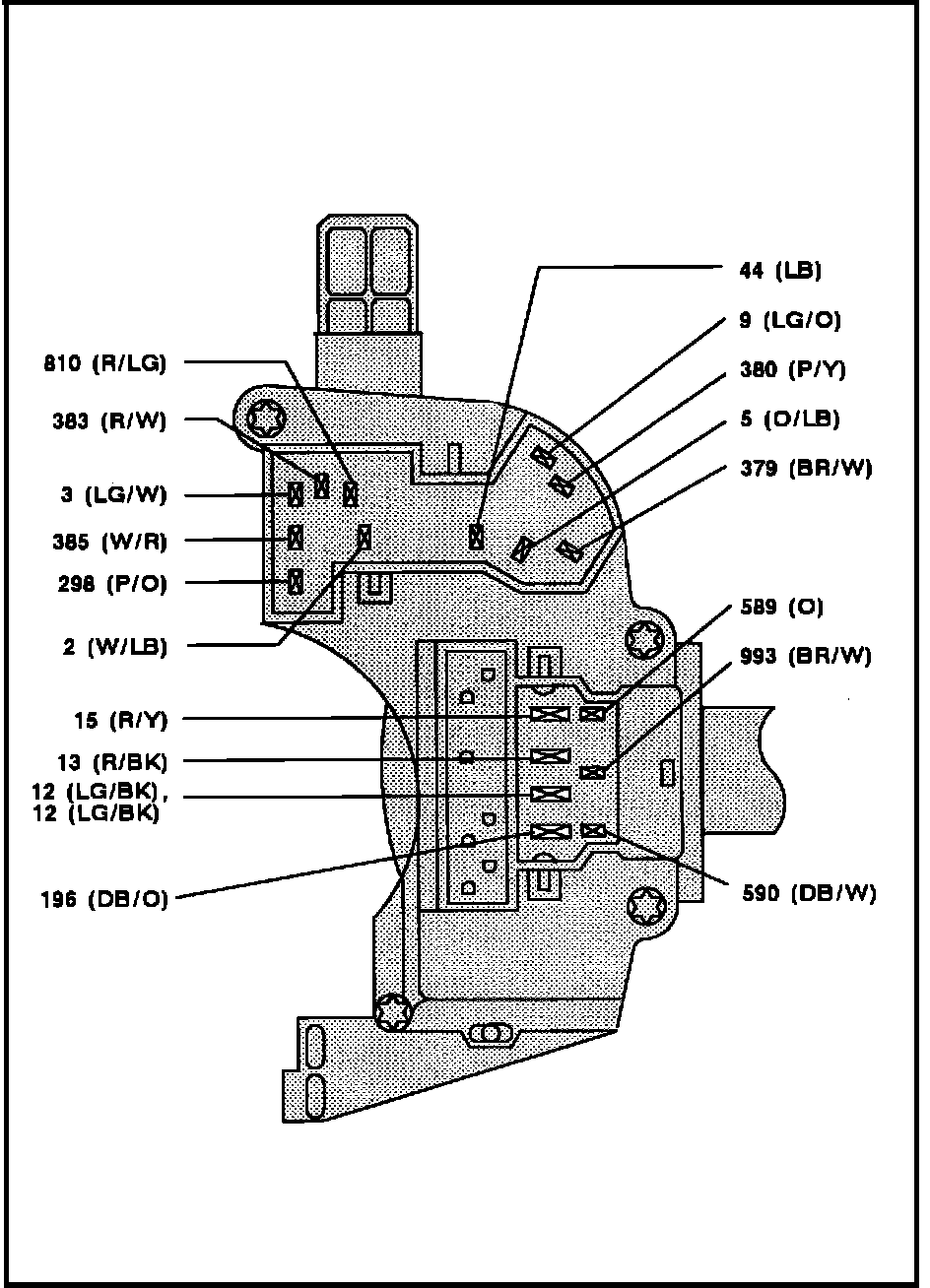

Multi-Function Switch Component Side

Terminals:
