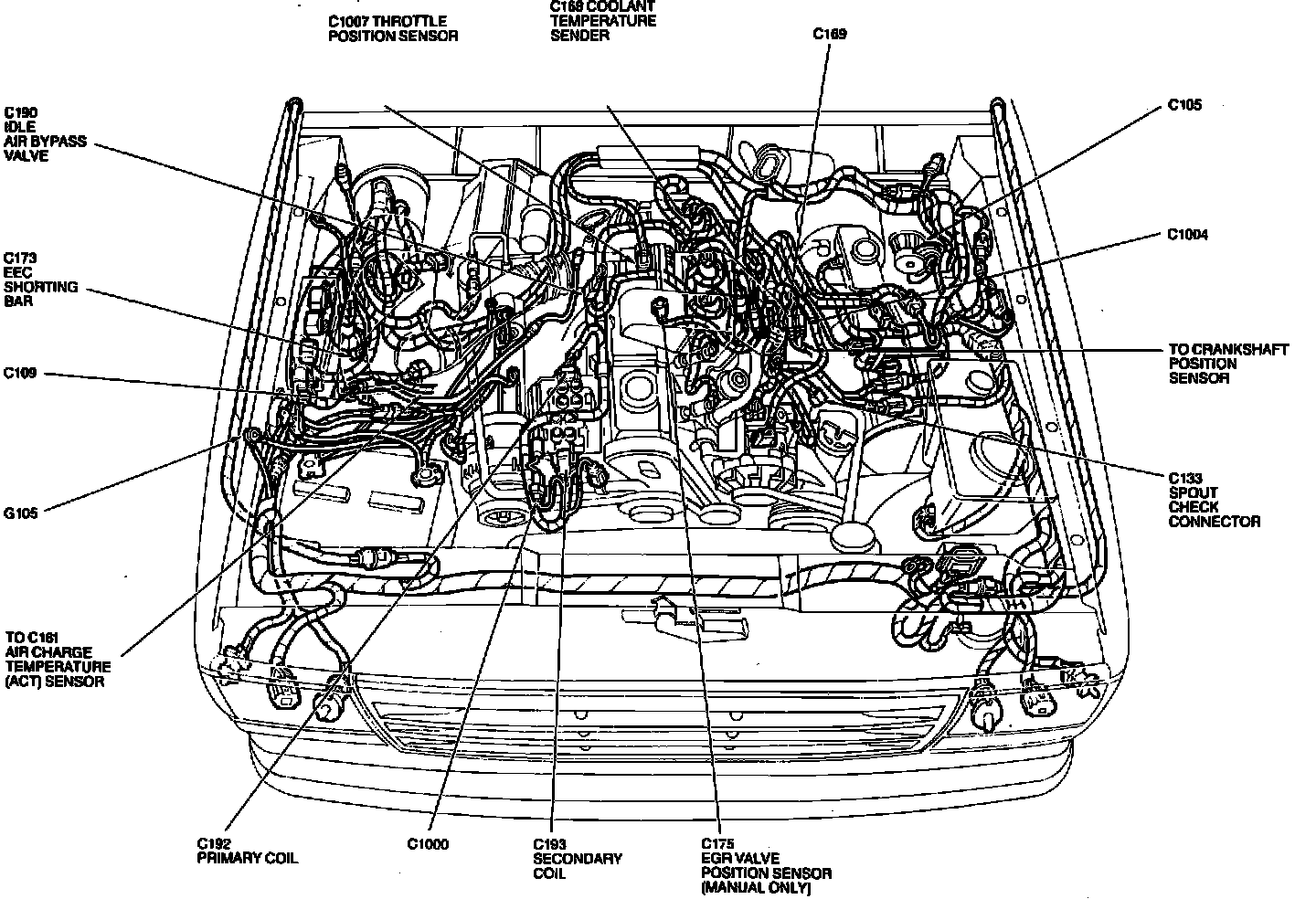

EGR Valve Position Sensor: Locations

Engine Compartment Components.:




Top LH Side Of Engine

Applicable to: 2.3L/4-140
