Home >> Ford >> 1992 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Main Fuse Panel

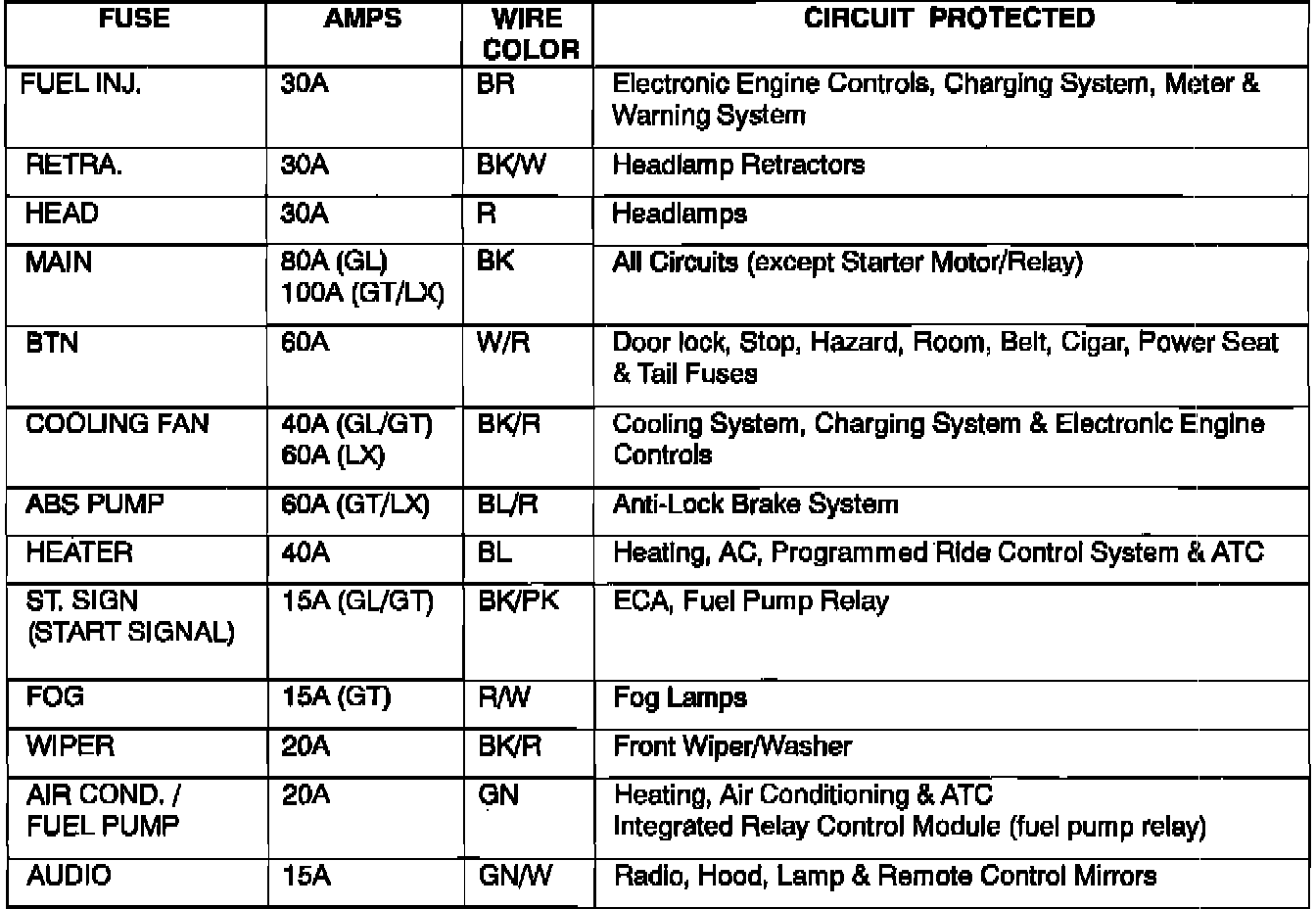

Main Fuse Panel

Main Fuse Panel:



Circuit Protector:
