Home >> Ford >> 1992 >> Probe L4-133 2.2L SOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Relays and Modules - A/T >> Control Module >> Locations >> GL Models

GL Models

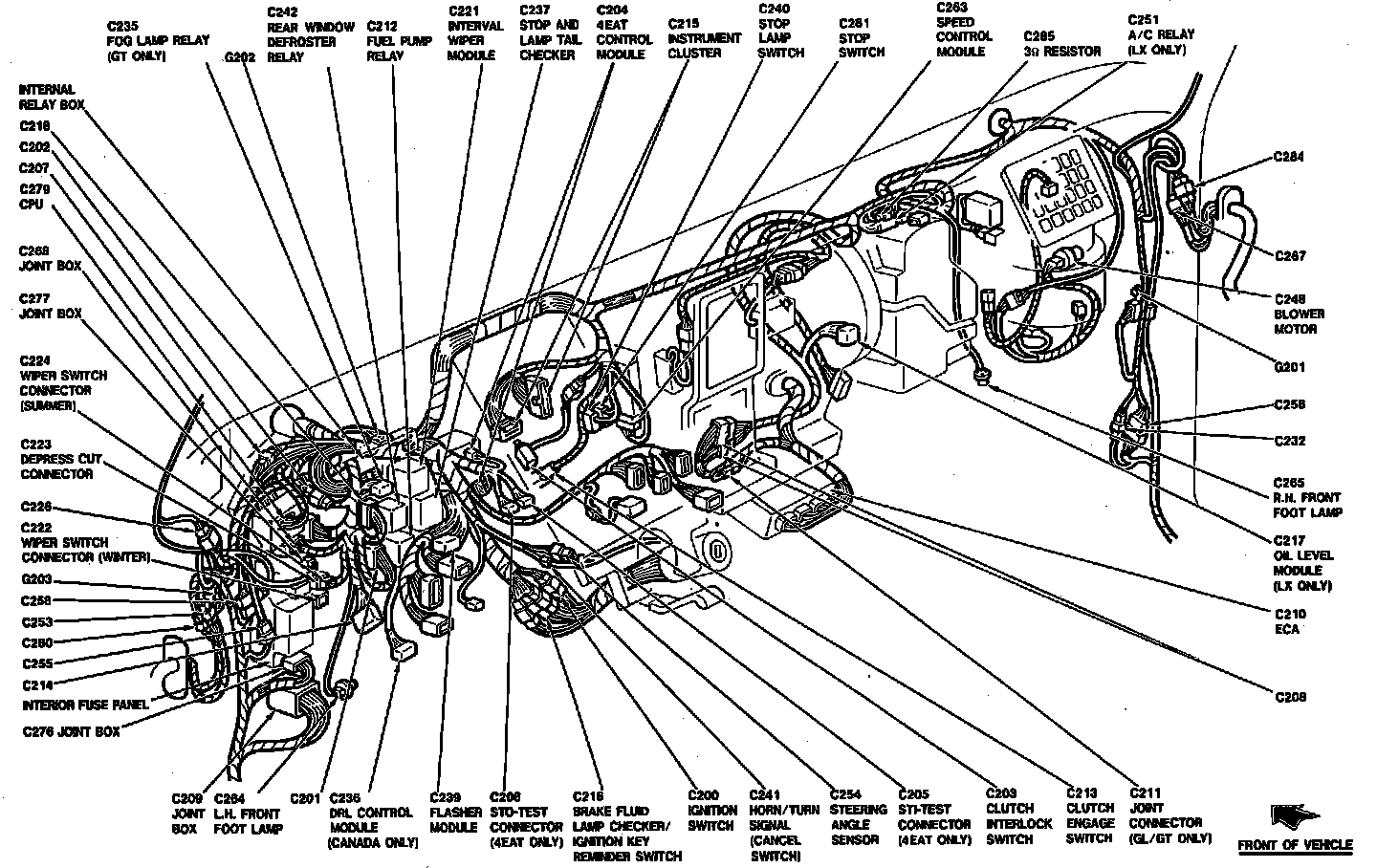

Instrument Panel Component Locations:




Under Center Of I/P
