LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
1992
>>
Probe L4-133 2.2L SOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Suspension Control Module
Suspension Control Module

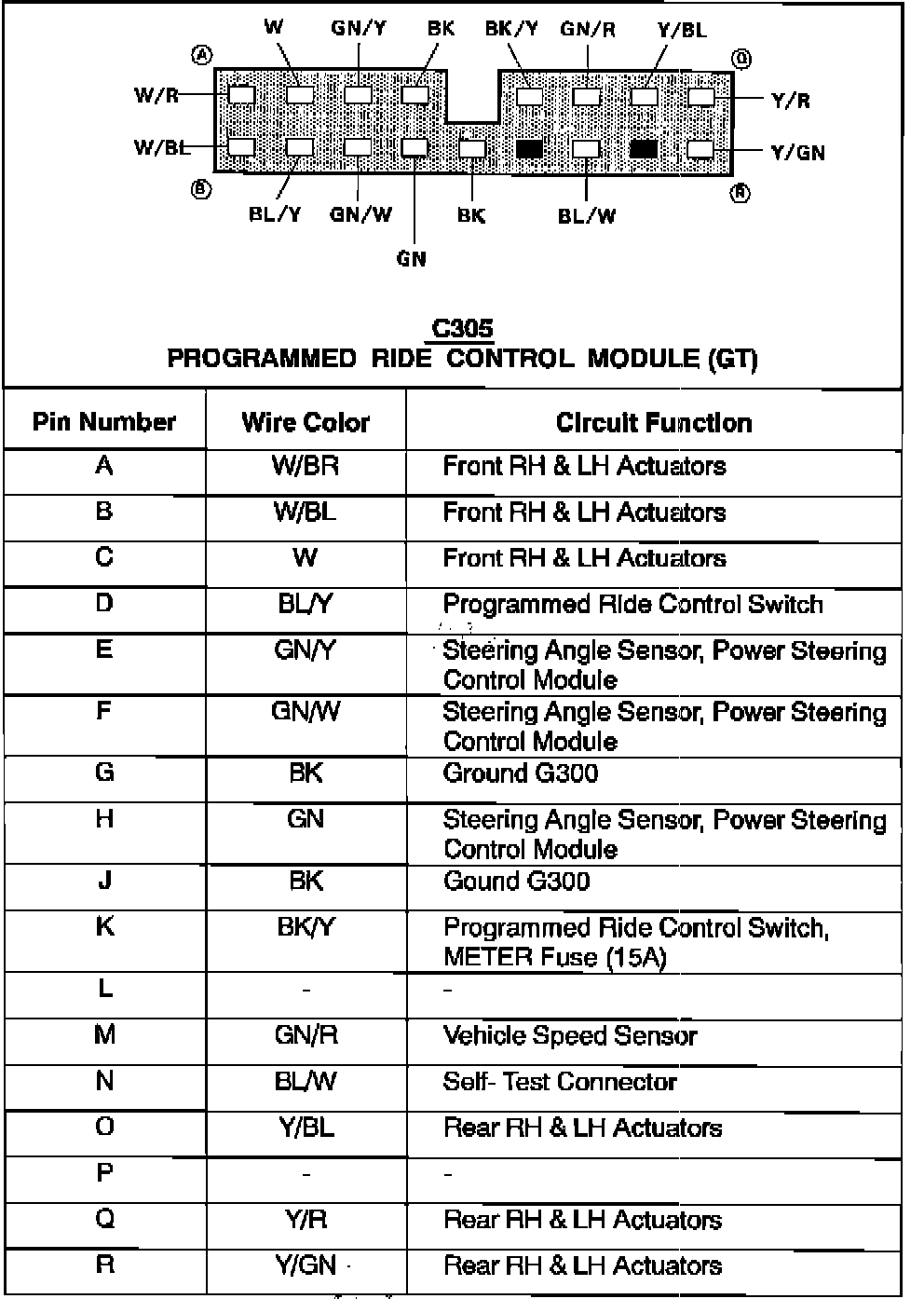

Programmed Ride Control Module:
