Connector Views
>>
Power Window Switch
>>

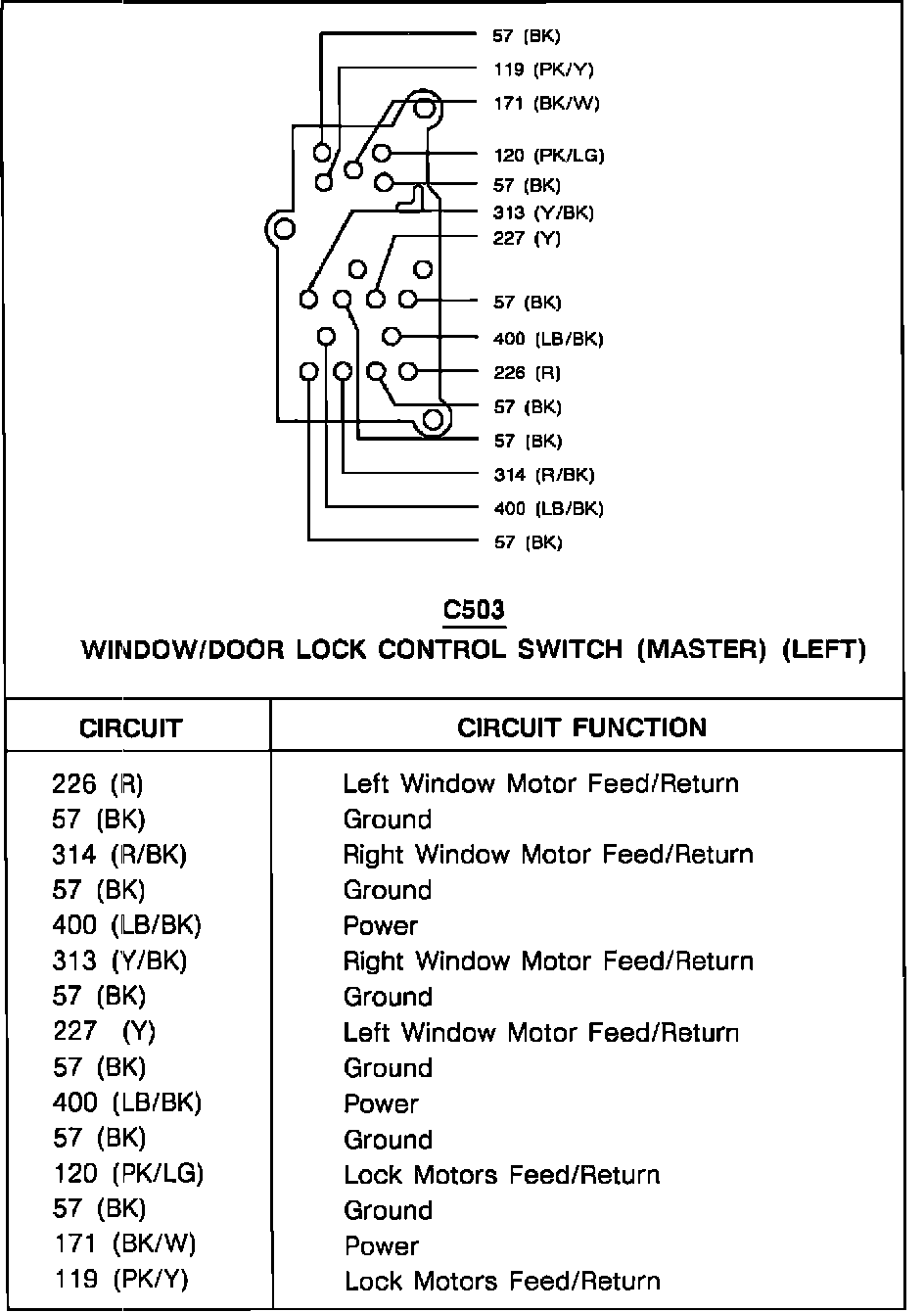

Master Window Control Switch
Master Window Control Switch
Connector Face/Pinout Charts:
