F 250 2WD Pickup V8-7.3L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module, A/T
Control Module, A/T

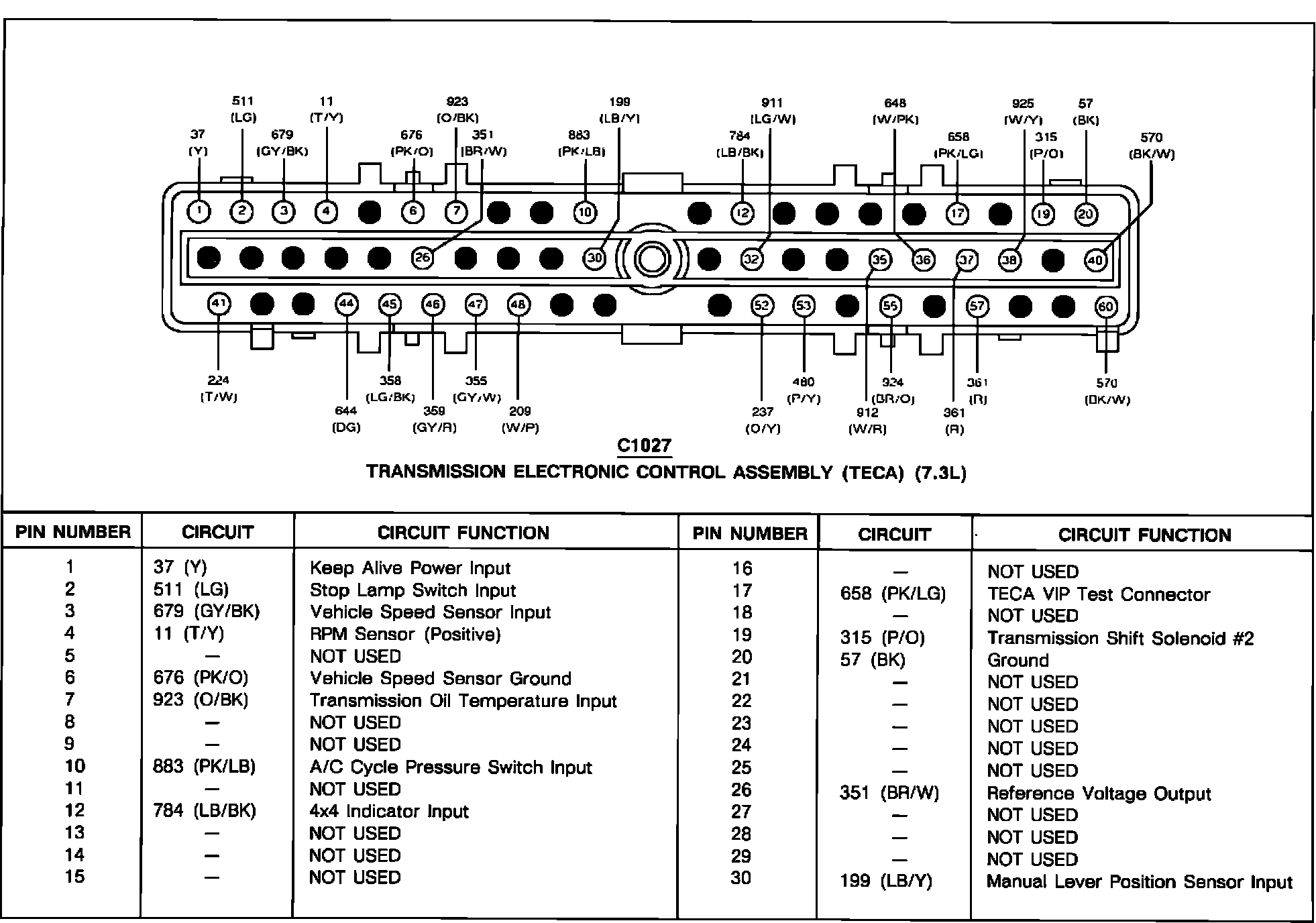

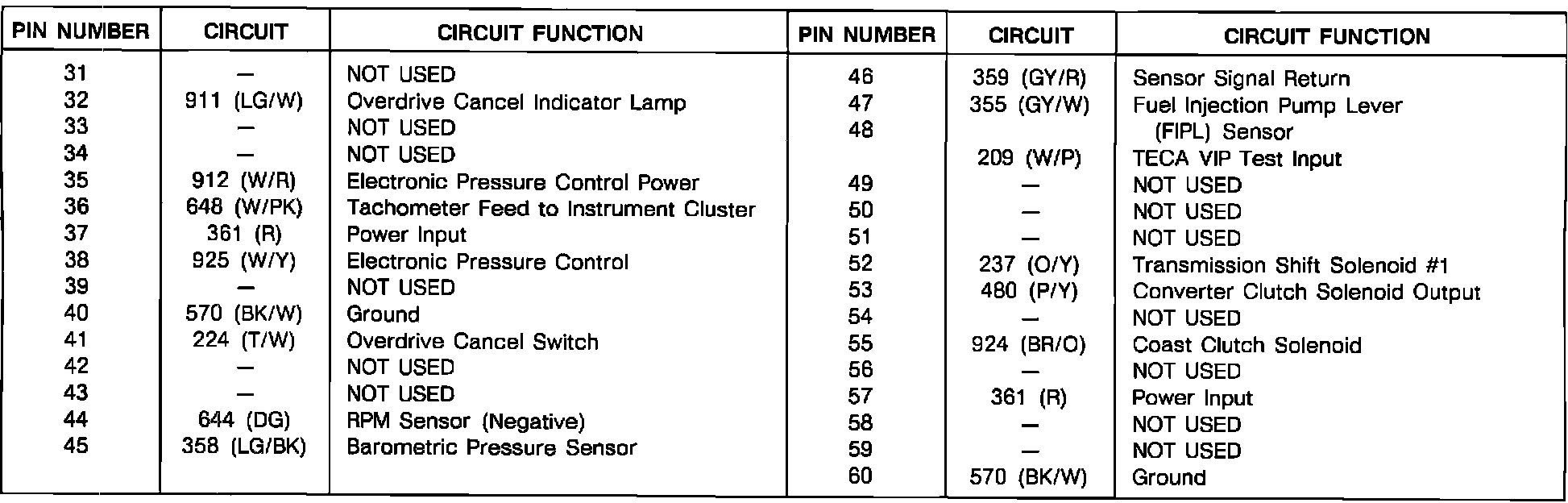

Connector Face/Pinout Charts:
Connector Face/Pinout Charts:
