Explorer 2WD V6-245 4.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Fuse
>>
Fuse 12
Fuse 12

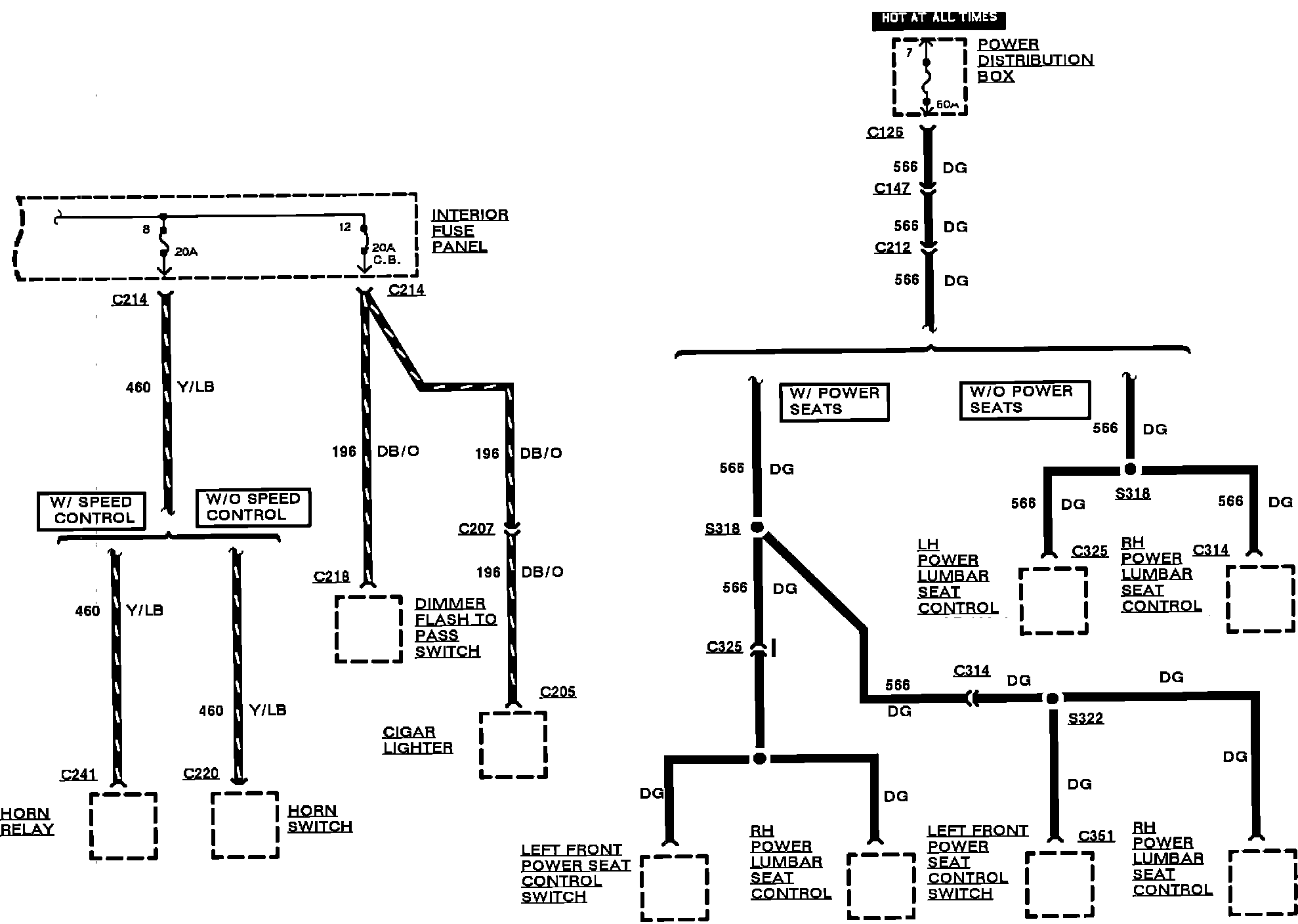

Power Distribution:

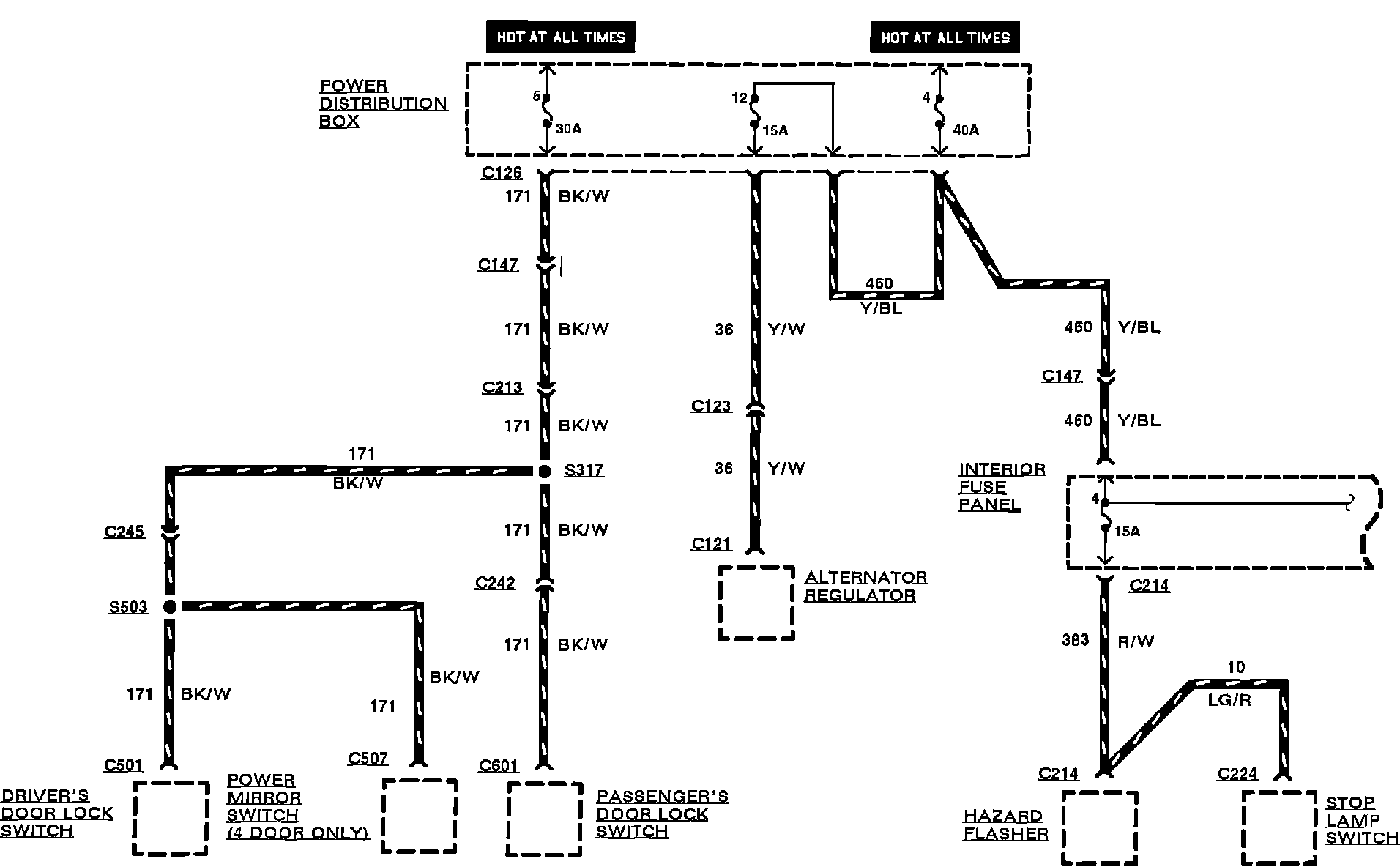

Power Distribution:
