Home >> Ford >> 1992 >> Escort L4-116 1.9L SOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Control Module >> Locations

Control Module: Locations

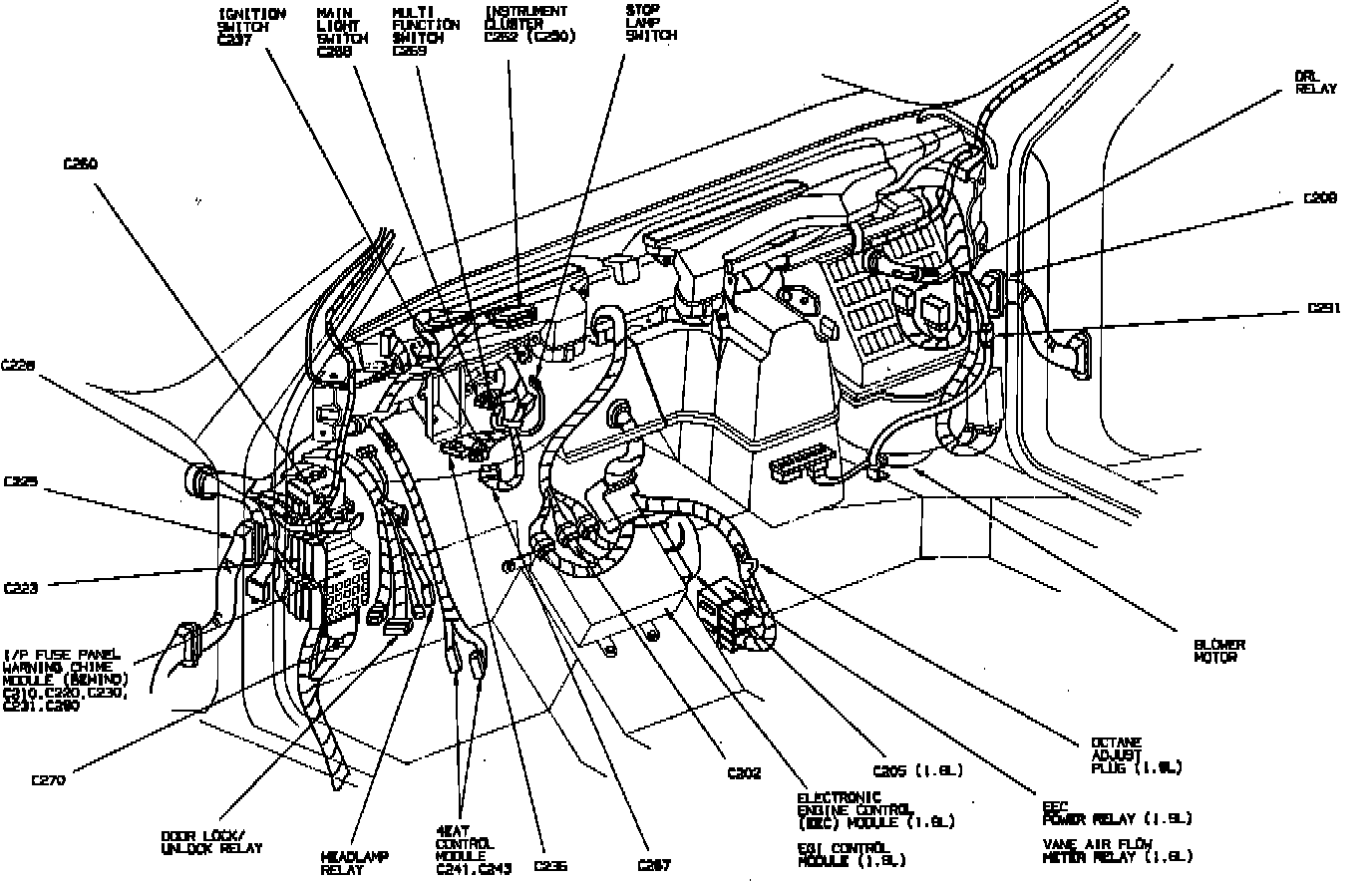

I/P Components.:




Behind LH Side Of I/P

Applicable to: 1991

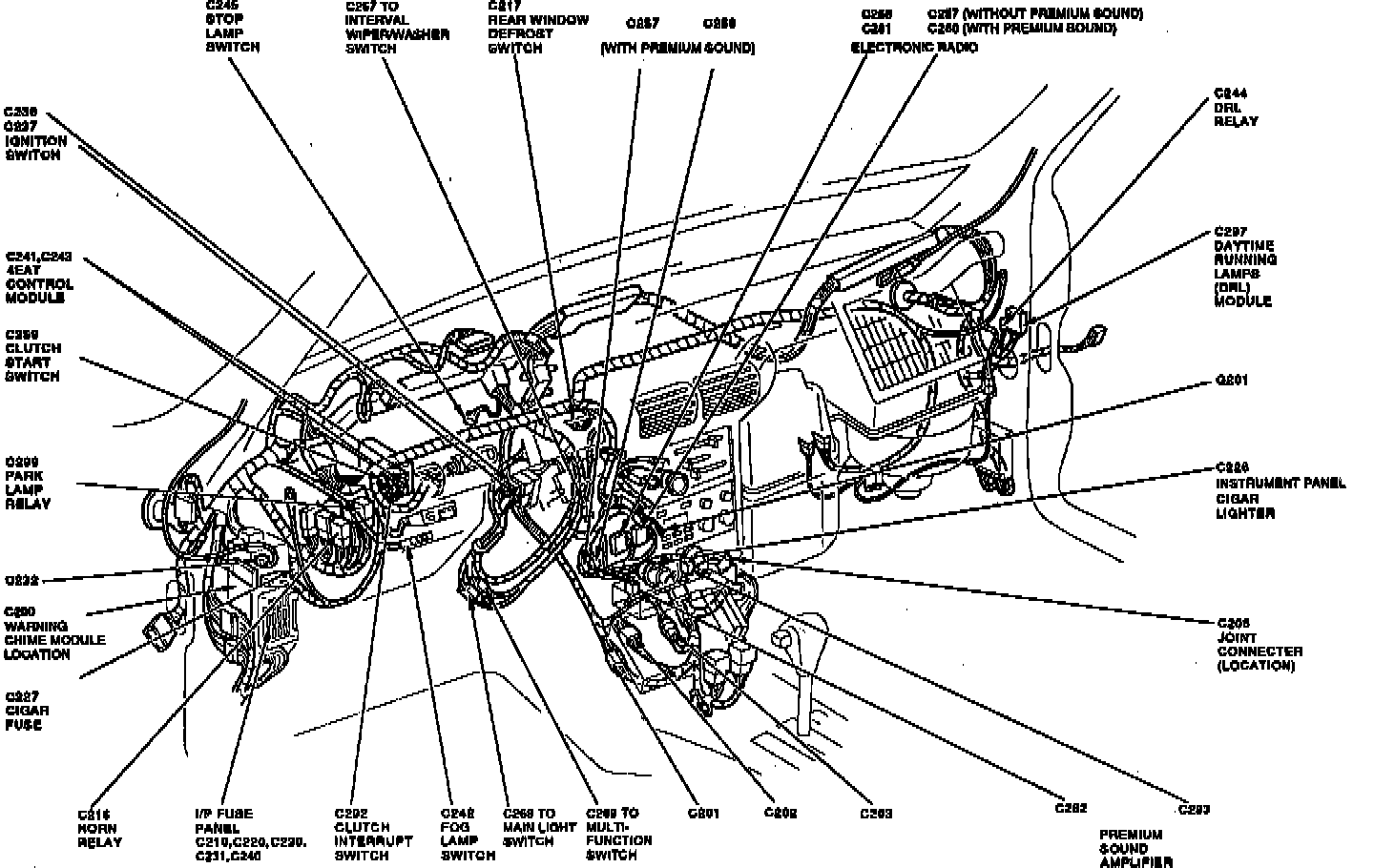

I/P Components.:




Behind LH Side Of I/P

Applicable to: 1992
