Engine Control Module
Engine Control Module

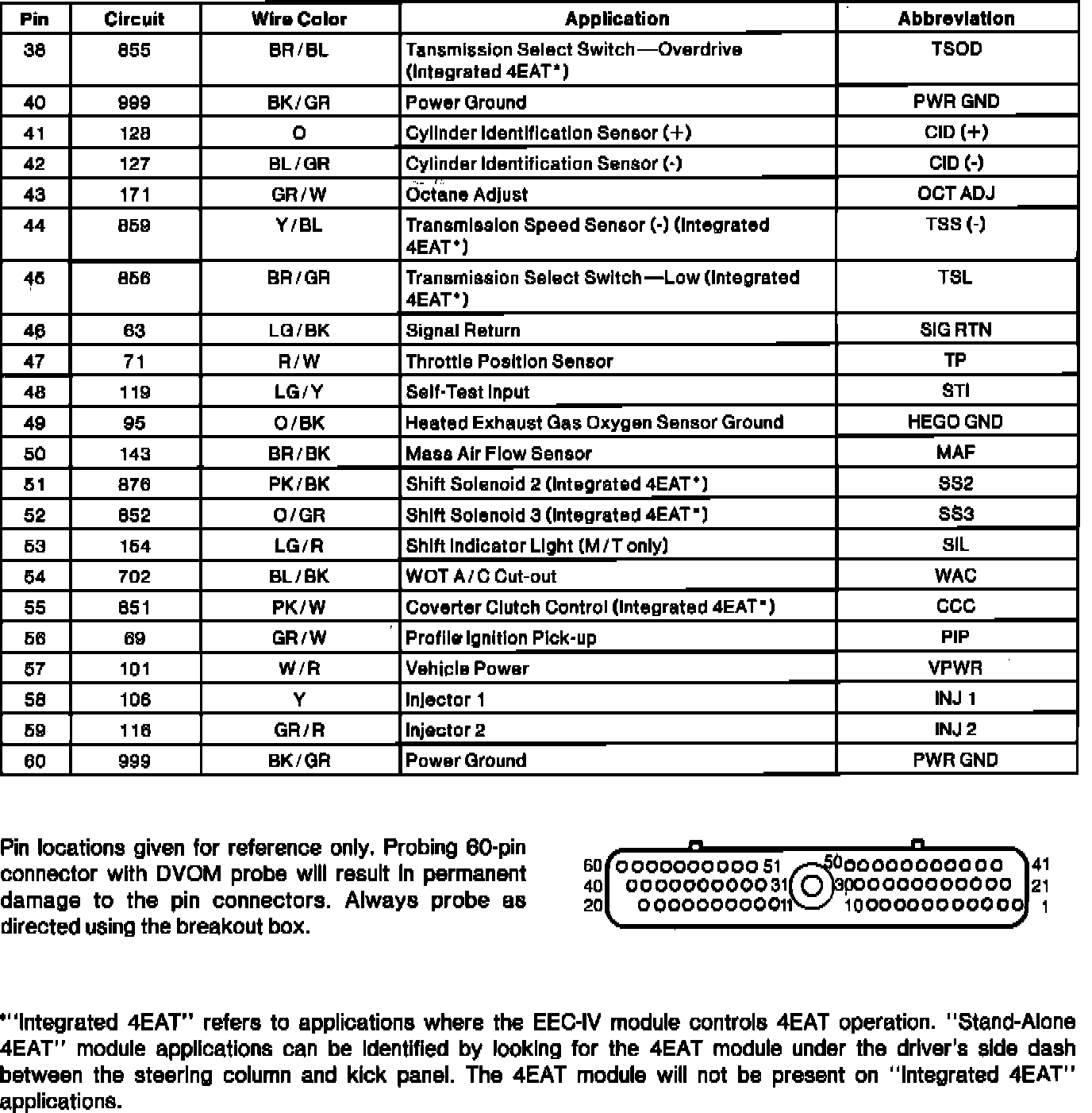

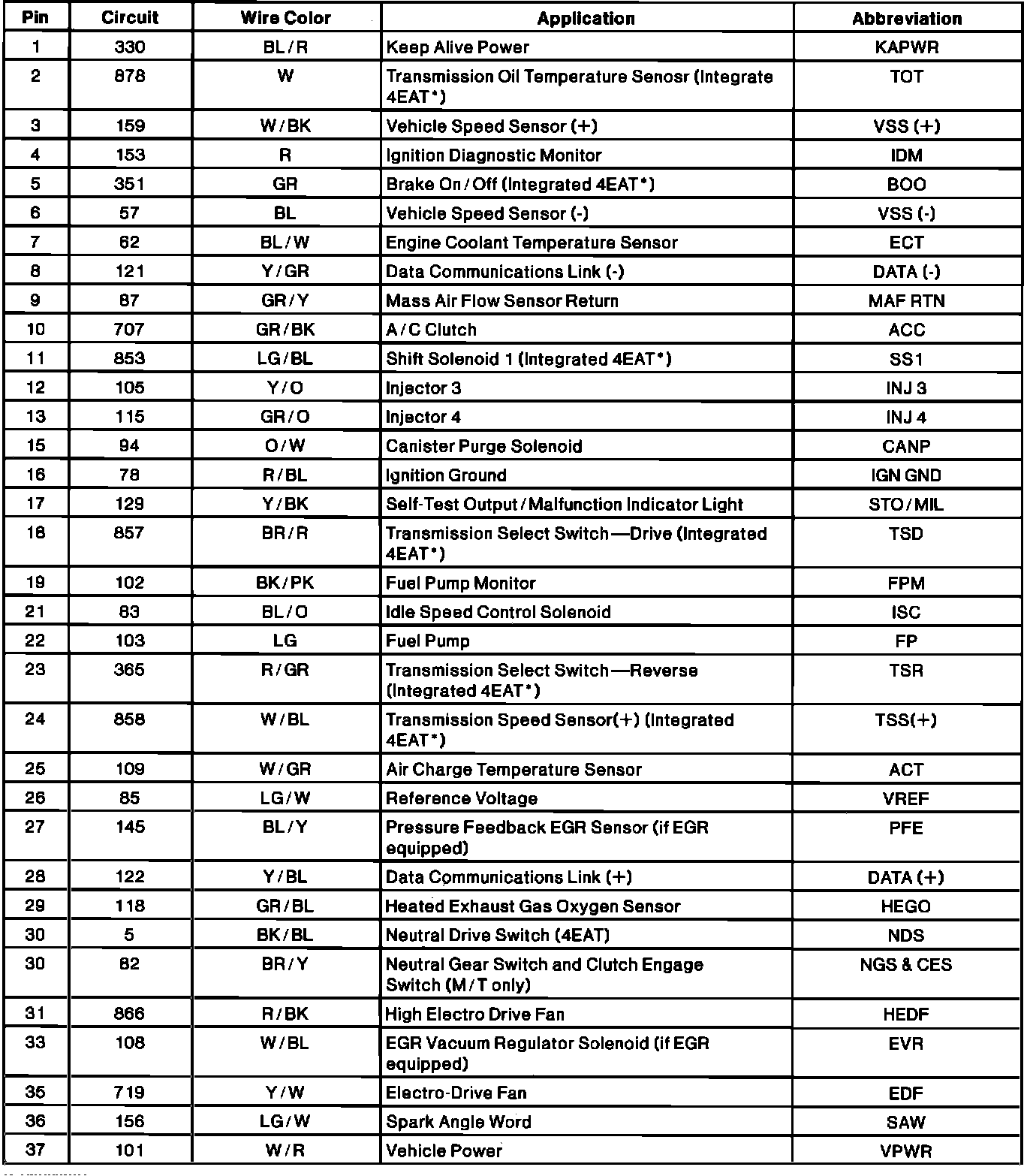

Electronic Engine Controller (EEC) Connector Pinout:
Electronic Engine Controller (EEC) Connector Pinout:
