Ford
>>
1992
>>
Escort L4-116 1.9L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module, A/T
Control Module, A/T

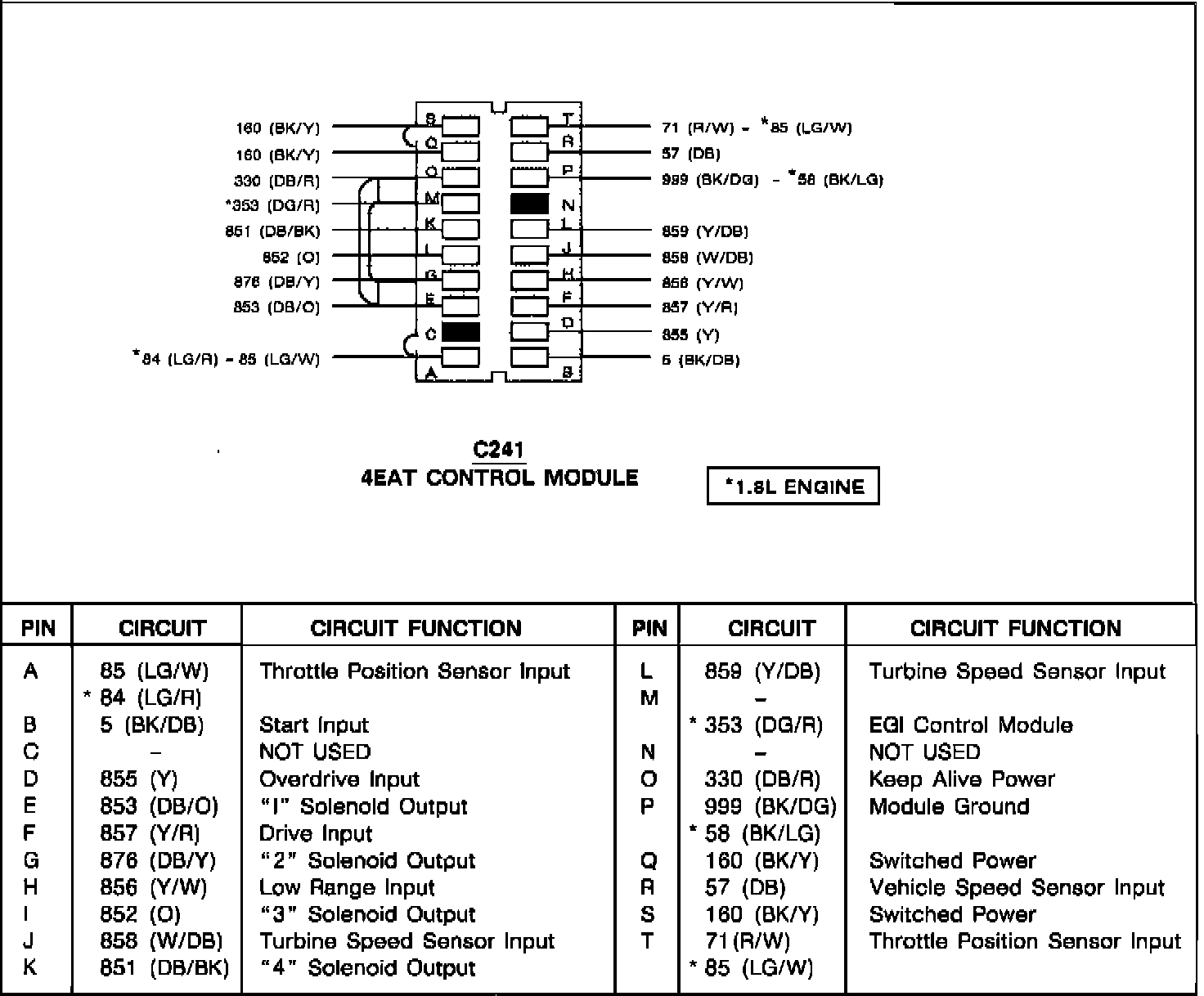

Control Module Pinout:
Connector Faces/Pinout Charts:
Connector Faces/Pinout Charts:
