Home >> Ford >> 1992 >> E 350 Van V8-7.3L DSL >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Control Module >> Diagrams

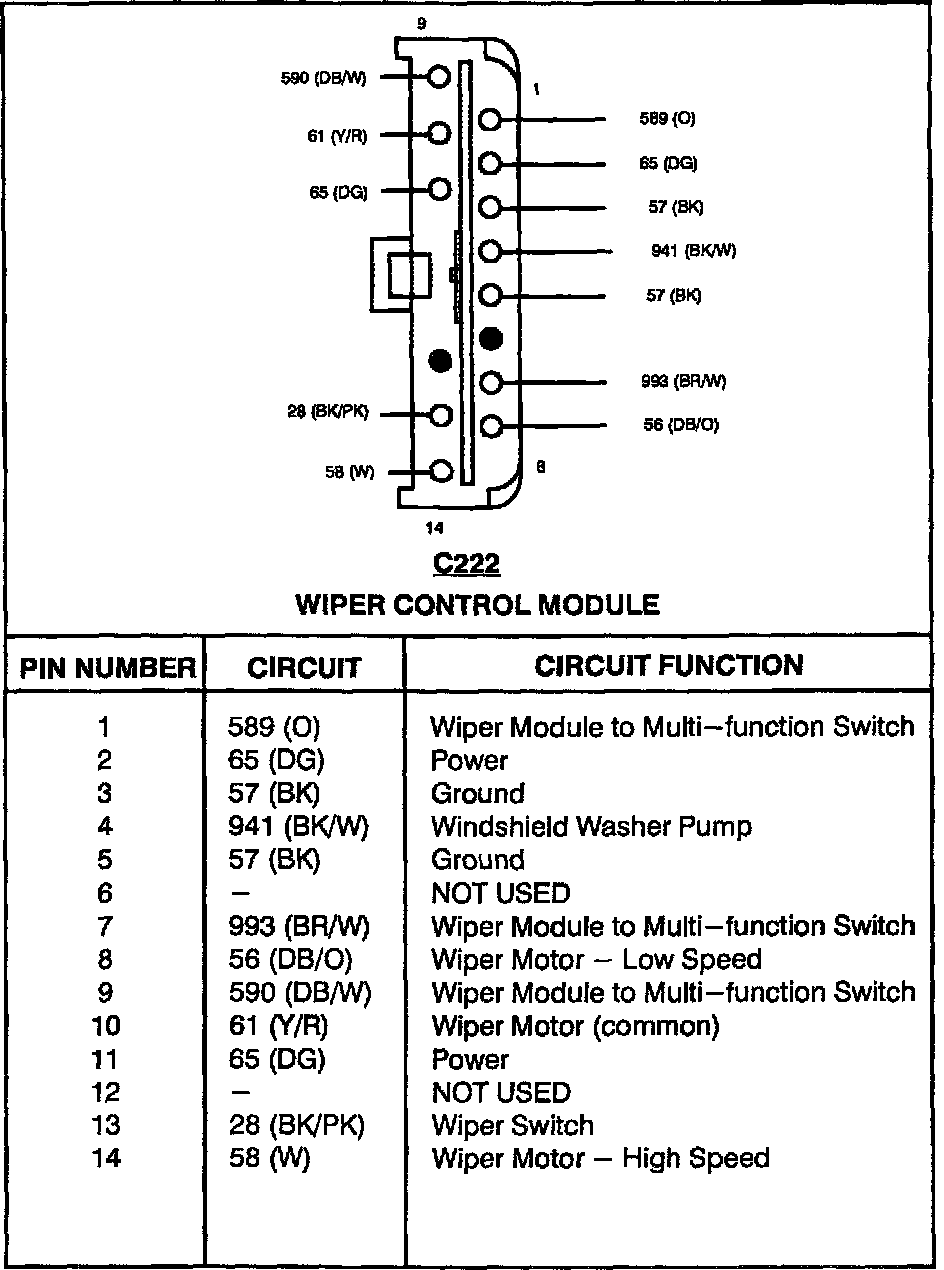

Wiper Control Module: Diagrams

Connector Faces/Pinout Charts:
