Ignition Switch: Testing and Inspection

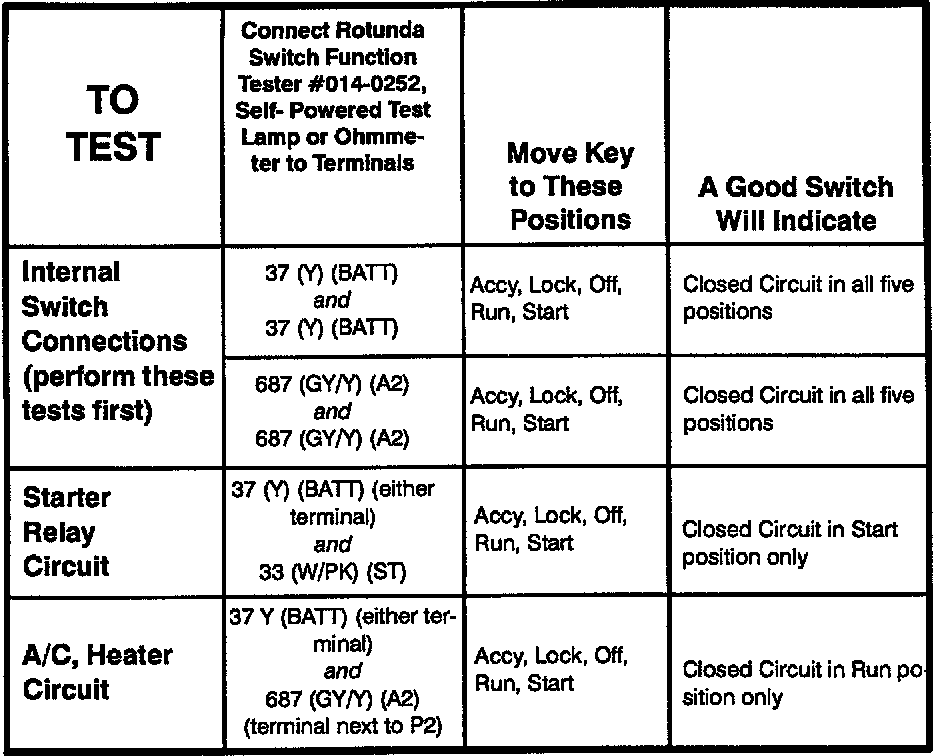

COMPONENT TESTING PROCEDURE

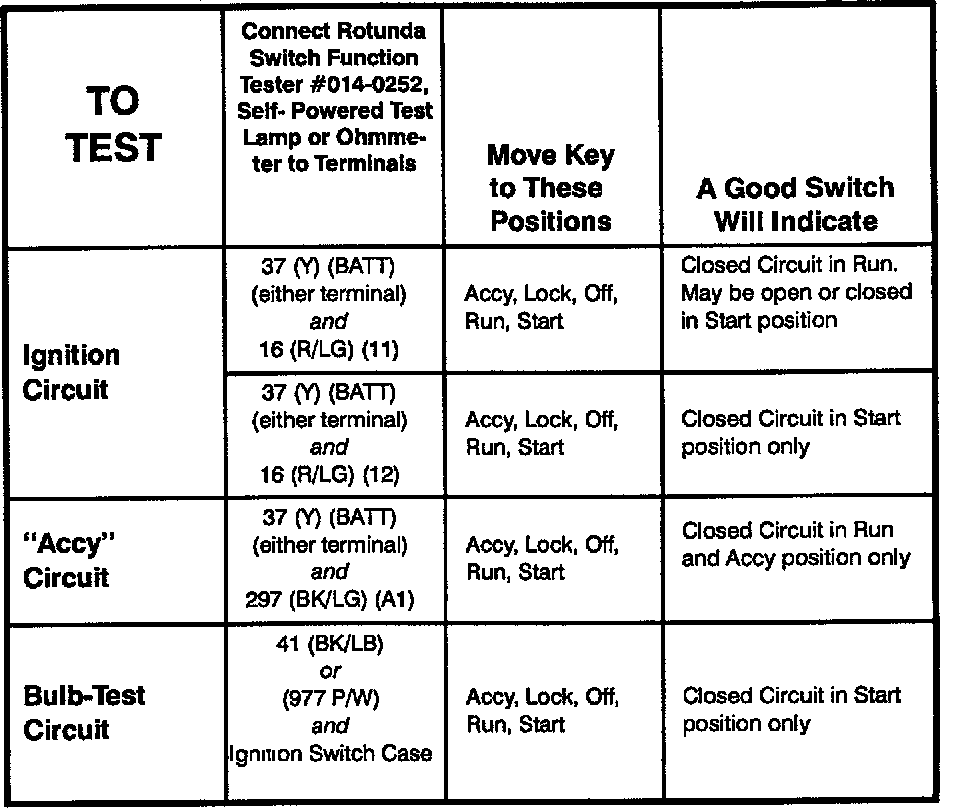

Component Testing Procedure:




Component Testing Procedure:






TERMINAL IDENTIFICATION

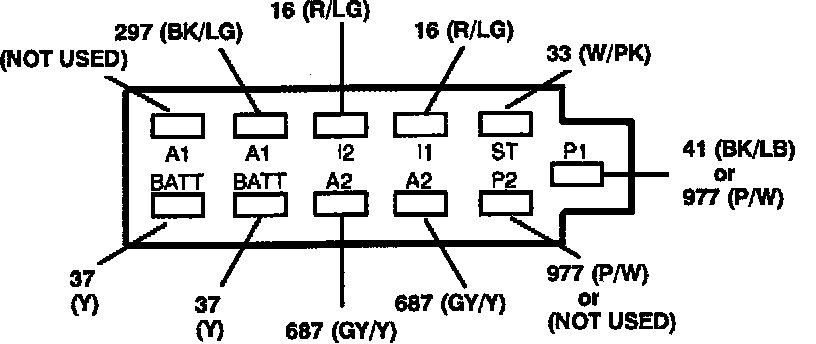

Terminal Locations:






SCHEMATIC

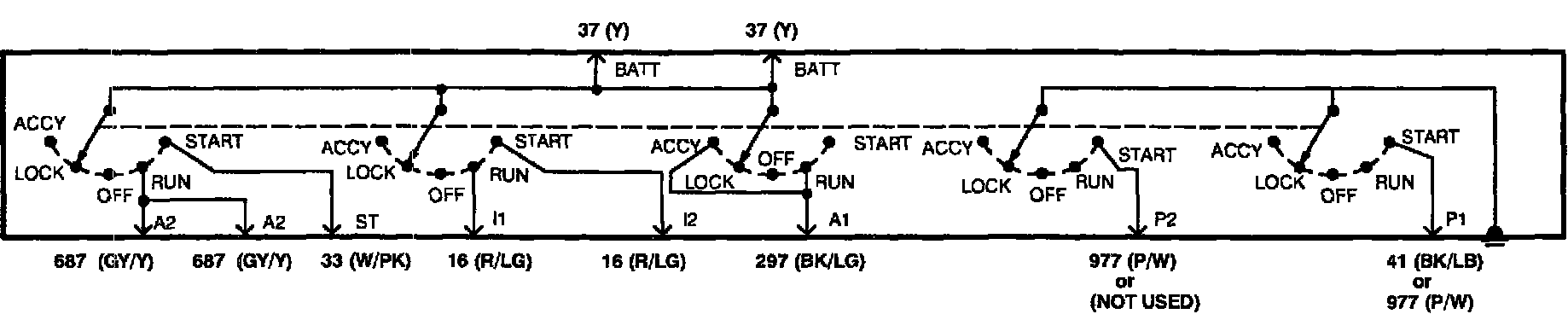

Schematic:
